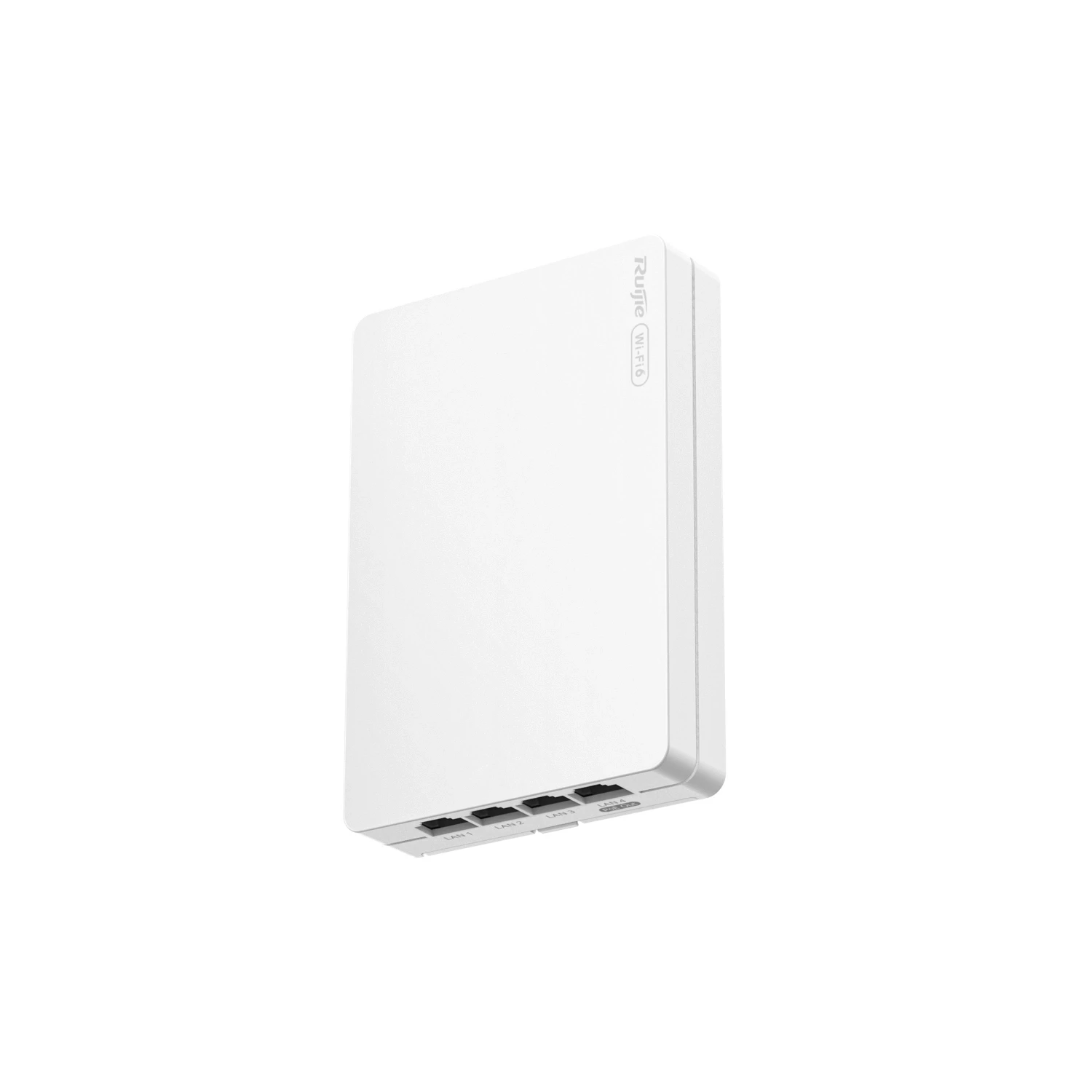

Reyee RG-RAP62-Wall AX3000 Dual-Band Wi-Fi 6 In-Wall Access Point White

Photo is representative

Reyee RG-RAP62-Wall AX3000 Dual-Band Wi-Fi 6 In-Wall Access Point White

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code RG-RAP62-WALL
GTIN
Stock status: In stock

priced individually

More arriving soon

Net price: £102.35

Gross price

£122.82

Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 30 day returns

Wall-plate AP that mounts directly into a standard junction box. Takes PoE/PoE+ in — no local PSU required. Delivers Wi-Fi 6 across 2.4 GHz and 5 GHz with 2x2 MU-MIMO on both bands.

Five Gigabit ports on the face make it a useful drop point for a desk or AV rack. One port supports PoE Out at up to 10 W (802.3at source required), handy for powering a small device downstream.

  • Max wireless throughput: 2974 Mbps (2401 Mbps / 5 GHz + 573 Mbps / 2.4 GHz)
  • Max clients: 256 (combined bands)
  • Max SSIDs: 8
  • Supports 802.11r/k/v roaming, VLAN, OFDMA, Beamforming
  • Managed via Ruijie Cloud, eWeb, or Reyee app
Specifications

Wi-Fi Standard

Wi-Fi 6 (IEEE 802.11ax), Wi-Fi 5 (IEEE 802.11ac), Wi-Fi 4 (IEEE 802.11a/b/g/n)

Frequency Bands

2.4 GHz, 5 GHz (dual-band)

Max Wireless Data Rate

2974 Mbps

5 GHz Data Rate

2401 Mbps

2.4 GHz Data Rate

573 Mbps

Spatial Streams

2x2 MU-MIMO per band, 4 total

Antenna Gain (5 GHz)

5.40 dBi

Antenna Gain (2.4 GHz)

4.08 dBi

Gigabit Ethernet Ports

5 x 10/100/1000BASE-T

PoE In

IEEE 802.3af / 802.3at

PoE Out Ports

1

PoE Out Budget

10 W (802.3at source required)

Max Power Consumption

12 W (excluding PoE output)

Max Clients

256 (combined 2.4 GHz + 5 GHz)

Max SSIDs

8

VLAN

IEEE 802.1Q

Roaming

802.11k/v, 802.11r Fast Transition, L2/L3 Roaming, AI Roaming

OFDMA

Yes

Beamforming

Yes

Surge Protection

Ethernet port ±2 kV common mode

Mounting

Junction box

Dimensions (W x D x H)

86 mm x 23.5 mm x 125 mm (excluding mounting bracket)

Weight

≤ 0.33 kg (without packaging)

Operating Temperature

0°C to 40°C

Storage Temperature

–40°C to +70°C

Operating Humidity

5% RH to 95% RH (non-condensing)

MTBF

400,000 hours

Certifications

CE, CB, RoHS

Safety

EN 62368-1, IEC 62368-1

Colour

White
