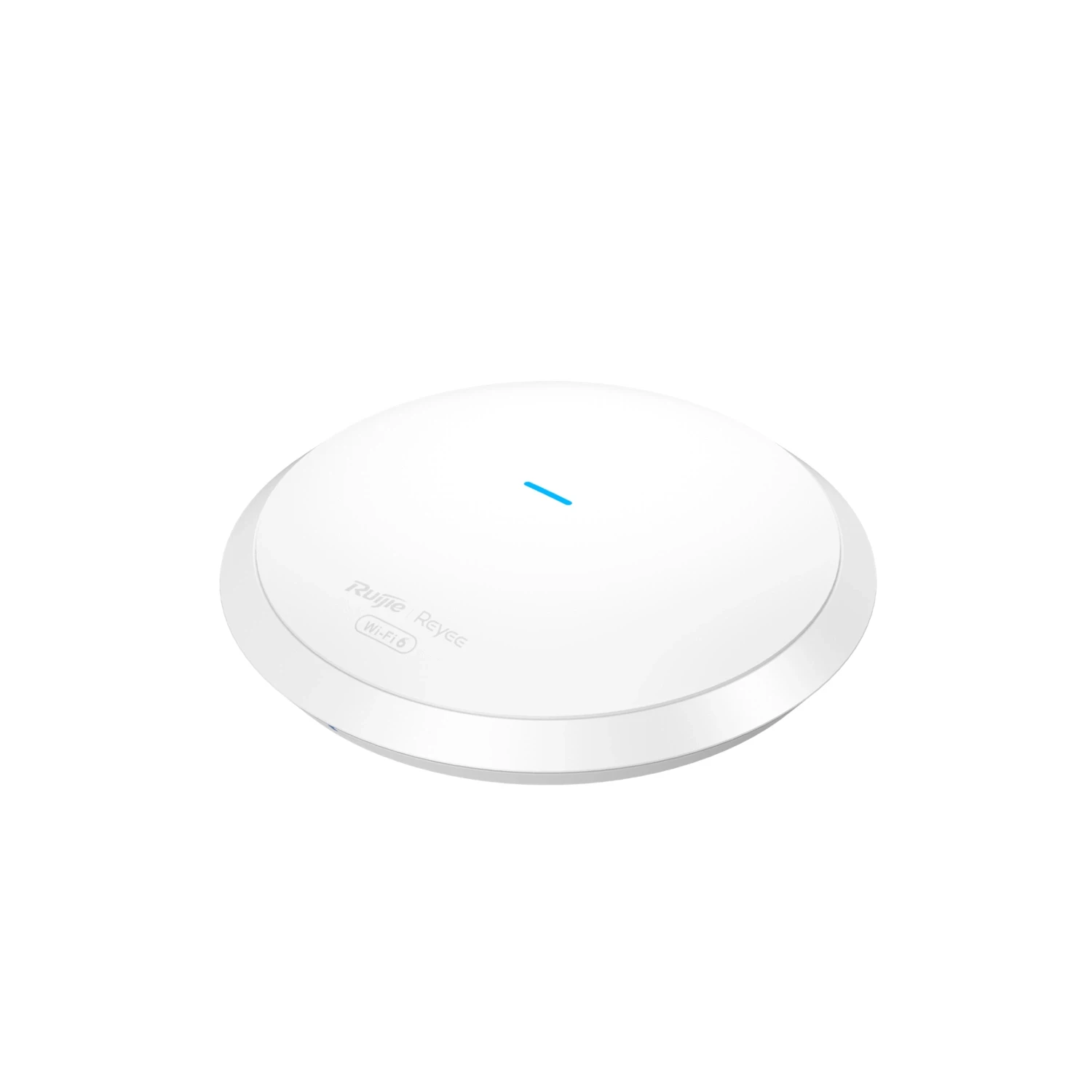

Reyee RG-RAP62 AX1800 Dual Band Wi-Fi 6 Ceiling Mount Access Point

Photo is representative

Reyee RG-RAP62 AX1800 Dual Band Wi-Fi 6 Ceiling Mount Access Point

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code RG-RAP62
GTIN
Stock status: In stock

priced individually

More arriving soon

Net price: £97.30

Gross price

£116.76

Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 30 day returns

Dual-band Wi-Fi 6 ceiling AP for SMB installs. Runs 5 GHz and 2.4 GHz concurrently with 2x2 MIMO on both bands. Powers via 802.3at/af PoE — no separate PSU needed. Supports up to 100 associated clients (11ax mode). Ceiling or wall mount. Managed locally via web UI or remotely through Ruijie Cloud and the Reyee app. Integrates into self-organising mesh networks of up to 300 APs.

  • Max throughput: 1774 Mbps (1201 Mbps 5 GHz + 573 Mbps 2.4 GHz)
  • PoE input: 802.3at/af — or DC 12 V/1.5 A local power
  • Power consumption: ≤12.95 W
  • 802.1Q VLAN, WPA3, 802.1X, L2/L3 roaming, AI roaming
  • IP41, ±2 kV surge protection
Specifications

Wi-Fi Standard (5 GHz)

IEEE 802.11a/n/ac Wave2/ax

Wi-Fi Standard (2.4 GHz)

IEEE 802.11b/g/n/ax

Max Throughput

1774 Mbps

Data Rate (5 GHz)

1201 Mbps

Data Rate (2.4 GHz)

573 Mbps

MIMO

2x2 MIMO, 2 spatial streams per band

Antenna Gain (5 GHz)

4.58 dBi

Antenna Gain (2.4 GHz)

3.13 dBi

Max Transmit Power

24 dBm combined (21 dBm single-stream) per band

Ethernet Port

1x 10/100/1000BASE-T (802.3at/af PoE)

Power Input

802.3at/af PoE or DC 12 V/1.5 A

Power Consumption

≤12.95 W

Max SSIDs

8

Recommended Clients (11ax)

100 (16 x 2.4 GHz + 84 x 5 GHz)

IP Rating

IP41

Lightning/Surge Protection

±2 kV

Operating Temperature

0°C to 40°C

Storage Temperature

-40°C to +70°C

Operating Humidity

5% to 95% RH (non-condensing)

Mounting

Ceiling or wall mount

Dimensions (Ø x H)

175 mm x 39 mm

Weight

≤0.4 kg

Flash / Memory

128 MB Flash / 256 MB RAM

Health Certification

EN IEC 62311:2020

Spectrum Certifications

EN 300 328 V2.2.2, EN 301 893 V2.1.1, EN 300 440 V2.2.1
