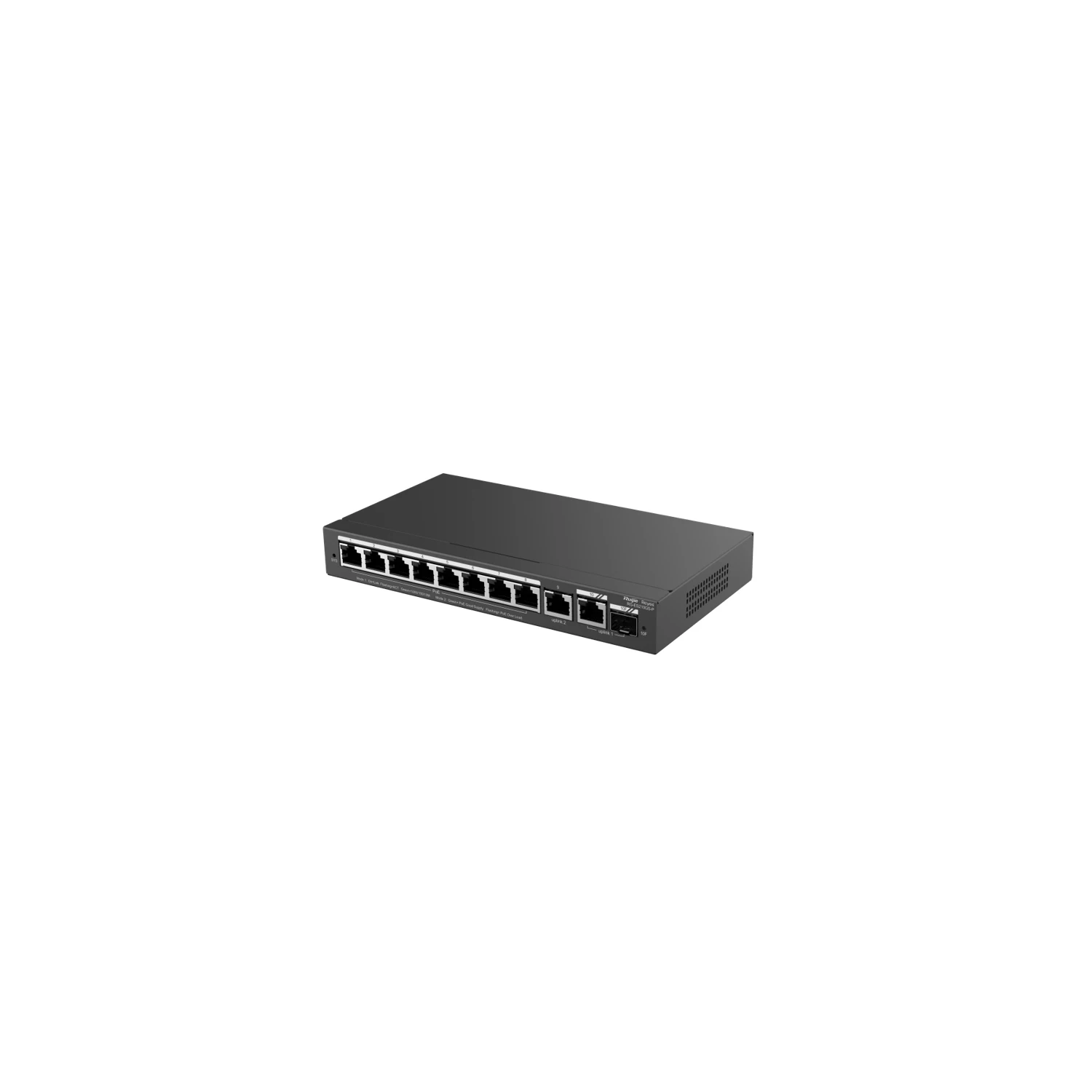

Reyee RG-ES210GS-P 10 Port Gigabit Smart PoE Switch SFP 120W

Photo is representative

Reyee RG-ES210GS-P 10 Port Gigabit Smart PoE Switch SFP 120W

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code RG-ES210GS-P
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £97.73

Gross price

£117.27

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Layer 2 gigabit access switch with 8 PoE+ ports and a 120W PoE budget. Suits small to medium business installs — IP cameras, APs, VoIP. Managed via Ruijie Cloud or the Reyee app. Fanless metal housing, wall or desk mountable.

  • 8x PoE+ ports (IEEE 802.3af/at), 120W total budget
  • 1x 1GE combo port (RJ45 + SFP)
  • 20 Gbps switching capacity, 14.8 Mpps forwarding rate
  • Up to 16 VLANs, broadcast/multicast storm control, DHCP snooping
  • 100–240V AC input via DC adapter, fanless, 202 x 108 x 28 mm
Specifications

Total RJ45 Ports

10

PoE Ports

8 (IEEE 802.3af/at)

PoE Budget

120 W

SFP / Combo Ports

1x 1GE combo (RJ45 + SFP)

Switching Capacity

20 Gbps

Forwarding Rate

14.8 Mpps

Power Input

100–240V AC, 50–60 Hz (DC adapter)

Max Power Consumption (PoE Full Load)

130 W

Max Power Consumption (No PoE)

10 W

Mounting

Wall or desk

Casing

Metal, fanless

Dimensions (W x D x H)

202 x 108 x 28 mm

Weight (unit only)

0.55 kg

Operating Temperature

0°C to 40°C

ESD Protection (Air Discharge)

8 kV

Surge Protection (Service Port)

±6 kV common mode

Max VLANs

16

Max MAC Address Entries

4000

Jumbo Frame (MTU)

9216 bytes

MTBF

200,000 hours

Certifications

CE, FCC

EMC Standards

EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 300 386

Safety Compliance

EN 62638-1

Warranty

3 years

Documents

datasheet RG-ES210GS-P Datasheet
