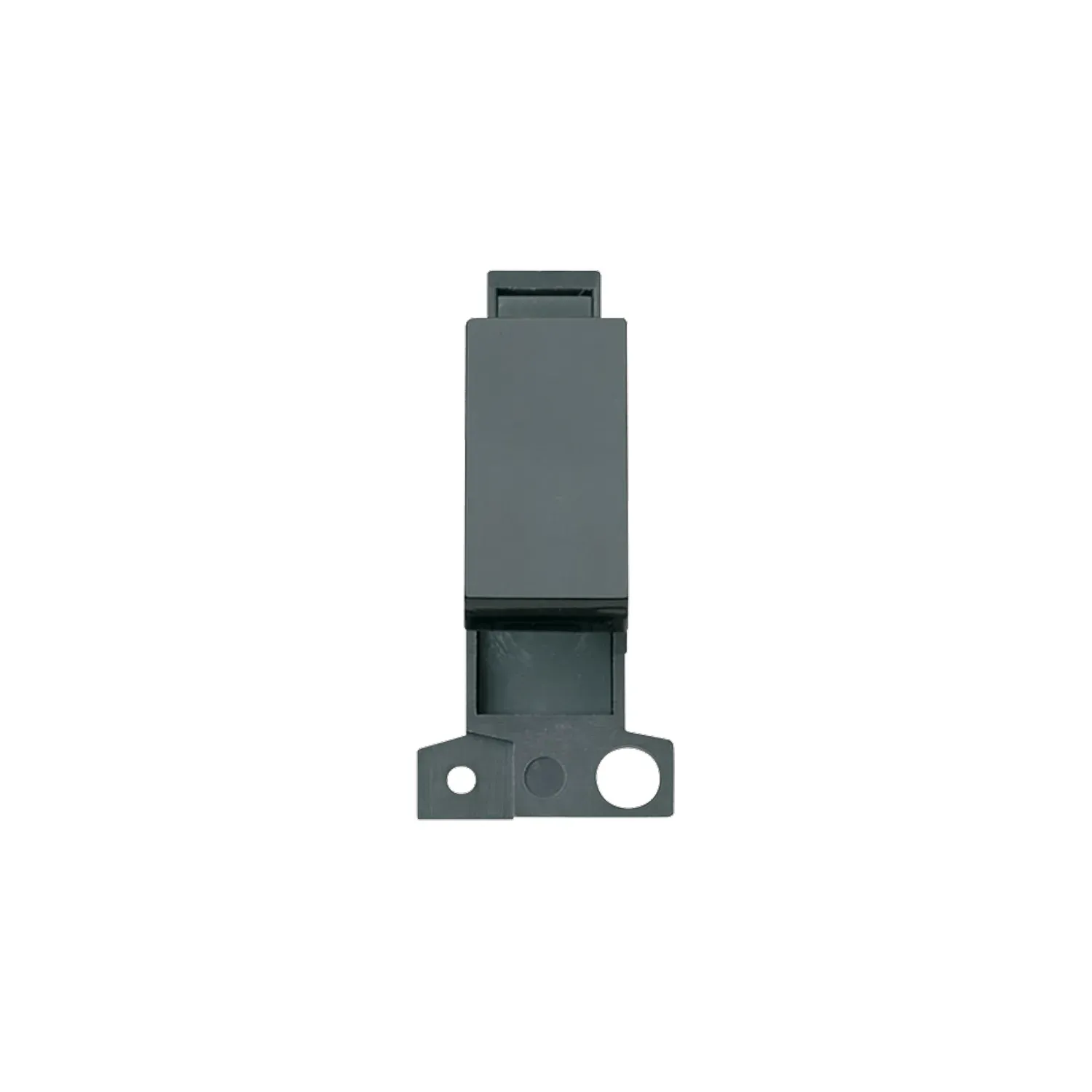

Click MiniGrid 10A 3 Position Retractive Switch Module Black
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
MD075BK
GTIN
—
Stock status:
In stock
priced individually
Net price: £3.46
Gross price
£4.15
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Click MiniGrid retractive switch module for euro grid plate systems. Single-pole, 3 position, press-to-make — suited to lighting control and momentary switching applications.
Rated 10A resistive at 250V~. Module dimensions are 25 x 57 x 27mm. Screw terminals accept 4 x 1.5mm² or 2 x 2.5mm² solid conductors. Minimum back box depth is 25mm — 35mm required for flat plates.
- 10A resistive rating at 250V~
- Press-to-make retractive contact
- Screw terminals: 4 x 1.5mm² or 2 x 2.5mm²
- Min back box: 25mm (35mm flat plate)
Compatible with all standard euro module grid plates across brands. Anti-microbial certified. Rated to BS EN 60669-1.
