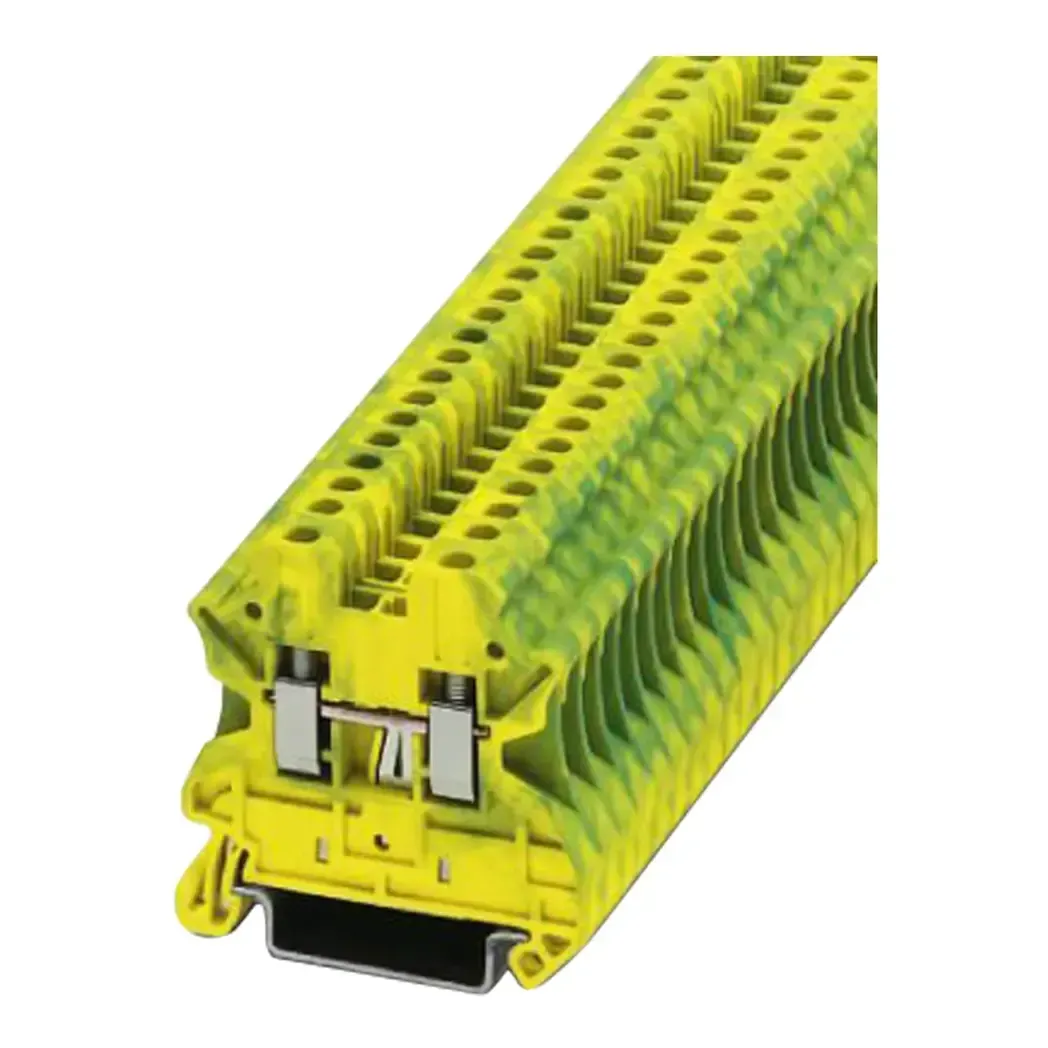

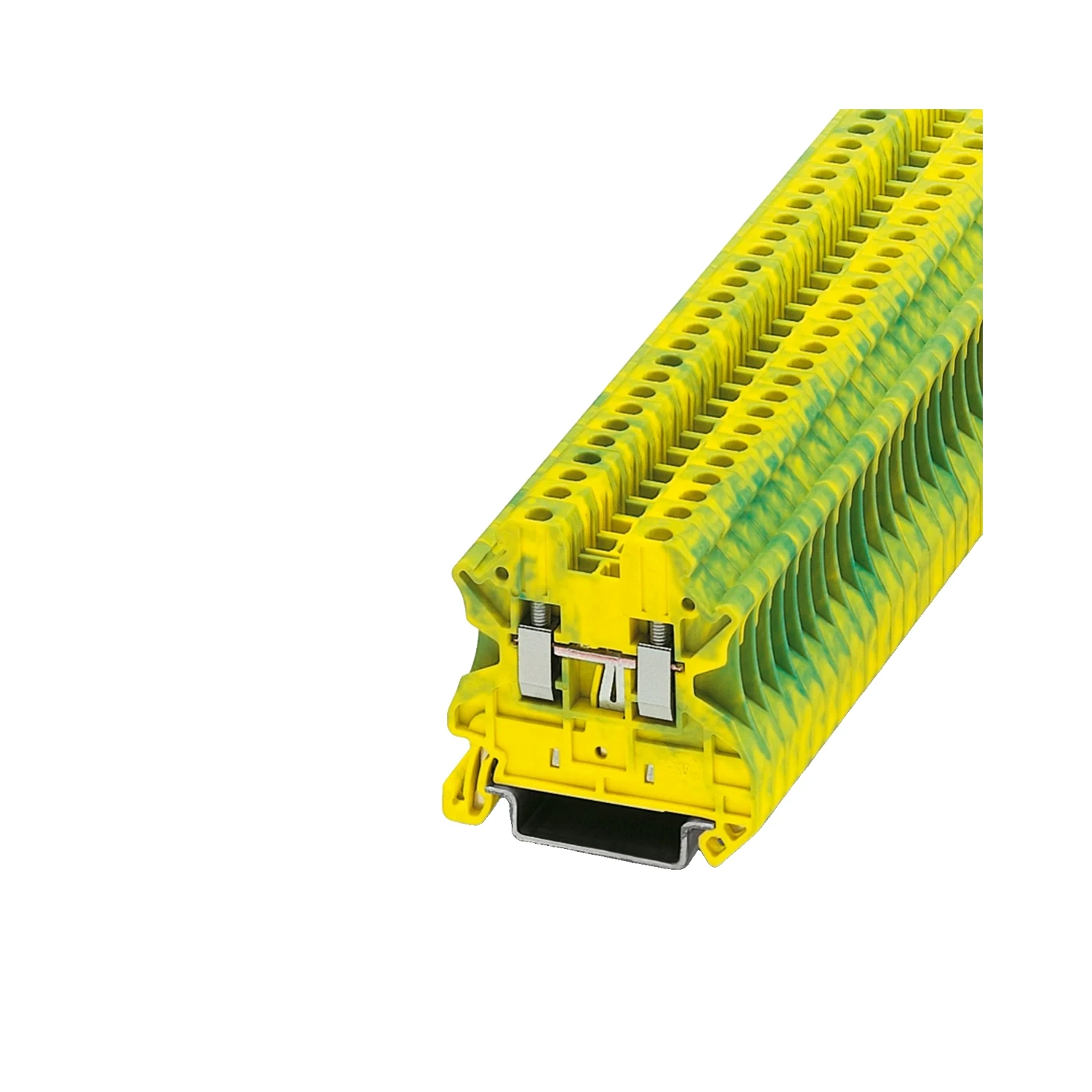

Phoenix Contact UT 2.5-PE Screw Earth Terminal Block Green Yellow 3044092

Photo is representative

Phoenix Contact UT 2.5-PE Screw Earth Terminal Block Green Yellow 3044092

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3044092
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £1.61

Gross price

£1.93

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

PE terminal from Phoenix Contact’s UT series. Screw connection with grounding foot — designed for earth continuity on DIN rail assemblies. Fits NS 35⁄7.5 and NS 35⁄15 rail. ATEX/IECEx certified (II 2 GD Ex eb IIC Gb), so it’s also rated for hazardous area panels.

  • Conductor range: 0.14–4 mm² rigid and flexible, 0.14–2.5 mm² ferruled
  • Screw: M3, 0.5–0.6 Nm tightening torque, 9 mm strip length
  • Operating temp: -60 °C to +110 °C
  • Rated surge voltage: 8 kV, Overvoltage Category III
  • UL 94 V-0, PA insulator, 5.2 mm wide
Specifications

Connection Method

Screw connection

Nominal Cross Section

2.5 mm²

Rated Cross Section AWG

12 AWG

Conductor Range (Rigid)

0.14–4 mm²

Conductor Range (Flexible)

0.14–4 mm²

Conductor Range (Ferrule with Sleeve)

0.14–2.5 mm²

Screw Thread

M3

Tightening Torque

0.5–0.6 Nm

Stripping Length

9 mm

Rated Surge Voltage

8 kV

Overvoltage Category

III

Operating Temperature

-60 °C to +110 °C

Mounting Type

NS 35/7.5, NS 35/15

Width

5.2 mm

Height

47.7 mm

Depth on NS 35/7.5

47.5 mm

Depth on NS 35/15

55 mm

Colour

Green-yellow

Insulating Material

PA

Flammability Rating

UL 94 V-0

Connection Standard

IEC 60947-7-2

ATEX/IECEx Classification

II 2 GD Ex eb IIC Gb

Degree of Pollution

3
