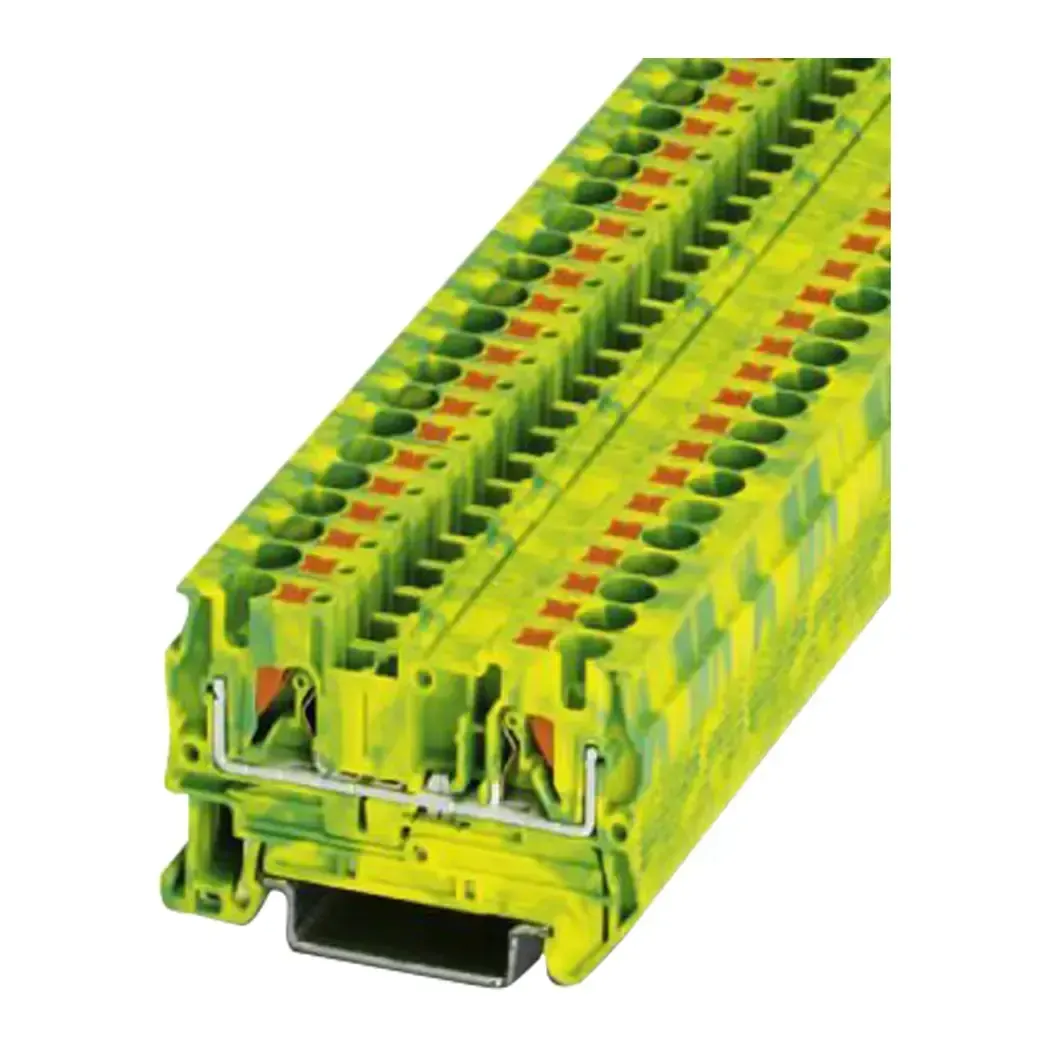

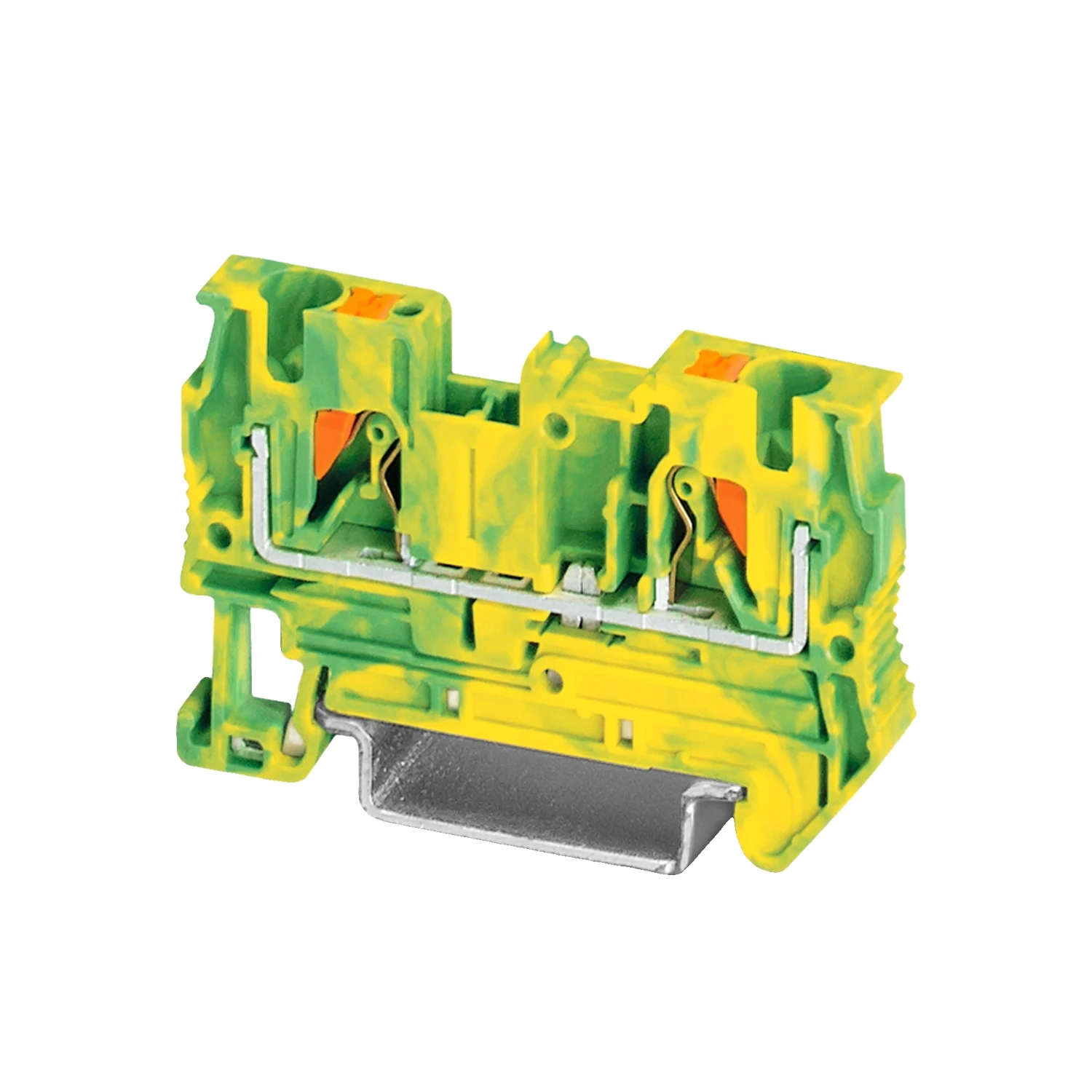

Phoenix Contact PT 4-PE Push-In Protective Conductor Terminal Block 4mm Green-Yellow

Photo is representative

Phoenix Contact PT 4-PE Push-In Protective Conductor Terminal Block 4mm Green-Yellow

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3211766
GTIN —
Stock status: In stock

priced individually

Net price: £2.48

Gross price

£2.97

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Push-in earth terminal block from Phoenix Contact’s PT series. Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail. Built for grounding circuits in machine building, plant engineering, process industry, and railway applications.

Grounding foot fitted as standard. ATEX/IECEx certified (II 2 G Ex eb IIC Gb) for hazardous area installations.

  • Nominal cross-section: 4 mm²
  • Cable range (rigid/flexible): 0.2–6 mm²
  • AWG range: 24–10
  • Stripping length: 10–12 mm
  • Operating temp: -60 °C to +110 °C
  • Flammability: UL 94 V-0
Specifications

Connection Method

Push-in connection

Nominal Cross-Section

4 mm²

Conductor Range (rigid)

0.2–6 mm²

Conductor Range (flexible)

0.2–6 mm²

Conductor Range (ferrule, no sleeve)

0.25–4 mm²

Conductor Range (ferrule, with sleeve)

0.25–4 mm²

AWG Range

24–10

Stripping Length

10–12 mm

Rated Surge Voltage

8 kV

Overvoltage Category

III

Connection Standard

IEC 60947-7-2

Mounting Type

NS 35/7.5, NS 35/15

Operating Temperature

-60 °C to +110 °C

Flammability Rating

UL 94 V-0

ATEX/IECEx Certification

II 2 G Ex eb IIC Gb

Width

6.2 mm

Height

56 mm

Depth

35.3 mm

Colour

Green-yellow

Material

Polyamide (PA)

Grounding Foot

Yes

Number of Connections

2

Documents

datasheet Phoenix Contact 3211766 Datasheet
