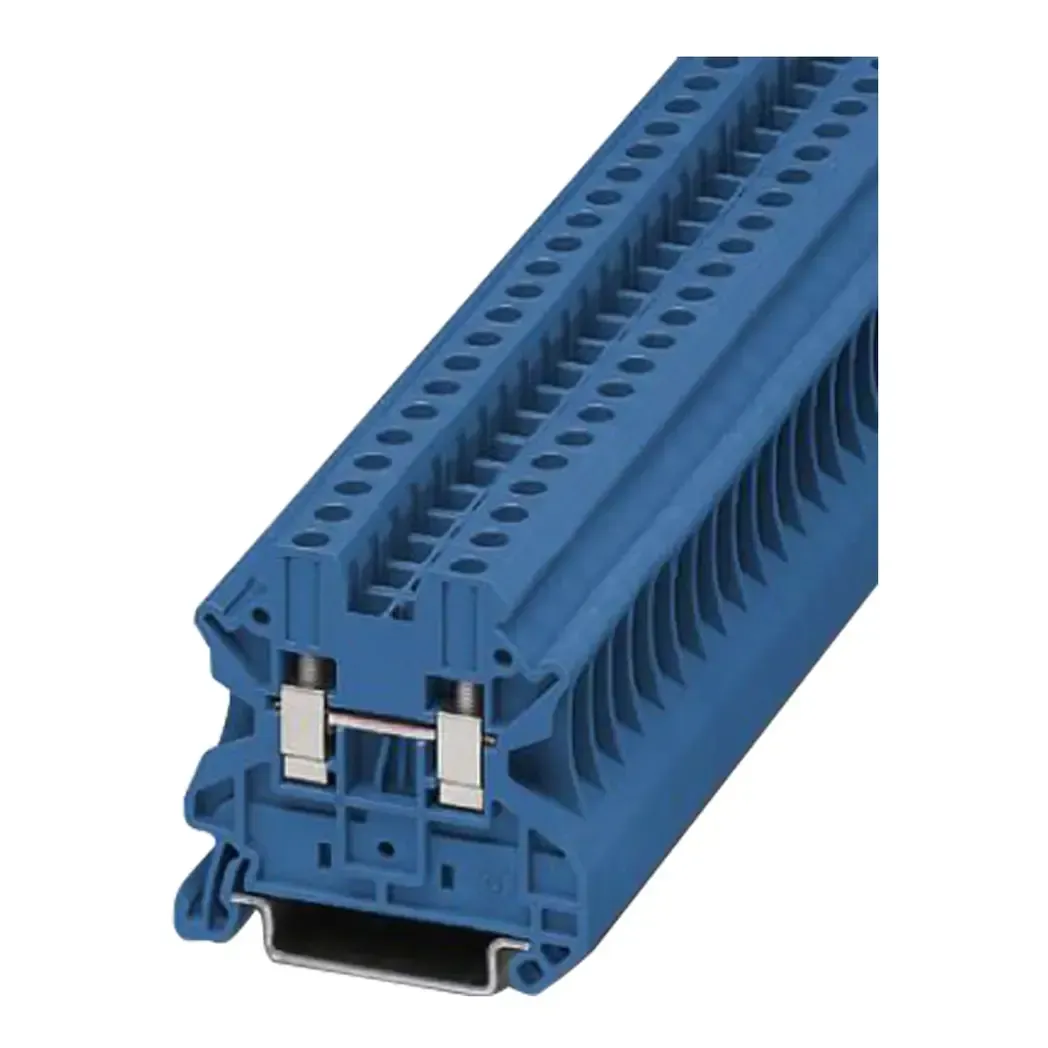

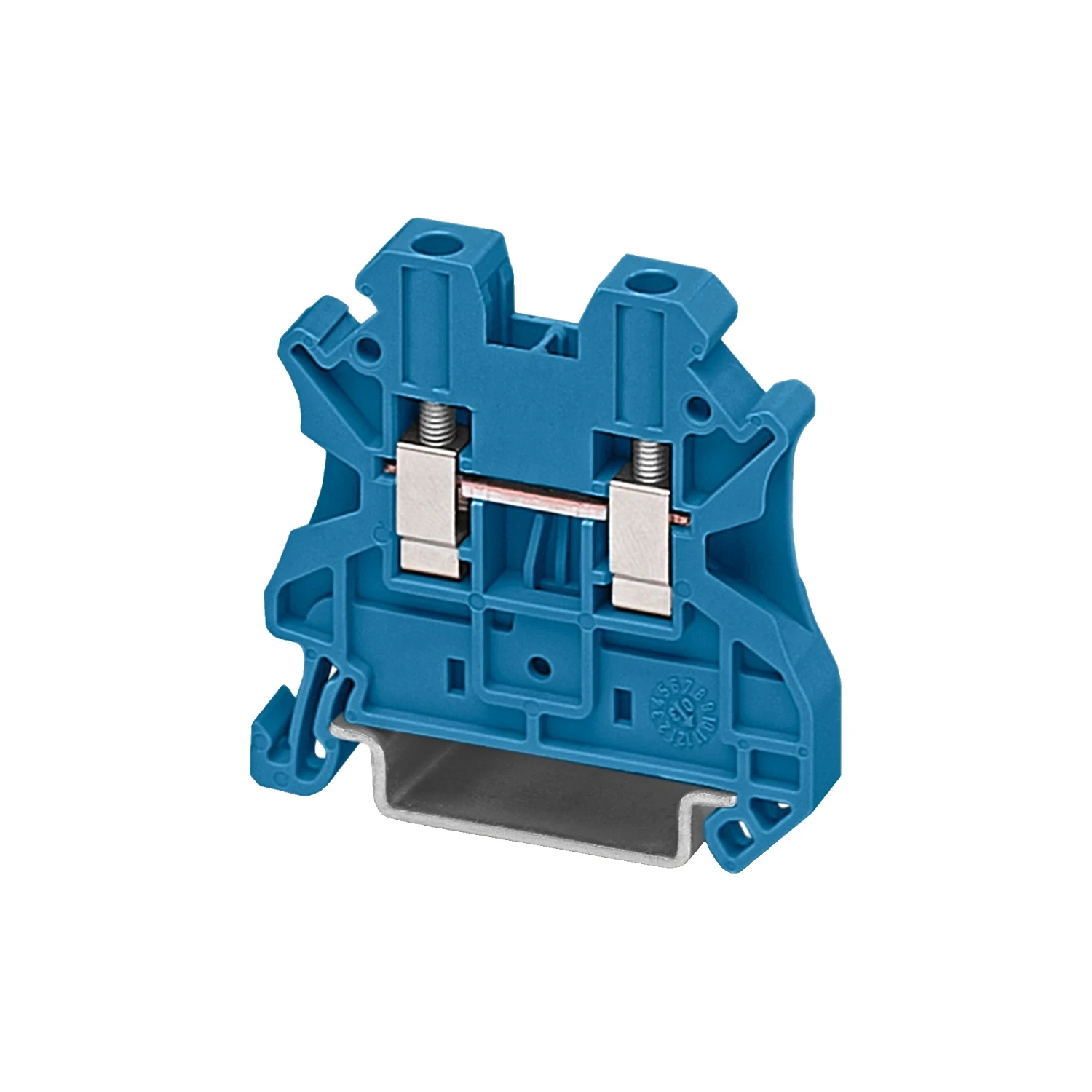

Phoenix Feed-Through Terminal Block UT 4 BU 3044115

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3044115
GTIN —
Stock status: In stock

priced individually

Net price: £0.67

Gross price

£0.81

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Phoenix Feed-through terminal block UT 4 BU 3044115 with 1 level, 2 connections, nominal cross section of 4 mm, in blue color and made of PA insulating material. Flammability rating V0 according to UL 94.

Specifications

Color

Blue

Potentials

1

Open Side Panel

Yes

Number Of Levels

1

Finger Protection

Guaranteed

Nominal Current IN

32 A (with 4 mm conductor cross section)

Nominal Voltage UN

1000 V

Flammability Rating

V0

Insulating Material

PA

Rated Surge Voltage

8 kV

Maximum Load Current

41 A (with 6 mm conductor cross section)

Tight Fit On Support

NS 35 Setpoint: 1 N

Nominal Cross Section

4 mm

Number Of Connections

2

Back Of The Hand Protection

Guaranteed

Result Of Surge Voltage Test

Test Passed

Shock Protection Test Specification

DIN EN 50274 (VDE 0660-514):2002-11

Result Of Power-Frequency Withstand Voltage Test

Test Passed
