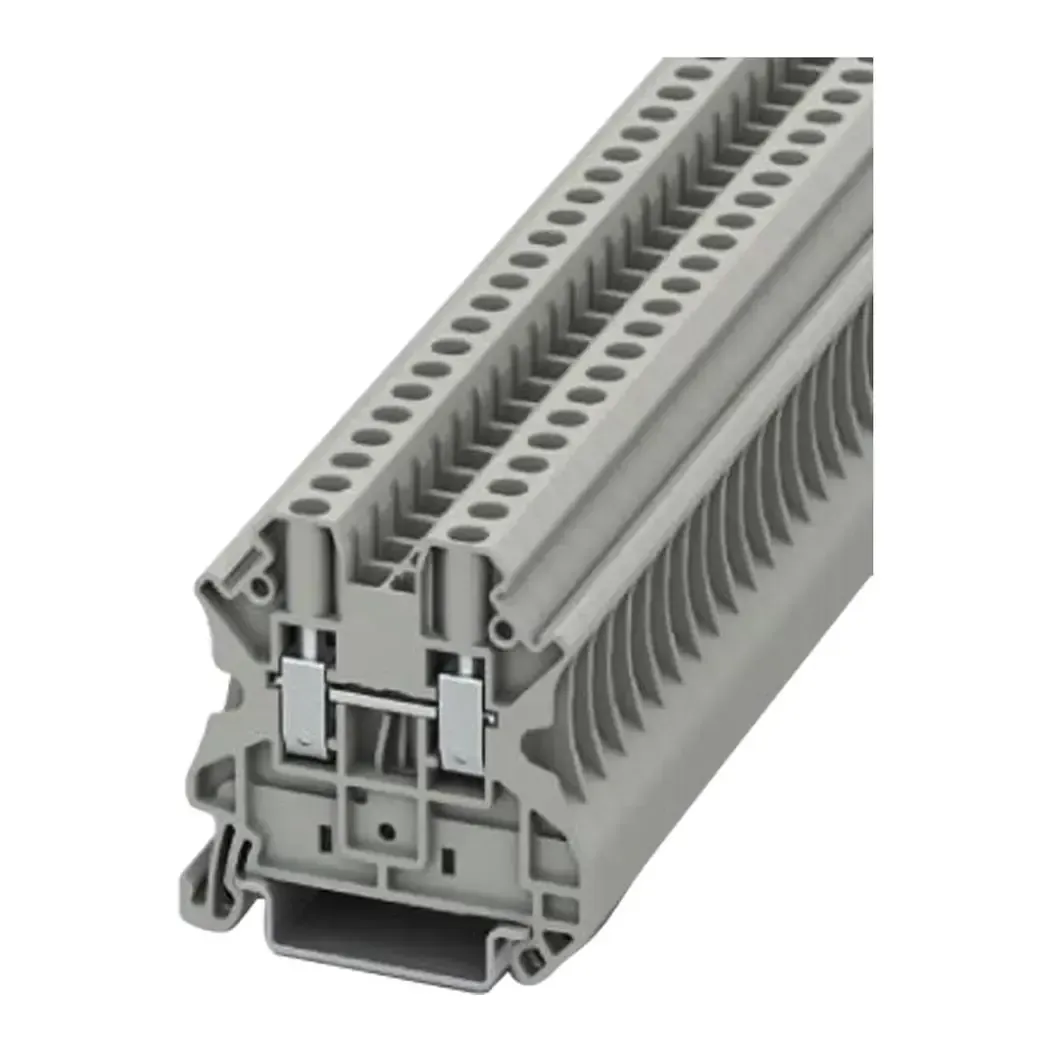

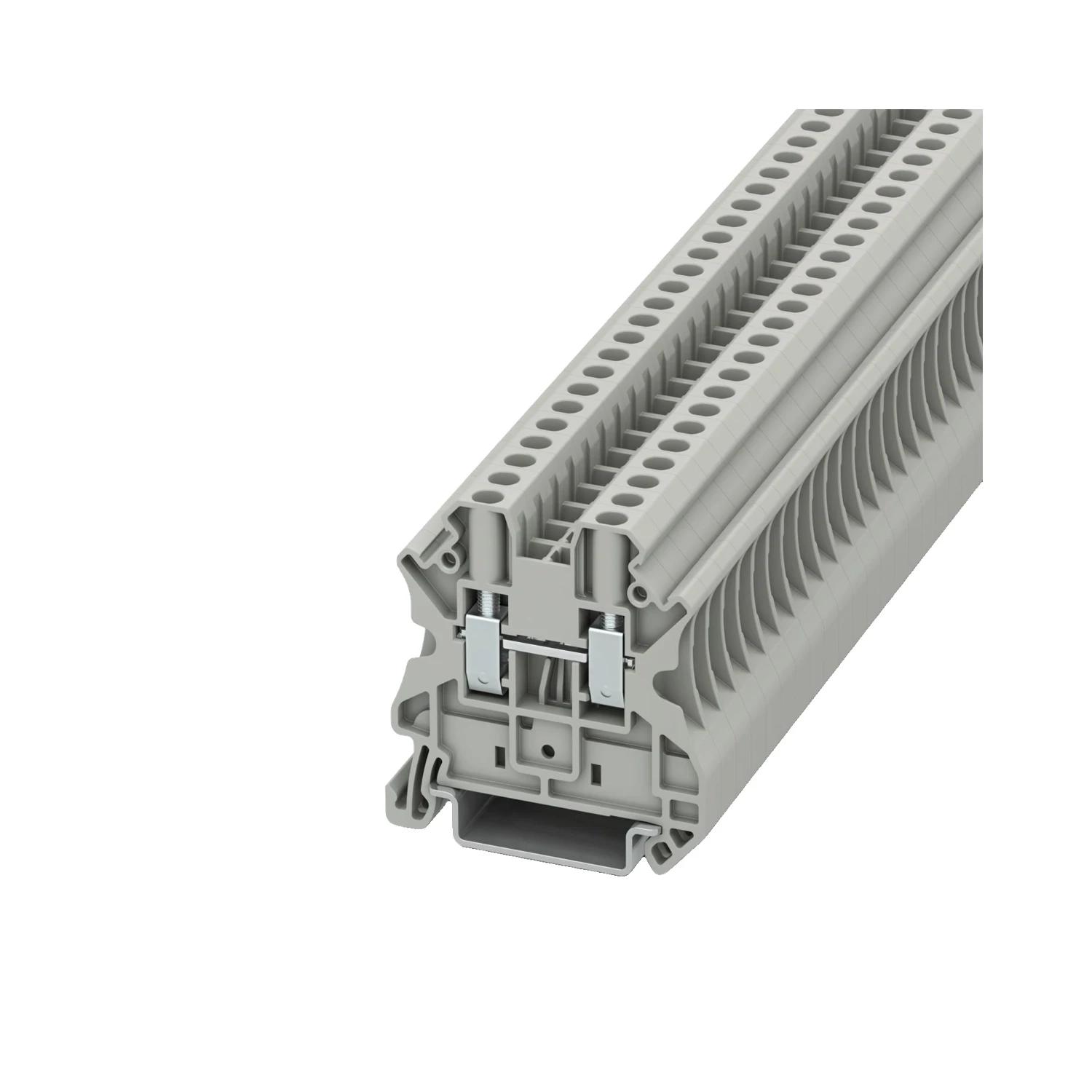

Phoenix Feed-Through Terminal Block UT 4 3044102

Colour

Grey

Potentials

1

Open Side Panel

Yes

Number Of Levels

1

Finger Protection

Guaranteed

Bending Test Turns

135

Nominal Current IN

32 A (with 4 mm conductor cross section)

Nominal Voltage UN

1000 V

Degree Of Pollution

3

Insulating Material

PA

Rated Surge Voltage

8 kV

Tensile Test Result

Test Passed

Maximum Load Current

41 A (with 6 mm conductor cross section)

Overvoltage Category

III

Tight Fit On Carrier

NS 35 Setpoint: 1 N

Nominal Cross Section

4 mm

Number Of Connections

2

Result Of Thermal Test

Test Passed

Insulating Material Group

I

Back Of The Hand Protection

Guaranteed

Bending Test Rotation Speed

10 rpm

Result Of Voltage-Drop Test

Test Passed

Result Of Surge Voltage Test

Test Passed

Result Of Tight Fit On Support

Test Passed

Short Circuit Stability Result

Test Passed

Result Of Temperature-Rise Test

Test Passed

Requirement Temperature-Rise Test

Increase In Temperature 45 K

Result Of Flexion And Pull-Out Test

Test Passed

Shock Protection Test Specification

DIN EN 50274 (VDE 0660-514):2002-11

Oscillation Broadband Noise Test Result

Test Passed

Power Frequency Withstand Voltage Setpoint

2.2 kV

Bending Test Conductor Cross Section/Weight

0.14 mm / 0.2 kg 4 mm / 0.9 kg

Conductor Cross Section Short Circuit Testing

4 mm Short-Time Current: 0.48 kA 6 mm Short-Time Current: 0.72 kA

Test Specification Oscillation Broadband Noise

DIN EN 50155 (VDE 0115-200):2008-03

Maximum Power Dissipation For Nominal Condition

1.02 W

Result Of Power-Frequency Withstand Voltage Test

Test Passed

Proof Of Thermal Characteristics (Needle Flame) Effective Duration

30 s

Result Of The Test For Mechanical Stability Of Terminal Points (5 X Conductor Connection)

Test Passed
