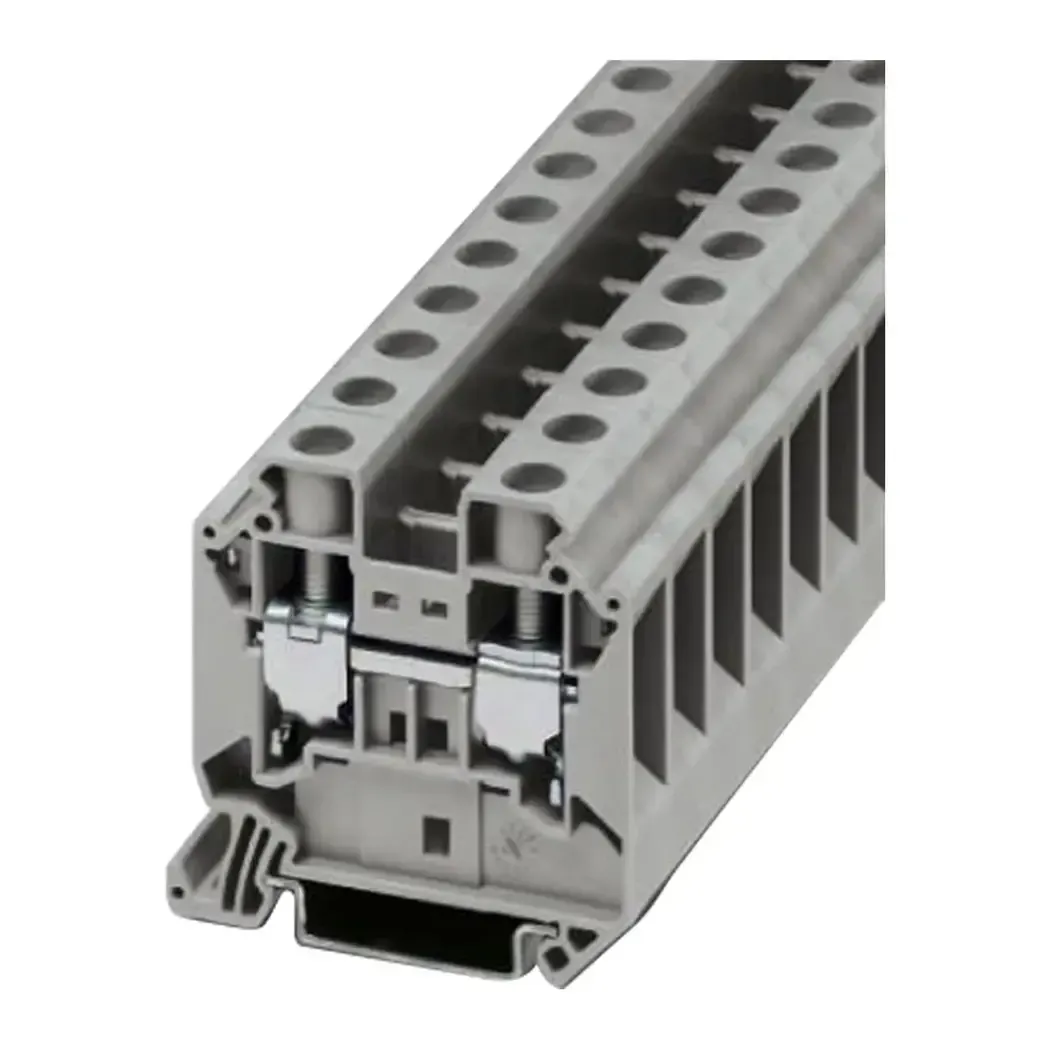

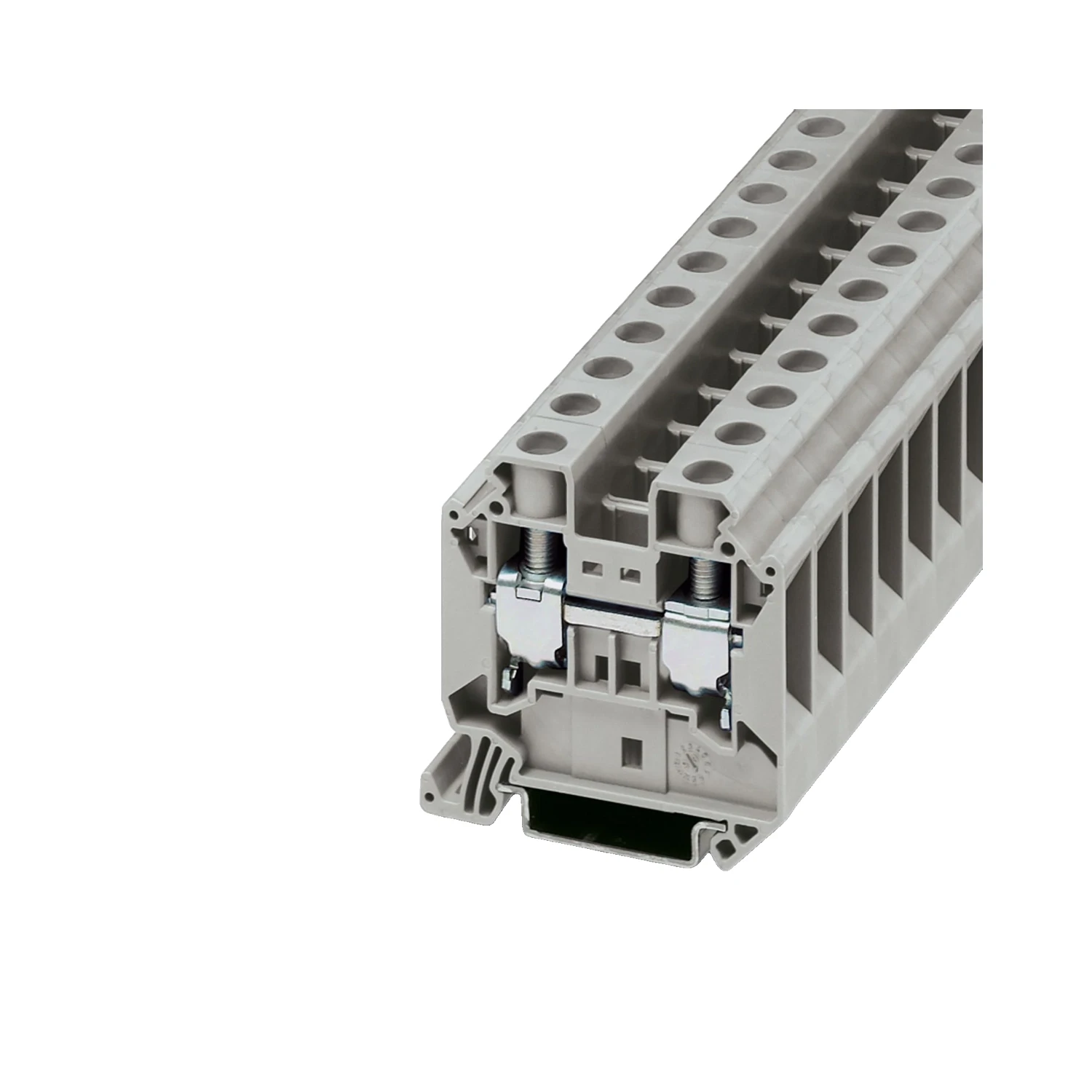

Phoenix Feed-Through Terminal Block UT 16 3044199

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3044199
GTIN
Stock status: In stock

priced individually

More arriving soon

Net price: £1.89

Gross price

£2.27

Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 30 day returns

The Phoenix Feed-through Terminal Block UT 16 3044199 is a high-quality electrical terminal block with a nominal cross section of 16 mm. It is designed for easy wiring with two connections and a single potential. The block is made of grey PA insulating material with a flammability rating of V0.

Specifications

Colour

Grey

Potentials

1

Open Side Panel

Yes

Number Of Levels

1

Nominal Current IN

76 A

Nominal Voltage UN

1000 V

Degree Of Pollution

3

Insulating Material

PA

Rated Surge Voltage

8 kV

Maximum Load Current

101 A (with 25 mm conductor cross section)

Overvoltage Category

III

Nominal Cross Section

16 mm

Number Of Connections

2

Insulating Material Group

I

Flammability Rating According To Ul 94

V0

Maximum Power Dissipation For Nominal Condition

2.43 W
