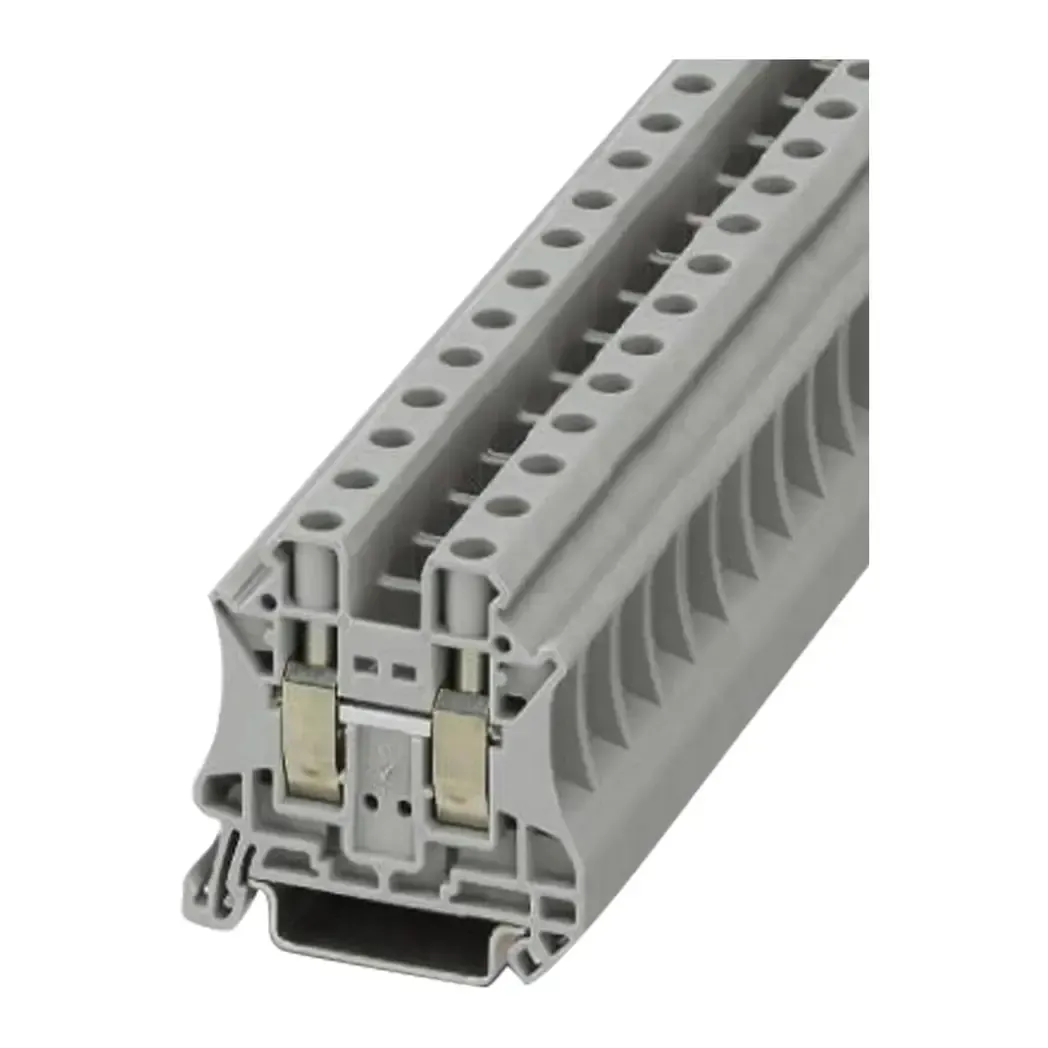

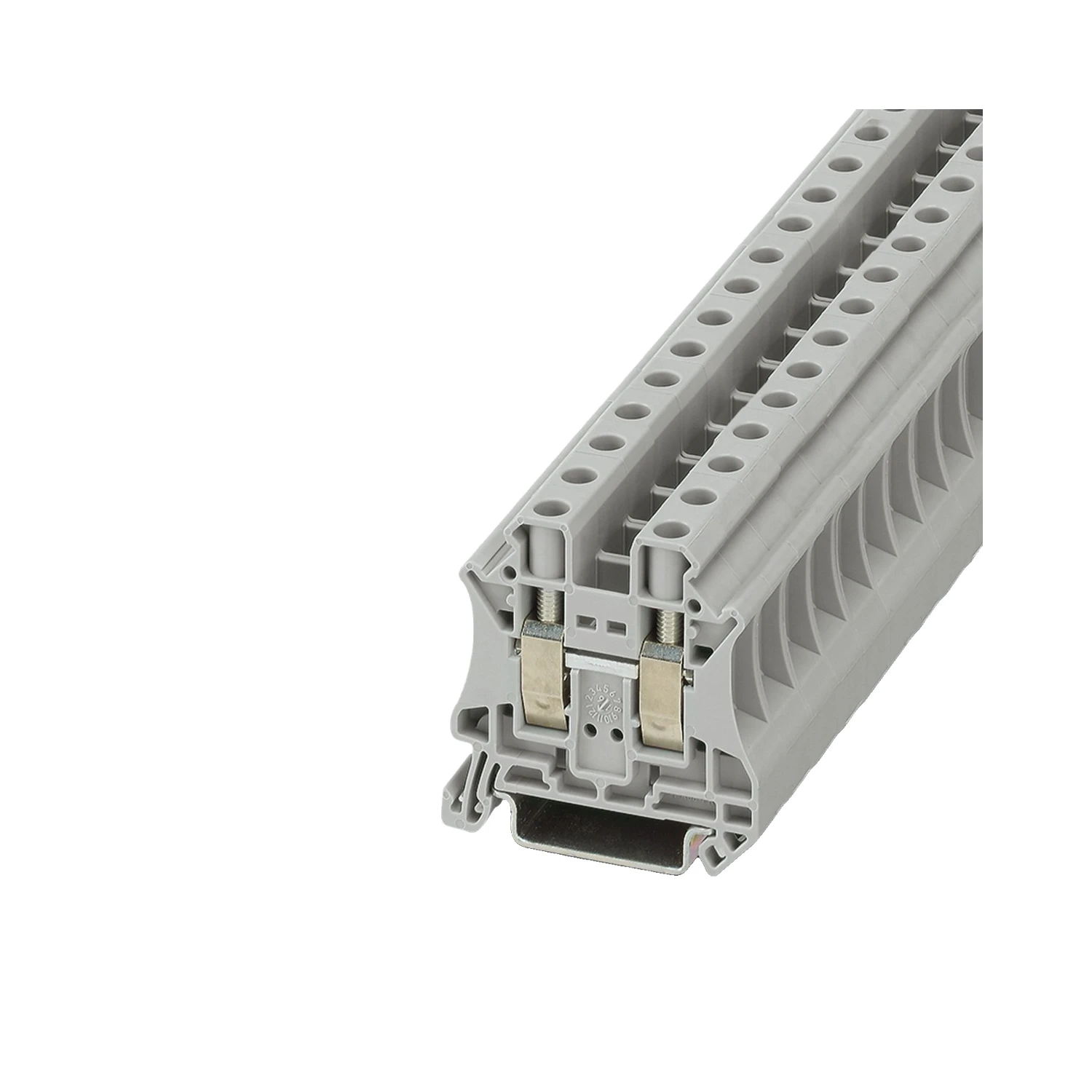

Phoenix Feed-Through Terminal Block UT 10 3044160

Colour

Grey

Potentials

1

Open Side Panel

Yes

Number Of Levels

1

Finger Protection

Guaranteed

Bending Test Turns

135

Nominal Current IN

57 A

Nominal Voltage UN

1000 V

Degree Of Pollution

3

Insulating Material

PA

Rated Surge Voltage

8 kV

Tensile Test Result

Test Passed

Maximum Load Current

76 A (with 16 mm conductor cross section)

Overvoltage Category

III

Tight Fit On Carrier

NS 35 Setpoint 5 N

Nominal Cross Section

10 mm

Number Of Connections

2

Insulating Material Group

I

Back Of The Hand Protection

Guaranteed

Bending Test Rotation Speed

10 Rpm

Result Of Voltage-Drop Test

Test Passed

Surge Voltage Test Setpoint

9.6 kV

Result Of Surge Voltage Test

Test Passed

Result Of Tight Fit On Support

Test Passed

Short Circuit Stability Result

Test Passed

Result Of Temperature-Rise Test

Test Passed

Result Of Flexion And Pull-Out Test

Test Passed

Shock Protection Test Specification

DIN EN 50274 (VDE 0660-514):2002-11

Flammability Rating According To Ul 94

V0

Conductor Cross Section Short Circuit Testing

10 Mm

Maximum Power Dissipation For Nominal Condition

1.82 W

Requirements Voltage Drop U1 3.2 Mv U2 1.5 X U1

Requirements Voltage Drop U1 3.2 Mv U2 1.5 X U1

Result Of Power-Frequency Withstand Voltage Test

Test Passed

Requirement Temperature-Rise Test Increase In Temperature

45 K

Conductor Cross Section Tensile Test 10 Mm Tractive Force Setpoint

90 N

Conductor Cross Section Tensile Test 16 Mm Tractive Force Setpoint

100 N

Conductor Cross Section Tensile Test 0.5 Mm Tractive Force Setpoint

20 N

Result Of The Test For Mechanical Stability Of Terminal Points (5 X Conductor Connection)

Test Passed
