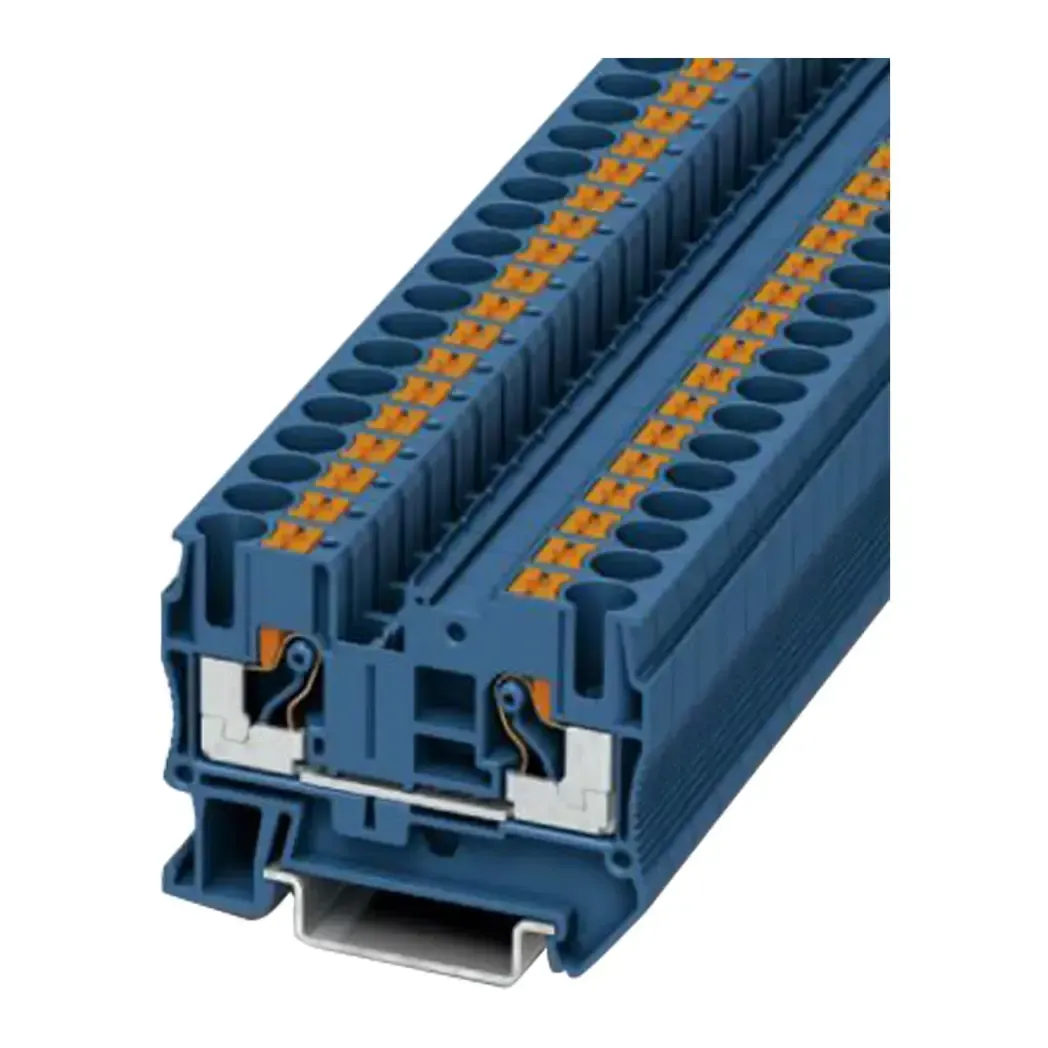

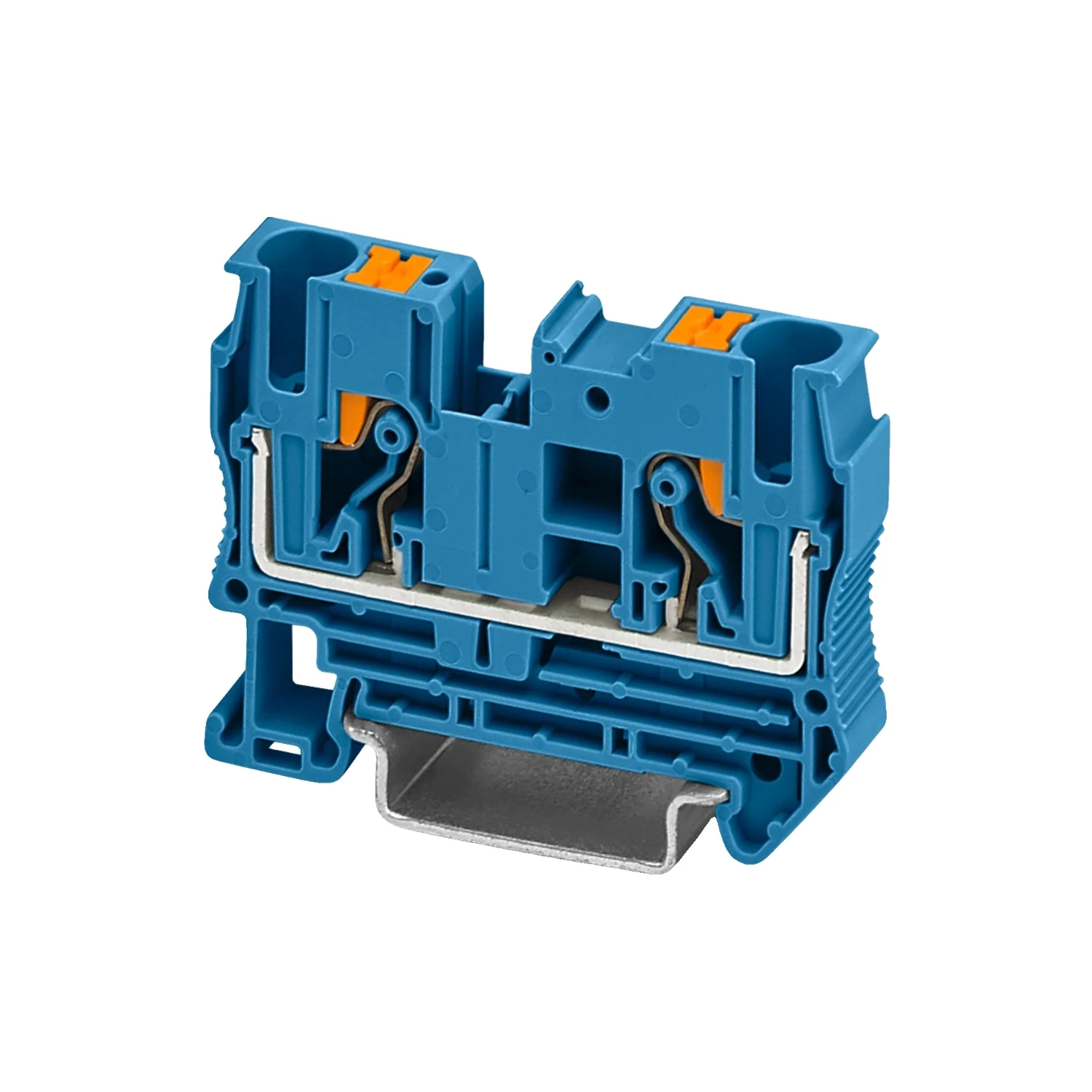

Phoenix Feed-through Terminal Block PT 6 BU 3211819

Colour

Blue

Potentials

1

Open Side Panel

Yes

Number Of Levels

1

Finger Protection

Guaranteed

Bending Test Turns

135

Nominal Current IN

41 A

Nominal Voltage UN

1000 V

Degree Of Pollution

3

Flammability Rating

V0

Insulating Material

PA

Rated Surge Voltage

8 kV

Tensile Test Result

Test Passed

Maximum Load Current

52 A

Overvoltage Category

III

Tight Fit On Carrier

NS 35 Setpoint: 5 N

Nominal Cross Section

6 mm

Number Of Connections

2

Requirements Voltage Drop

U1 3.2 mV, U2 4.8 mV

Back Of The Hand Protection

Guaranteed

Bending Test Rotation Speed

10 RPM

Result Of Voltage-Drop Test

Test Passed

Surge Voltage Test Setpoint

9.8 kV

Result Of Surge Voltage Test

Test Passed

Result Of Tight Fit On Support

Test Passed

Short Circuit Stability Result

Test Passed

Result Of Temperature-Rise Test

Test Passed

Result Of Flexion And Pull-Out Test

Test Passed

Shock Protection Test Specification

DIN EN 50274 (VDE 0660-514):2002-11

Conductor Cross Section Tensile Test

0.5 mm - 20 N, 6 mm - 80 N, 10 mm - 90 N

Power Frequency Withstand Voltage Setpoint

2.2 kV

Bending Test Conductor Cross Section/Weight

0.5 mm / 0.3 kg, 6 mm / 1.4 kg

Maximum Power Dissipation For Nominal Condition

1.31 W

Result Of Power-Frequency Withstand Voltage Test

Test Passed

Result Of The Test For Mechanical Stability Of Terminal Points (5 X Conductor Connection)

Test Passed
