PCE 63A 2P+E IP67 Industrial Appliance Inlet - 230V Blue

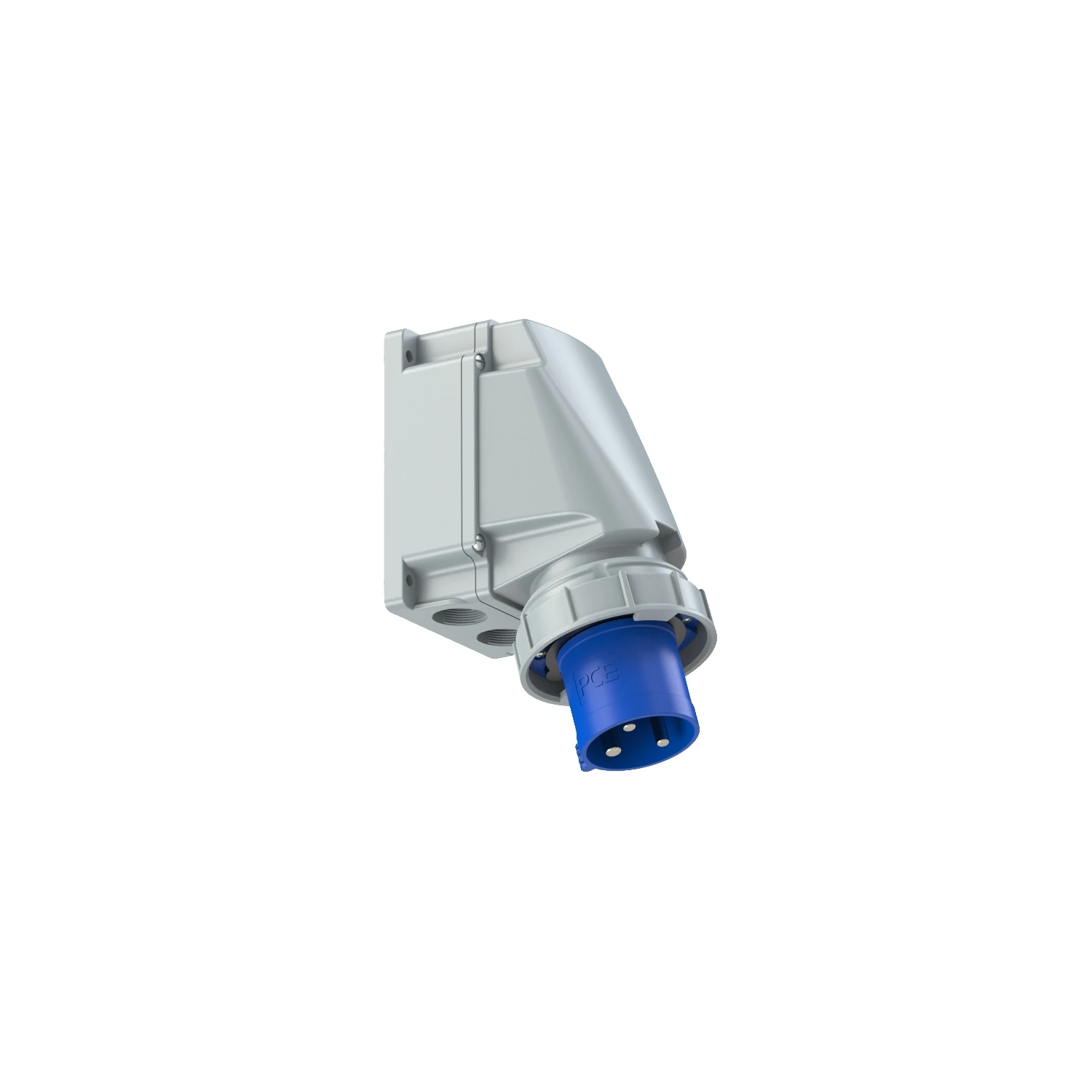

Photo is representative

PCE 63A 2P+E IP67 Industrial Appliance Inlet - 230V Blue

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 533-6
GTIN —
Stock status: 1 in stock

priced individually

Net price: £64.43

Gross price

£77.32

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

PCE Power Twist wall-mounted appliance inlet, 63A, 2P+E, 6h clock position. IP67-rated for outdoor and weather-exposed installations. Suits 230V blue IEC 60309 systems.

PC/ABS housing with brass nickel-plated contacts and pilot pin. Angled, surface-mounted construction. Screw frame terminals throughout.

  • Flexible cable: 6–16mm²
  • Solid cable: 6–25mm²
  • Stripping length: 15–18mm
  • IK08 impact rating
  • Operating temp: -25°C to +40°C
Specifications

Current Rating

63A

Configuration

2P+E

Clock Position

6h

Voltage

200-250V / 230V Blue

Frequency

50+60Hz

IP Rating

IP67

IK Rating

IK08

Housing Material

PC/ABS

Contact Material

Brass nickel-plated

Mounting

Surface mounted, angled

Terminal Capacity (Flexible)

6-16mm²

Terminal Capacity (Solid)

6-25mm²

Operating Temperature

-25°C to +40°C

Stripping Length

15-18mm

Documents

datasheet 533-6 Datasheet
