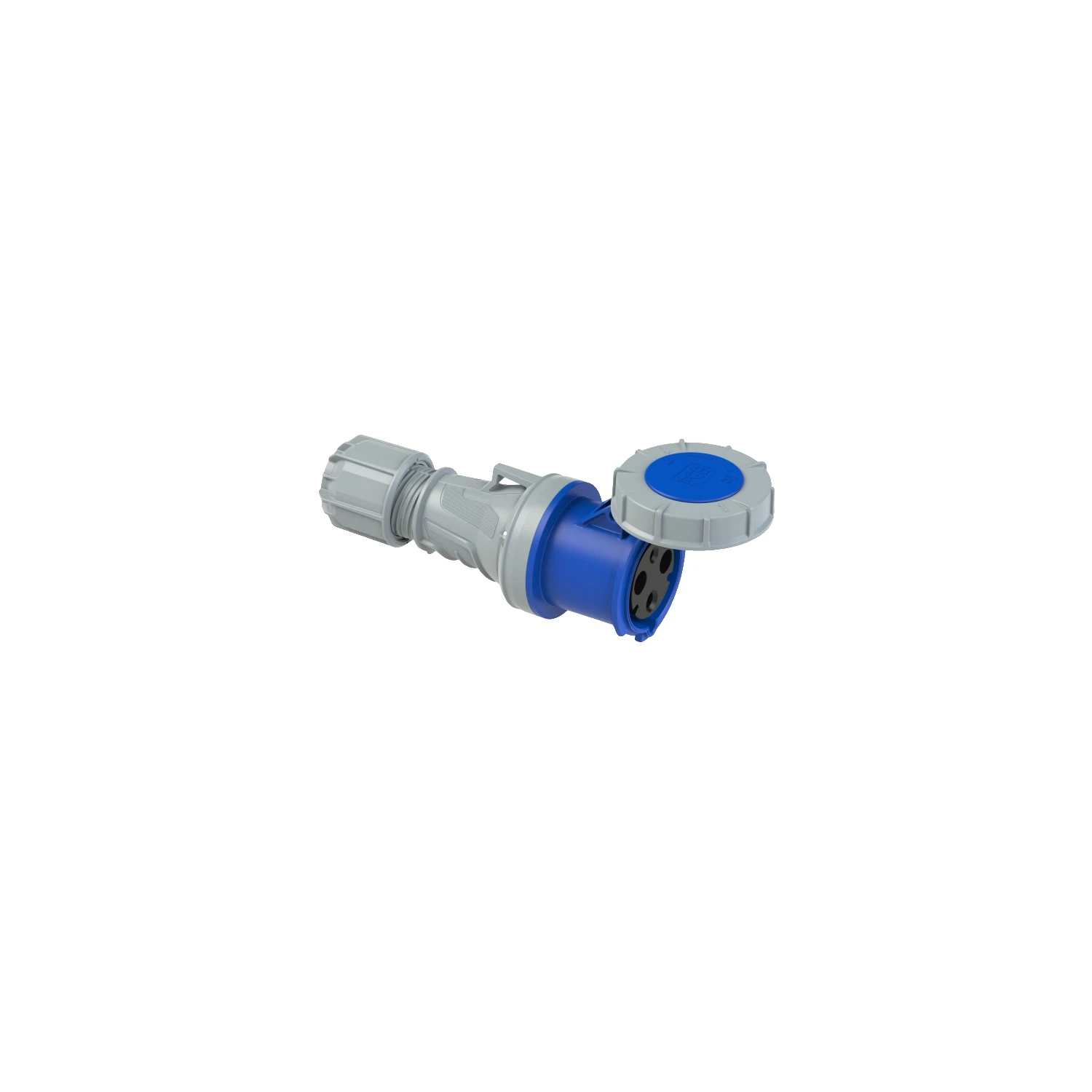

PCE 63A 2P+E IP67 Industrial CEE Coupler - 230V Blue
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
233-6
GTIN
—
Stock status:
Out of stock
priced individually
Net price: £53.88
Gross price
£64.65
PCE POWER TWIST CEE coupler, 63A 2P+E, rated for 200–250V~/50+60Hz — classed as 230V blue per EN 60309-2. IP66/IP67 rated and IK10 impact-resistant. Straight entry with gland nut cable entry, suits cable OD 14.5–36mm.
PA6 polyamide housing. CuZn brass contacts with CuBe lamellar spring, untreated surface. Screw frame terminals throughout.
- Terminal capacity: 6–16mm²
- Stripping length: 15–18mm
- Strain relief: 1500 Ncm
- Ambient operating temp: –25°C to +40°C
- Clock position: 6h
