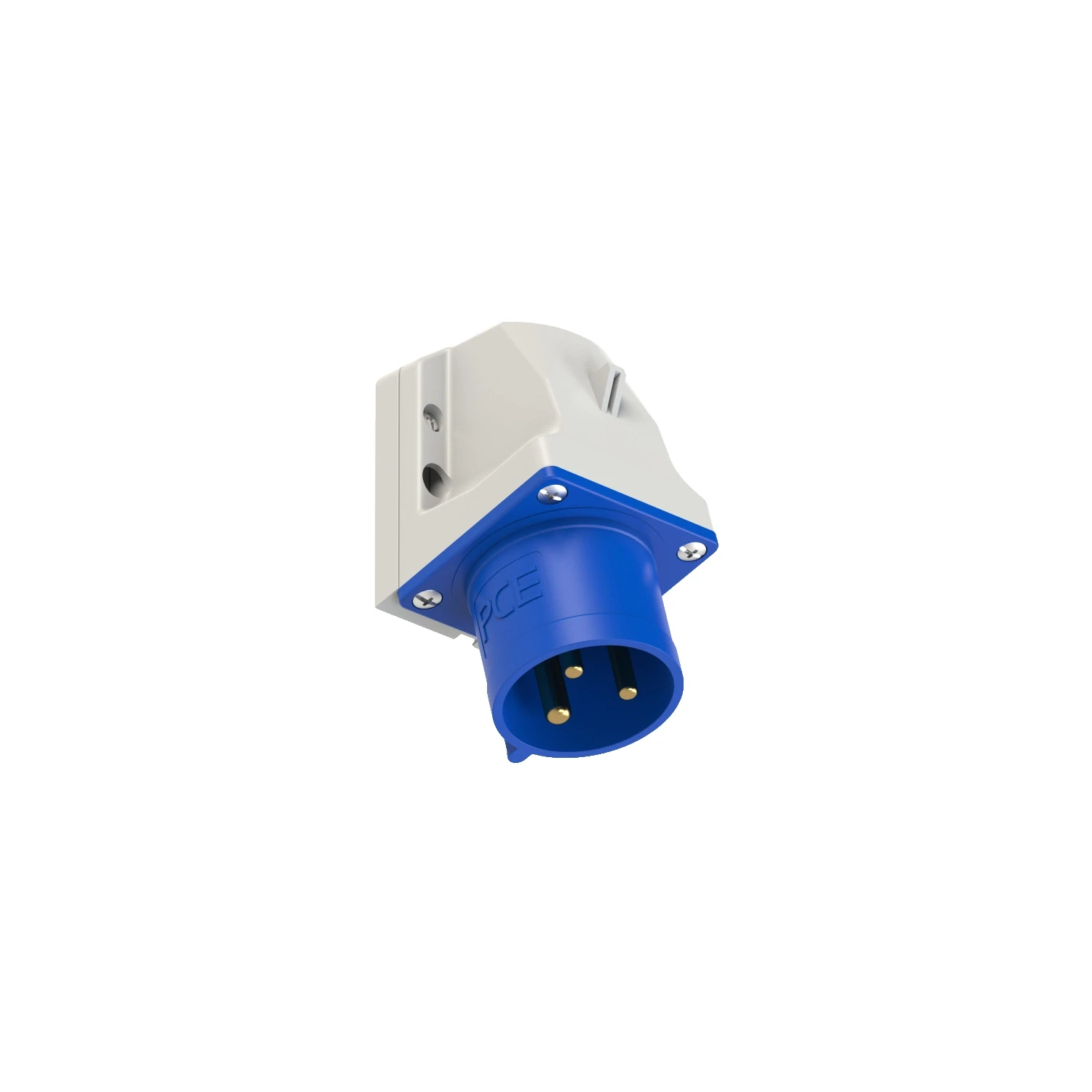

PC Electric 32A 2P+E IP44 Industrial Appliance Inlet - 230V Blue

Photo is representative

PC Electric 32A 2P+E IP44 Industrial Appliance Inlet - 230V Blue

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 523-6
GTIN —
Stock status: 2 in stock

priced individually

More arriving soon

Net price: £13.42

Gross price

£16.11

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

PC Electric 32A 2P+E angled appliance inlet for surface-mounted CEE installations. IP44 rated, 230V blue-coded to EN 60309-2, 6h clock position.

PA6 polyamide housing with CuZn (brass) contacts. Screw terminal connection throughout.

  • Cable range: 2.5–6mm² flexible, 2.5–10mm² solid
  • Stripping length: 12–14mm
  • Dismantling length: 50mm
  • Terminal torque: 110 Ncm
  • Operating temp: -25°C to +40°C
Specifications

Current Rating

32A

Configuration

2P+E

Voltage

230V Blue

Frequency

50/60Hz

Clock Position

6h

IP Rating

IP44

Housing Material

PA6 Polyamide

Contact Material

CuZn (Brass)

Mounting

Surface mounted

Connection

Screw terminals

Cable Range (Flexible)

2.5–6mm²

Cable Range (Solid)

2.5–10mm²

Stripping Length

12–14mm

Operating Temperature

-25°C to +40°C

Standards

EN 60309-2

Documents

datasheet 523-6 Datasheet
