MM406WH

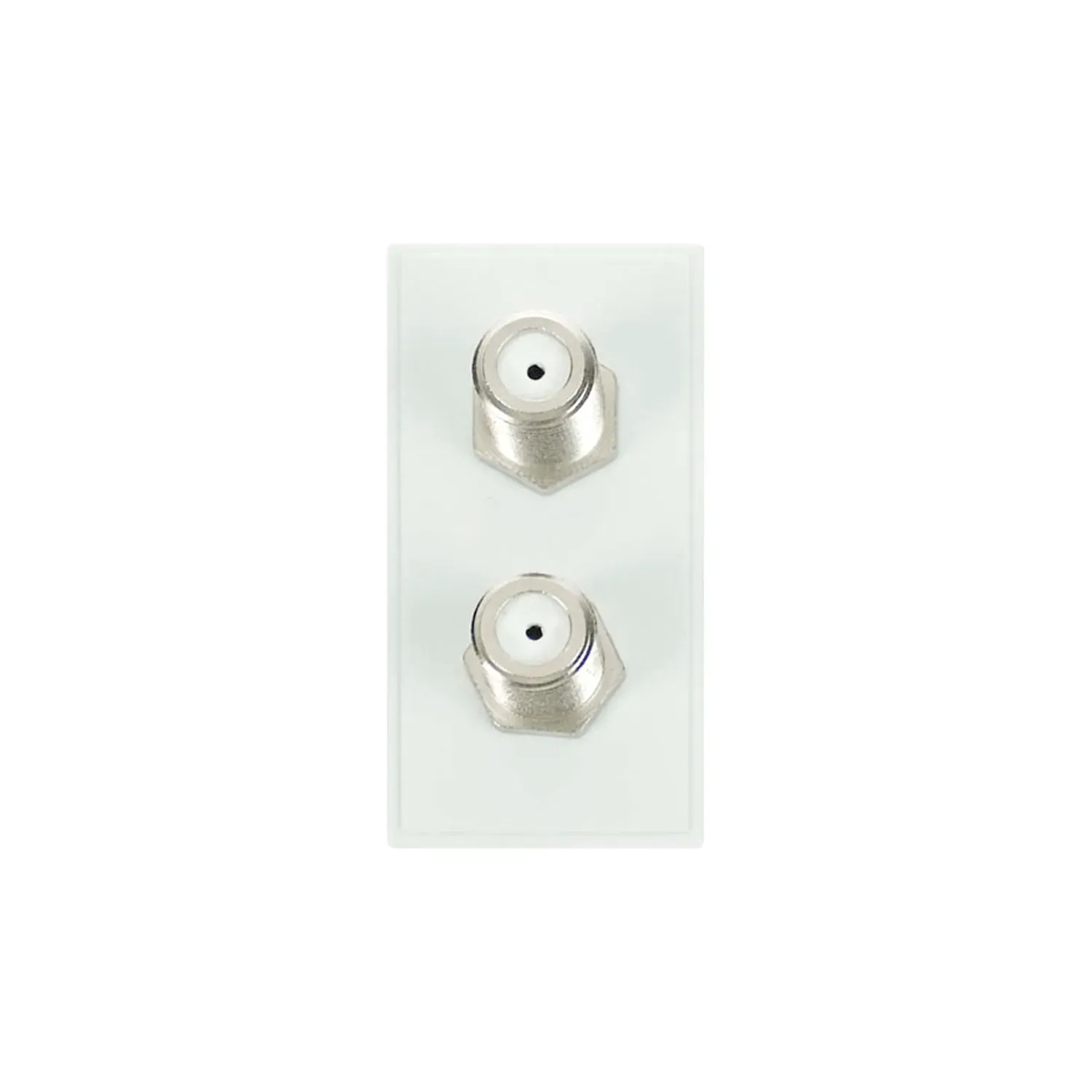

New Media Twin Female Satellite Module White MM406WH

Photo is representative

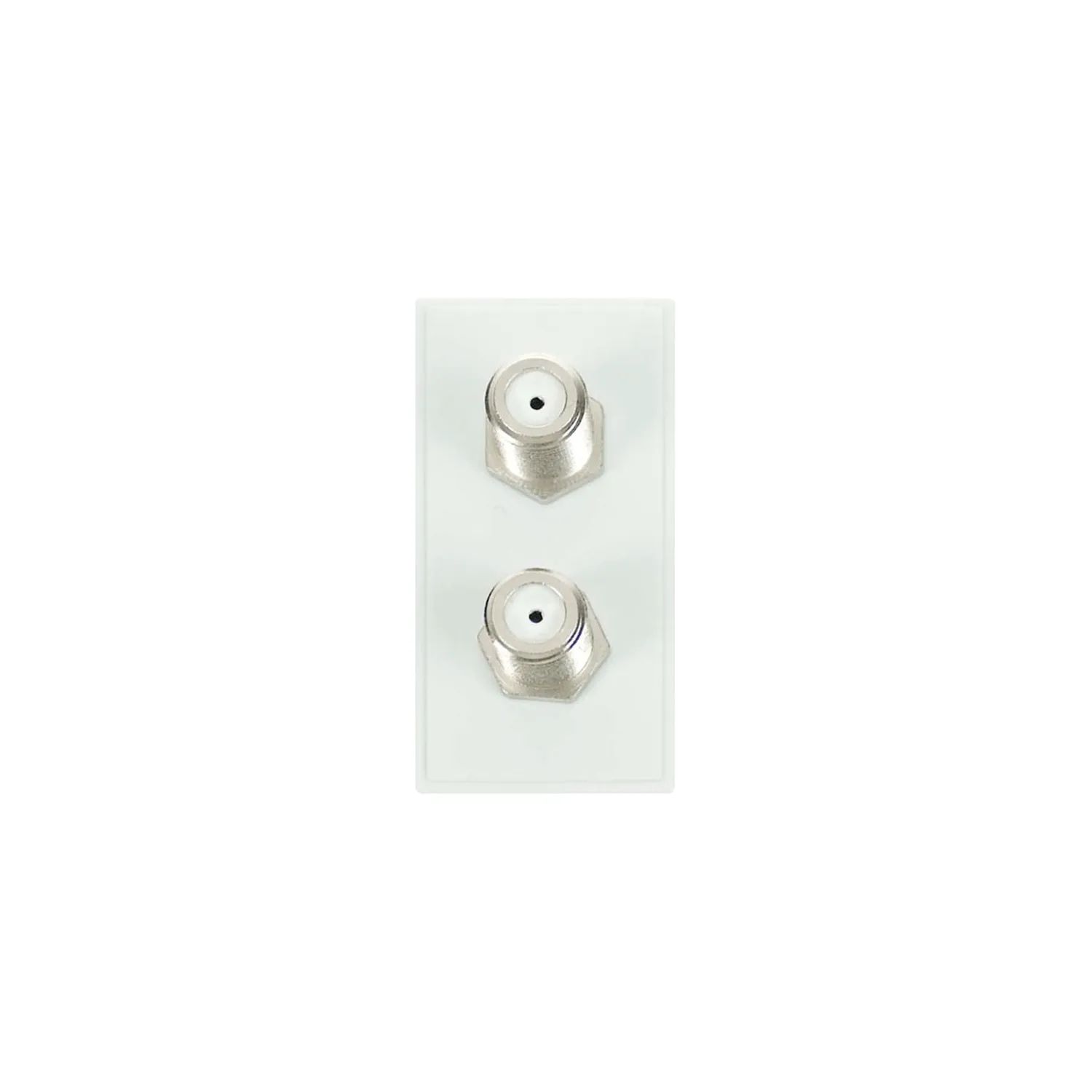

MM406WH

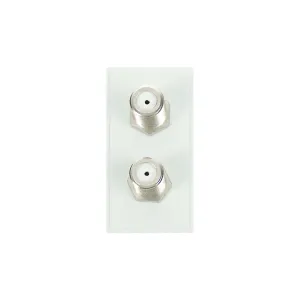

New Media Twin Female Satellite Module White MM406WH

New Media Twin Female Satellite Module White MM406WH

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MM406WH
GTIN —
Stock status: In stock

priced individually

Net price: £8.16

Gross price

£9.79

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Twin female satellite module for the New Media range. Mounts in standard back boxes with 35mm minimum depth (47mm for flat plate). Type F connections on front and back, brass terminals throughout.

  • IP20 rated
  • Operating temperature -5 to +40°C
  • Polycarbonate cover
  • 2-year warranty
  • Use soft, dry cloth for cleaning only
Specifications

Product Code

MM406WH

Type

Twin Female Satellite Module

Colour

Polar White

Connections

Type F front and back

Terminals

Brass

Cover Material

Polycarbonate

IP Rating

IP20

Operating Temperature

-5 to +40°C

Minimum Back Box Depth

35mm (47mm flat plate)

Dimensions (W x H x D)

25 x 50 x 15mm

Overall Dimensions (W x H x D)

25 x 50 x 27.5mm

Warranty

2 years

What's included

1x Twin Female Satellite Module

Installation instructions

Documents

datasheet MM406WH Datasheet

Frequently asked questions

Will this fit other brand euro grid plates?

Yes, this is a standard 25x50mm euro module that fits all manufacturers' euro grid plates. Euro modules are interchangeable across brands including Click, BG, MK, and Knightsbridge systems.

What back box depth do I need for this module?

Minimum 35mm back box depth for standard mounting. If using flat plate systems, increase to 47mm minimum depth. Overall module depth including terminals is 27.5mm.

What type of satellite connection does this module use?

Type F satellite connection on both front and rear terminals. This allows through-wiring configurations or connection of two separate satellite feeds.

How do I install this module into a grid plate?

The module clips directly into the 25x50mm aperture in your euro grid plate. No additional fixings required - the module's spring clips secure it into the plate aperture.
