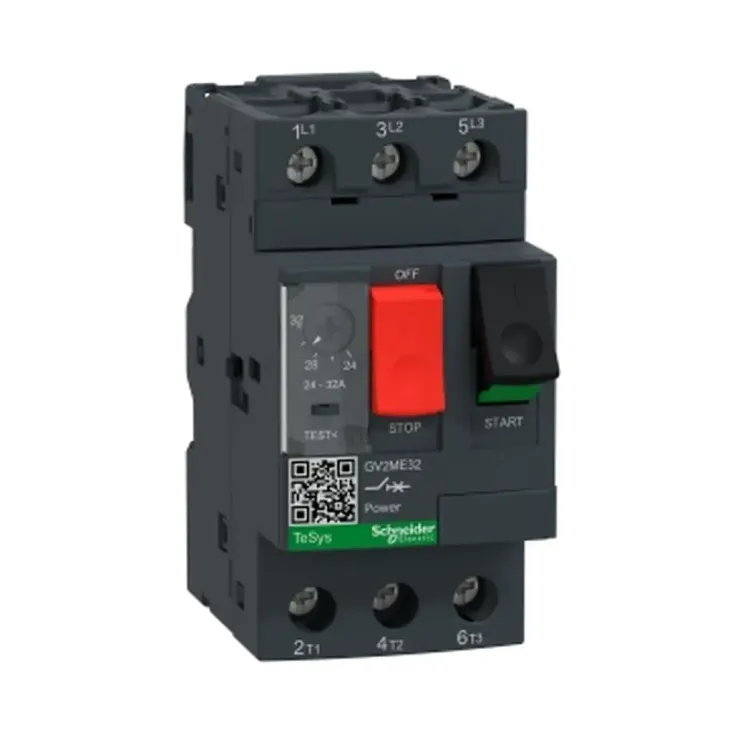

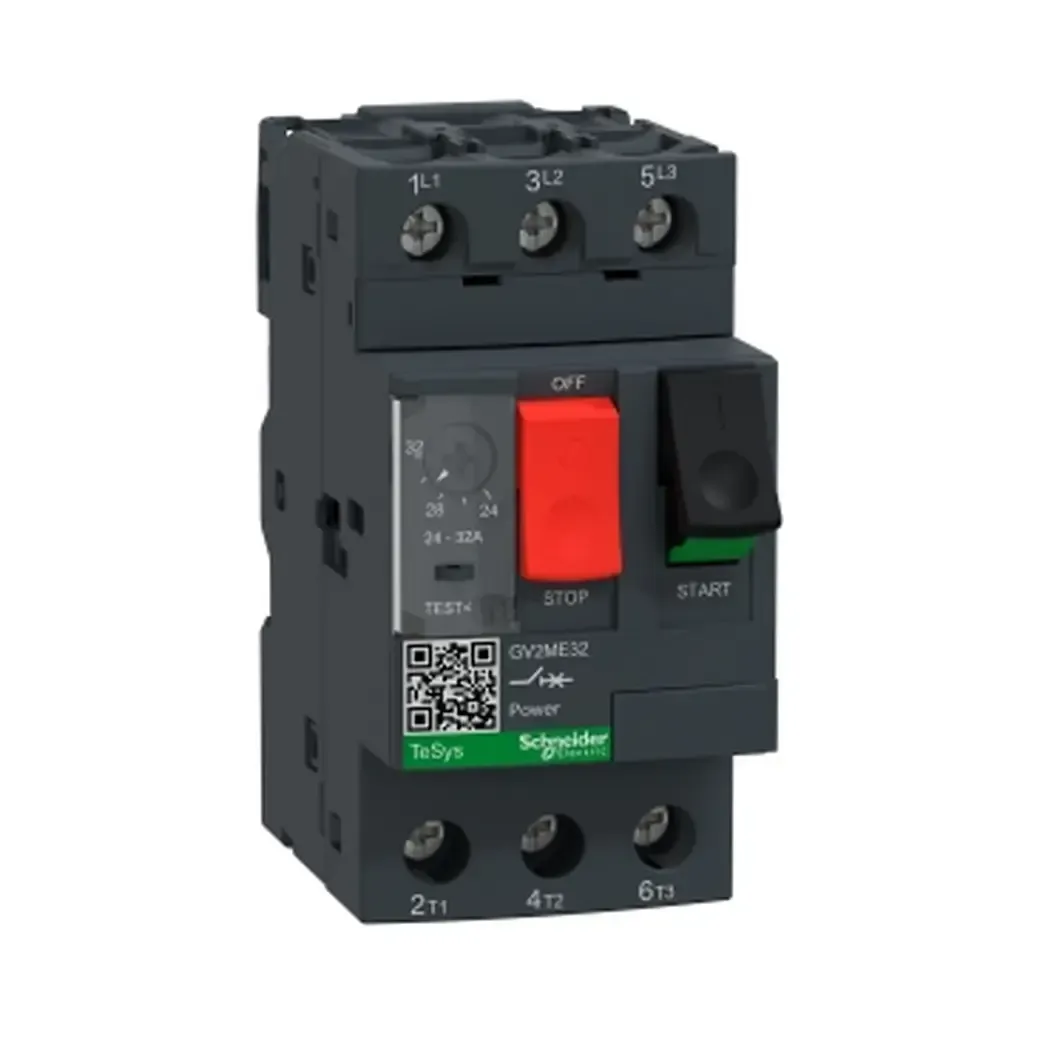

Manual Starter 24-32A Schneider
The TeSys GV motor circuit breaker is a 3-pole device designed for 3-phase motor applications, providing thermal-magnetic protection with a thermal setting range of 24-32A. It has magnetic tripping at 13xIn with a high breaking capacity of Icu 10kA at 400V. The connection is made easy with screw clamp terminals, and the start-stop control is achieved by push-button for 100,000 cycles AC-3. Certified by multiple standards (IEC, UL, CSA, CCC, EAC, Marine, ATEX) and Green Premium compliant (RoHS/REACh).
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
Poles
3
-
Control
Start-Stop Push-Button
-
Voltage
690V
-
Terminals
Screw Clamp
-
Compliance
Green Premium (RoHS/REACh)
-
Motor Power
15kW @ 400V
-
Rated Current
24-32A
-
Certifications
IEC, UL, CSA, CCC, EAC, Marine, ATEX
-
Breaking Capacity
Icu 10kA @ 400V
