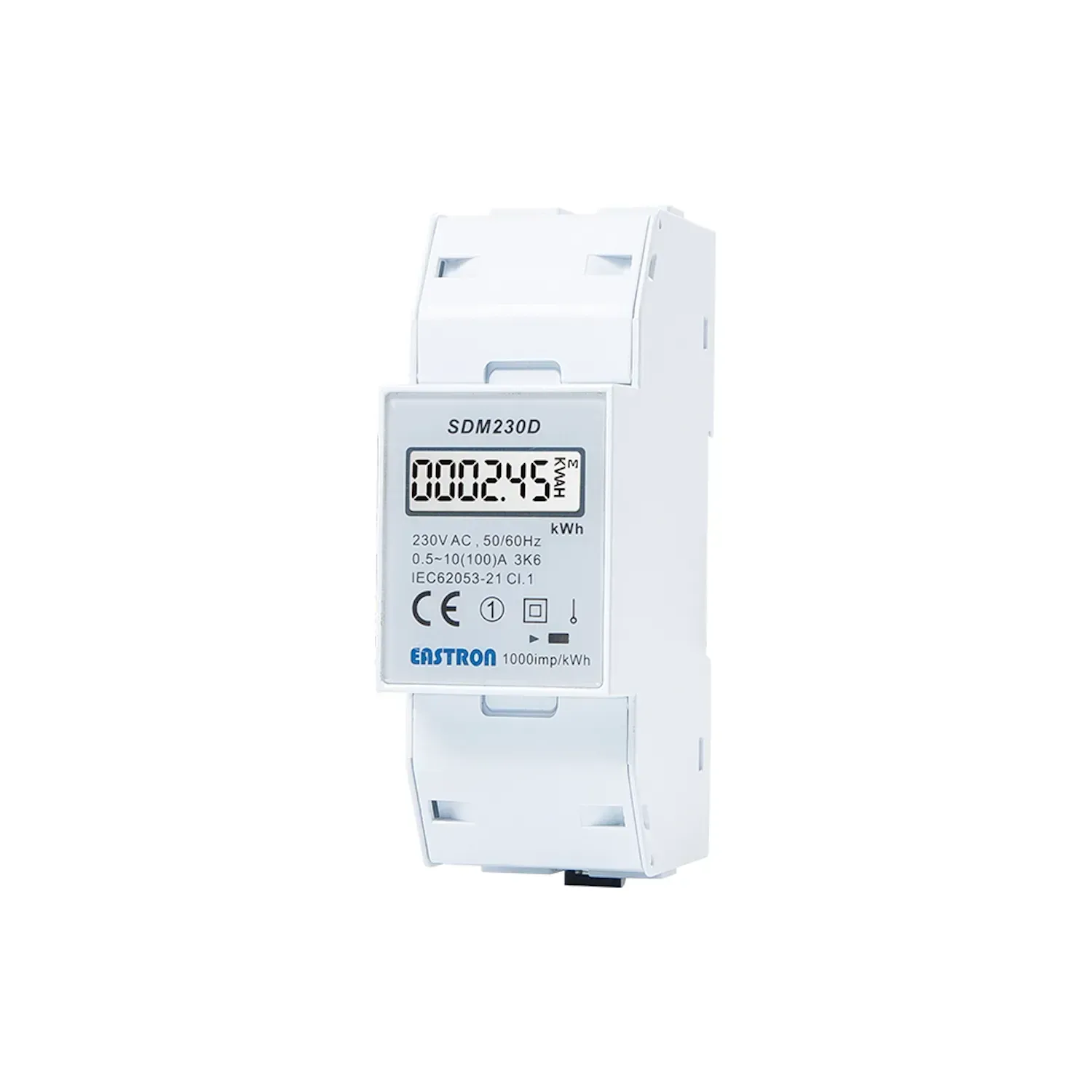

Single Phase 100A LCD Display kWh Meter | Din Rail | Pulse Output

Name: Single Phase 100A LCD Display kWh Meter | Din Rail | Pulse Output
SKU: SDM230D
Availability: InStock

This single phase electronic kWh meter features a clear LCD display and pulse output, supporting direct loads up to 100A. Designed for DIN rail installation, it measures active energy on 230V systems. Its compact two-module form factor and IEC Class 1.0 accuracy make it ideal for solar and commercial metering applications.

Stock Code SDM230D

MPN —

GTIN —

In stock

£89.89

incl. VAT, 20% priced individually

Product Features

Measurement Type	RMS on single phase AC system (1P+N)
Display	LCD display
Pulse Output	Active energy pulse output (SDM230A/SDM230D)
Maximum Current	100A direct input
Rated Current	10A
Minimum Current	0.5A
Starting Current	40mA
Voltage	Rated 230V, operates 80%~120% of Un
Module Size	2 module (36mm width)
Accuracy	IEC 62053-21 Class 1.0 / EN50470-1/3 Class B
