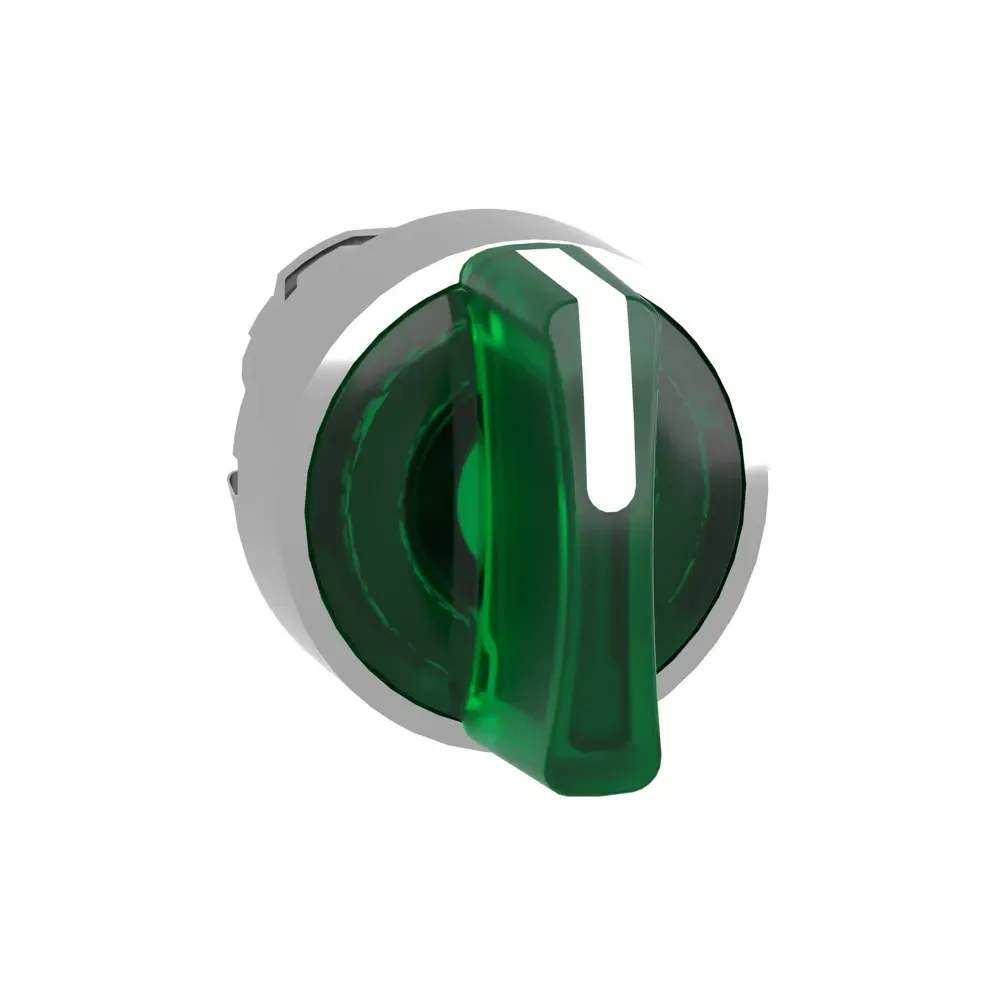

Schneider Electric 3 Position Illuminated Selector Switch Head | Green Handle | 22mm
This Schneider Electric Harmony XB4 illuminated selector switch head features a green handle and 3-position configuration, ideal for panel and machinery control. Built from chromium-plated metal, it supports universal LED compatibility and ensures high visibility in demanding environments. Its robust design delivers IP66/67/69 protection, NEMA 4X/13 compliance, and 500,000 cycle mechanical durability. Simple spring-return operation and wide temperature tolerance make it a reliable choice for OEM
Product Information
Product Features
Applications & Uses
Industrial Control Panels
Widely used in manufacturing automation panels where robust selector switches with illumination provide enhanced operator feedback and status indication.
Machinery Control Stations
Ideal for machine control stations requiring 3-position switching, quick position identification via green illumination, and high ingress protection ratings.
Installation Guidelines
Panel Cut-out Requirements
Ensure a finished panel hole of 22.5 mm diameter with cumulative tolerance not exceeding 0.3 mm, and minimum circuit board thickness of 1.6 mm.
Fixing Instructions
Align fixing centers horizontally every 90 mm and vertically every 120 mm; tighten fixing screws with maximum torque of 0.6 N.m for secure mounting.
Standards & Compliance
Ingress Protection
Achieves IP66, IP67, IP69, and IP69K ratings as per IEC 60529, ensuring suitability for washdown and harsh environment applications.
Safety and Quality Standards
Conforms to UL 508, IEC 60947, CSA C22.2 No 14, and is certified by BV, DNV, LROS, and UL for safe integration in global electrical installations.
Frequently Asked Questions
-
What panel cut-out size is required for this selector switch head?
The required panel cut-out diameter for the selector switch head is 22.5 mm, suitable for standard industrial control panel installations.
-
Is the switch head compatible with all Harmony XB4 selector switch bodies?
Yes, it is designed for universal LED compatibility within the Harmony XB4 range, ensuring integration with standard selector switch bodies.
-
What environmental protections does this switch offer?
The switch head offers IP66, IP67, IP69, and IP69K protection, as well as NEMA 4X and NEMA 13, for reliable performance in harsh industrial environments.
-
What is the mechanical durability of the selector switch head?
This selector switch head is rated for 500,000 operating cycles, providing long-term reliability for frequent operation in automation panels.
-
What is the operating temperature range for this product?
The operating temperature range is from -40°C to 70°C, making it suitable for use in both low and high temperature industrial environments.
