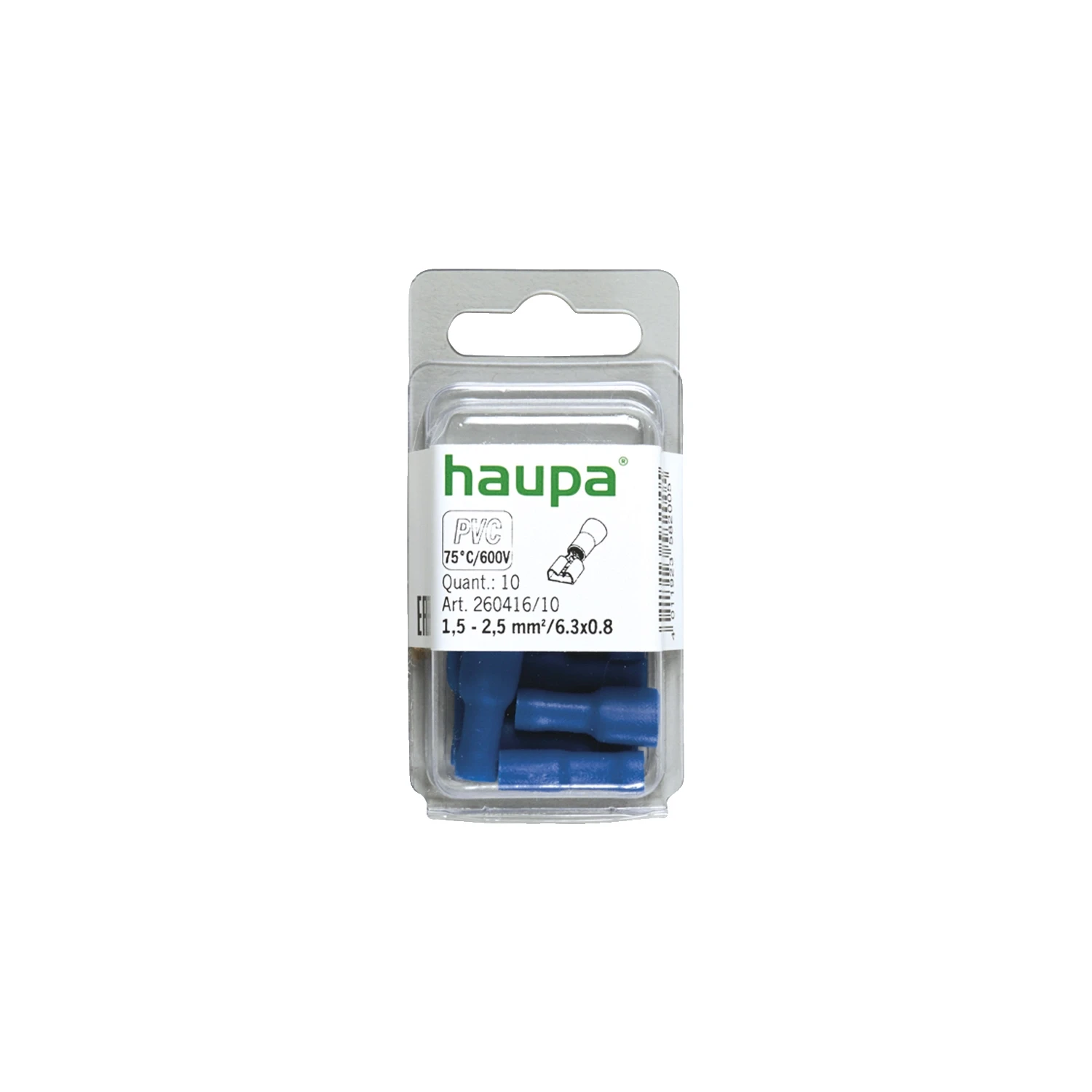

Haupa Insulated Female Socket Sleeve 1.5-2.5mm² 6.3x0.8 Blue Pack of 10

Photo is representative

Haupa Fully Insulated Female Spade Terminal 1.5-2.5mm2 Blue Pack of 10

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 26041610
GTIN —
Stock status: In stock

bag of 10

More arriving soon

Net price: £3.03

Gross price

£3.63

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

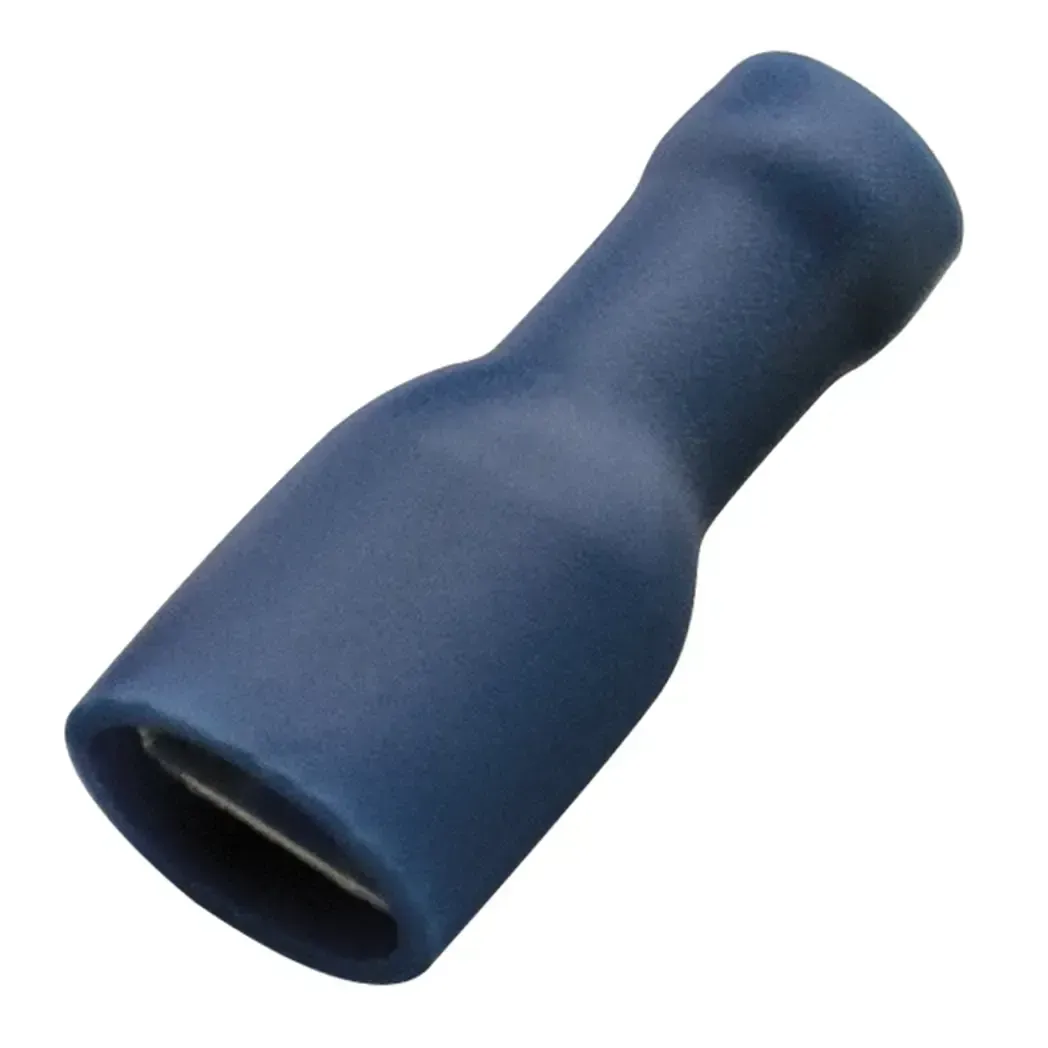

Fully insulated female spade terminal from Haupa. Takes a 6.3 × 0.8mm flat tab connector — standard fit for automotive, panel work, and general electrical assemblies.

Brass tin-plated sleeve with PVC insulation. Blue colour indicates 1.5–2.5mm² conductor range.

  • Wire range: 1.5–2.5mm²
  • Flat pin: 6.3 × 0.8mm
  • Socket length: 22mm, width: 11mm
  • Material: brass, tin-plated with PVC insulation
  • Pack: 10pc
Specifications

Wire Cross-Section

1.5–2.5 mm²

Flat Pin Connector Size

6.3 × 0.8 mm

Insulation Colour

Blue

Material

Brass, tin-plated

Insulation Material

PVC

Insulation Type

Fully insulated

Socket Internal Diameter (d1)

3.2 mm

Socket Length (TL)

22 mm

Socket Width (A)

11 mm

Socket Depth (c)

6.8 mm

Socket Base Width (B)

6.6 mm

Pack Quantity

10pc
