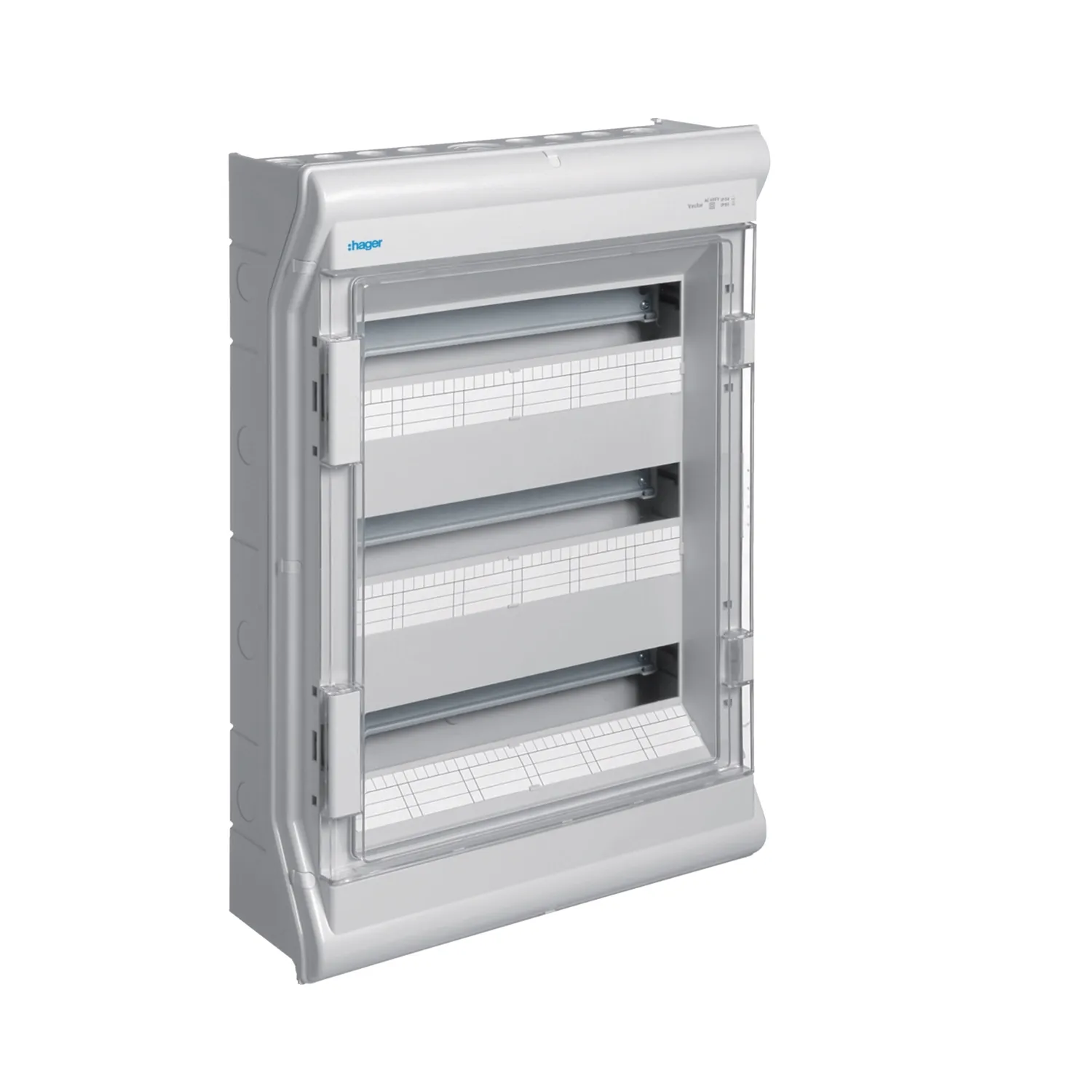

Hager VE318Y 3x18 Way Waterproof Enclosure IP65 63A 400V

Photo is representative

Hager VE318Y 3x18 Way Waterproof Enclosure IP65 63A 400V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VE318Y
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £155.94

Gross price

£187.13

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager VE318Y is a surface-mounted IP65 waterproof distribution board rated for 63A. Holds 54 modules across 3 rails in a 3x18 configuration with transparent snap-on door — no lock fitted.

  • IP65 ingress protection, IK07 impact resistance
  • 54 module capacity (3 rails × 18 modules)
  • 400V nominal supply voltage
  • 15 conduit inlets built in
  • Light grey polystyrene enclosure, Class II isolation
  • Glow wire test 750°C, RoHS compliant
Specifications

Nominal Voltage

400V

Rated Current

63A

IP Rating

IP65

IK Rating

IK07

Module Capacity

54 modules

Configuration

3 rails × 18 modules (3×18 way)

Conduit Inlets

15

Door Type

Transparent snap-on, no lock

Mounting

Surface mounting

Dimensions (H×W×D)

602 × 418 × 151 mm

Material

Polystyrene, RAL 7035 light grey

Protection Class

Isolation Class II

Glow Wire Test

750°C

RoHS Compliant

Yes

Documents

datasheet Hager VE318Y Datasheet
