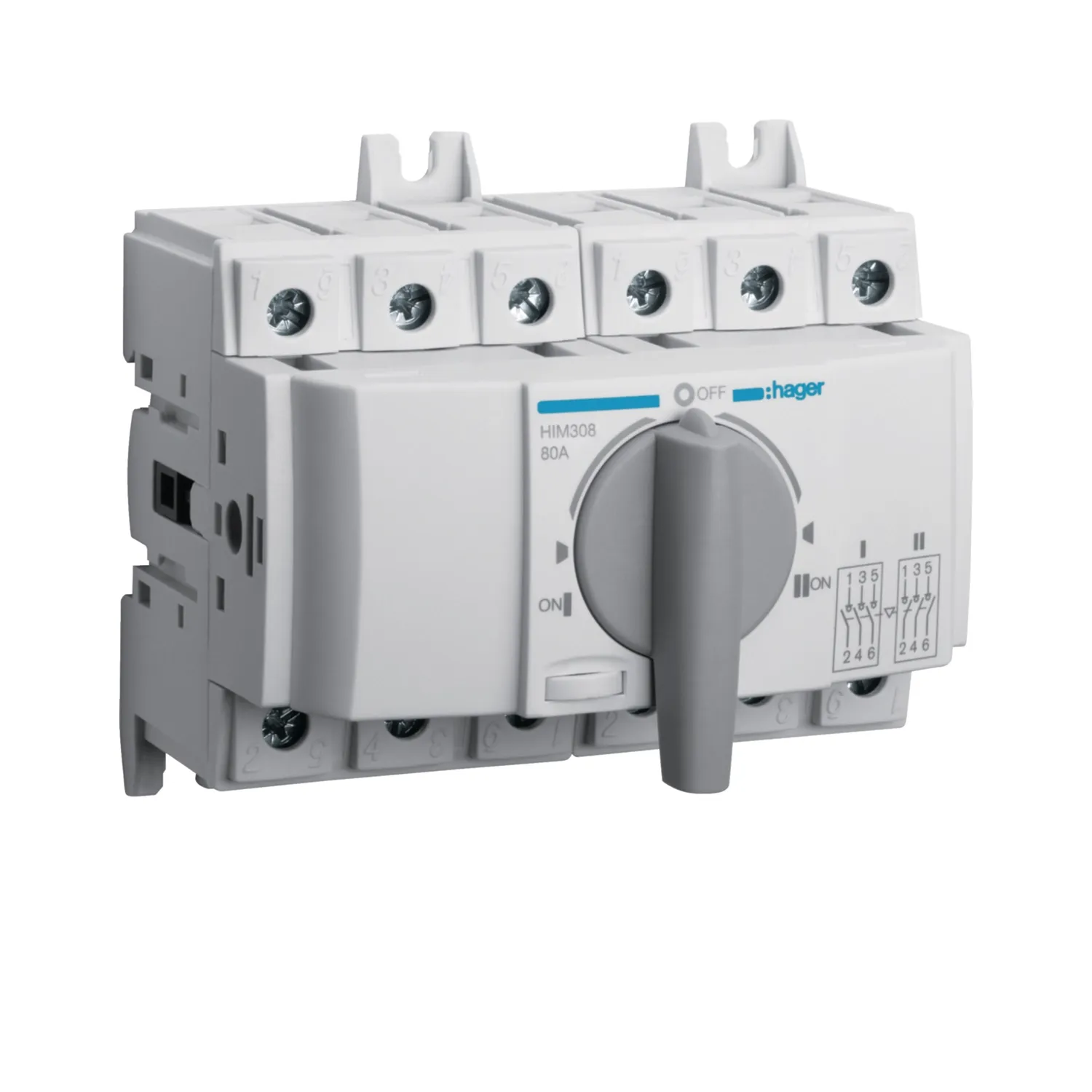

Hager HIM308 3P 80A Changeover Switch 380-415V IP20

Photo is representative

Hager HIM308 3P 80A Changeover Switch 380-415V IP20

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code HIM308
GTIN —
Stock status: 7 in stock

priced individually

More arriving soon

Net price: £203.15

Gross price

£243.79

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager HIM308 is a 3-pole modular changeover switch rated 80A for 380-415V AC circuits. Mains isolation and source selection in one unit—clips onto DIN rail as a 6-module block.

  • 80A rated current, 50kA conditional short-circuit capacity (gl-gG fuses)
  • Short rotary handle, interlockable cover
  • 2.5–35 mm² flexible or rigid conductor entry
  • Operating range −20°C to +70°C, 50–60 Hz
Specifications

Rated Operational Voltage

380–415V AC

Rated Insulation Voltage

800V

Rated Current

80A

Rated Short-Time Withstand Current (Icw)

1.50kA (IEC 60947)

Conditional Short-Circuit Current (Icc)

50kA (with gl-gG fuses)

Poles

3P

Ingress Protection

IP20

Operating Temperature

-20°C to +70°C

Frequency

50–60Hz

Module Width

6 modules

Dimensions (H×W×D)

93.5mm × 105mm × 110mm

Cable Entry

2.5–35mm² (flexible or rigid)

RoHS Compliant

Yes

Documents

datasheet Hager HIM308 Datasheet
