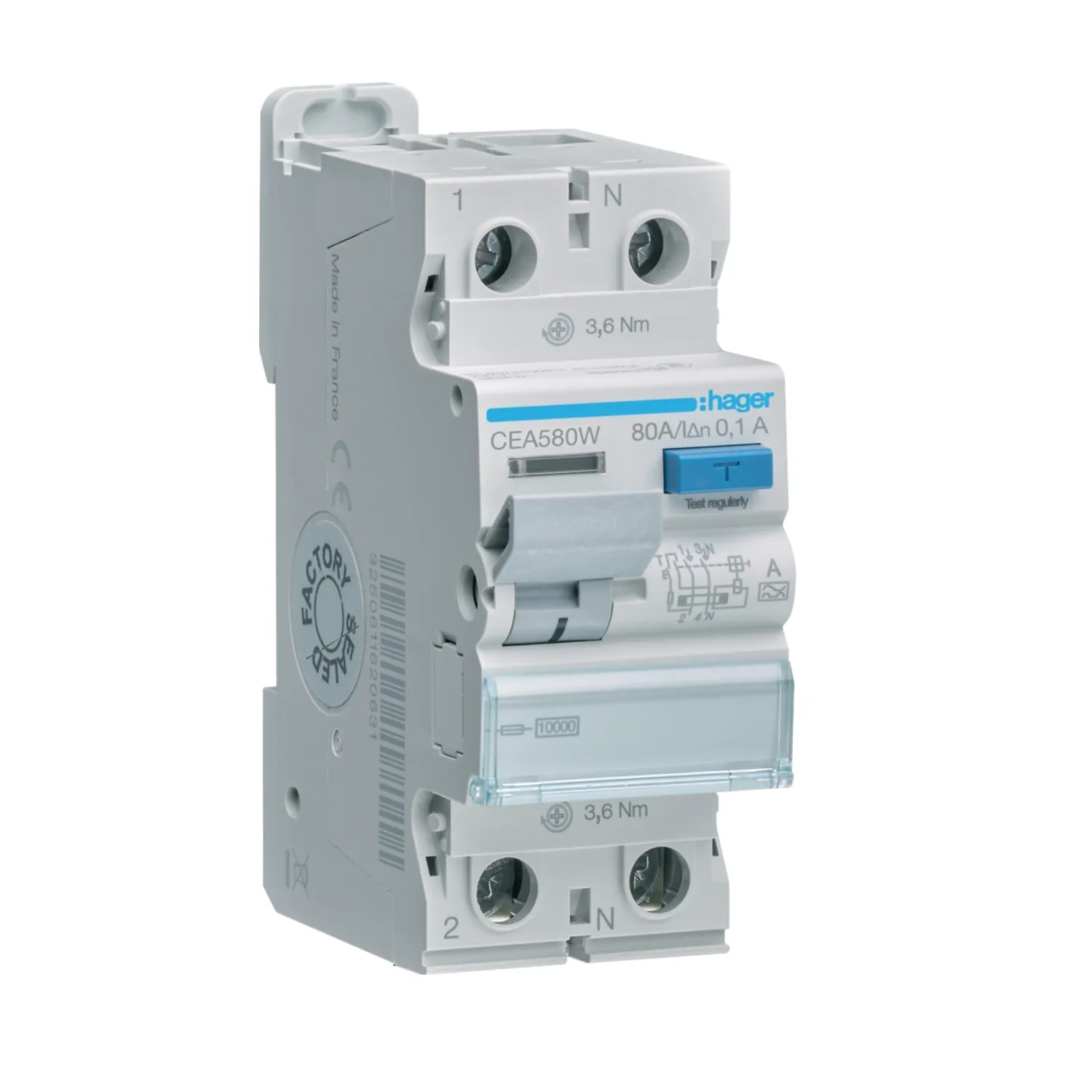

Hager CEA580W 80A 100mA 1P+N RCD Type A 10kA

Photo is representative

Hager CEA580W 80A 100mA 1P+N RCD Type A 10kA

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code CEA580W
GTIN 3250611625056
Stock status: 4 in stock

priced individually

Net price: £123.68

Gross price

£148.42

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager CEA580W residual current device (RCCB) rated 80A, 100mA Type A. Protects circuits against earth faults and leakage current. Clips onto DIN rail, takes 2 modules.

  • 80A rated current, 100mA residual operating current
  • 10kA conditional short-circuit current (EN 61008-1)
  • Type A: detects AC and pulsating DC residual currents
  • 230V AC, 50-60Hz
  • Operating range -25°C to 65°C
Specifications

Poles

1P+N

Rated Current

80A

Residual Operating Current

100mA

Type

A

Breaking Capacity

1.25kA

Conditional Short-Circuit Current

10kA (EN 61008-1)

Voltage

230V AC

Frequency

50-60Hz

IP Rating

IP20

Mounting

DIN rail

Module Width

2 modules (36mm)

Operating Temperature

-25°C to 65°C

Dimensions

85mm H × 36mm W × 70mm D

Terminal Type

Screw terminal

Cable Range

Solid 1-50mm², Flexible 1-35mm²

Documents

datasheet Hager CEA580W Datasheet
