CDA263U - Hager 2 Pole 63 Amp 30mA A Class RCD / RCCB CDA263U

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

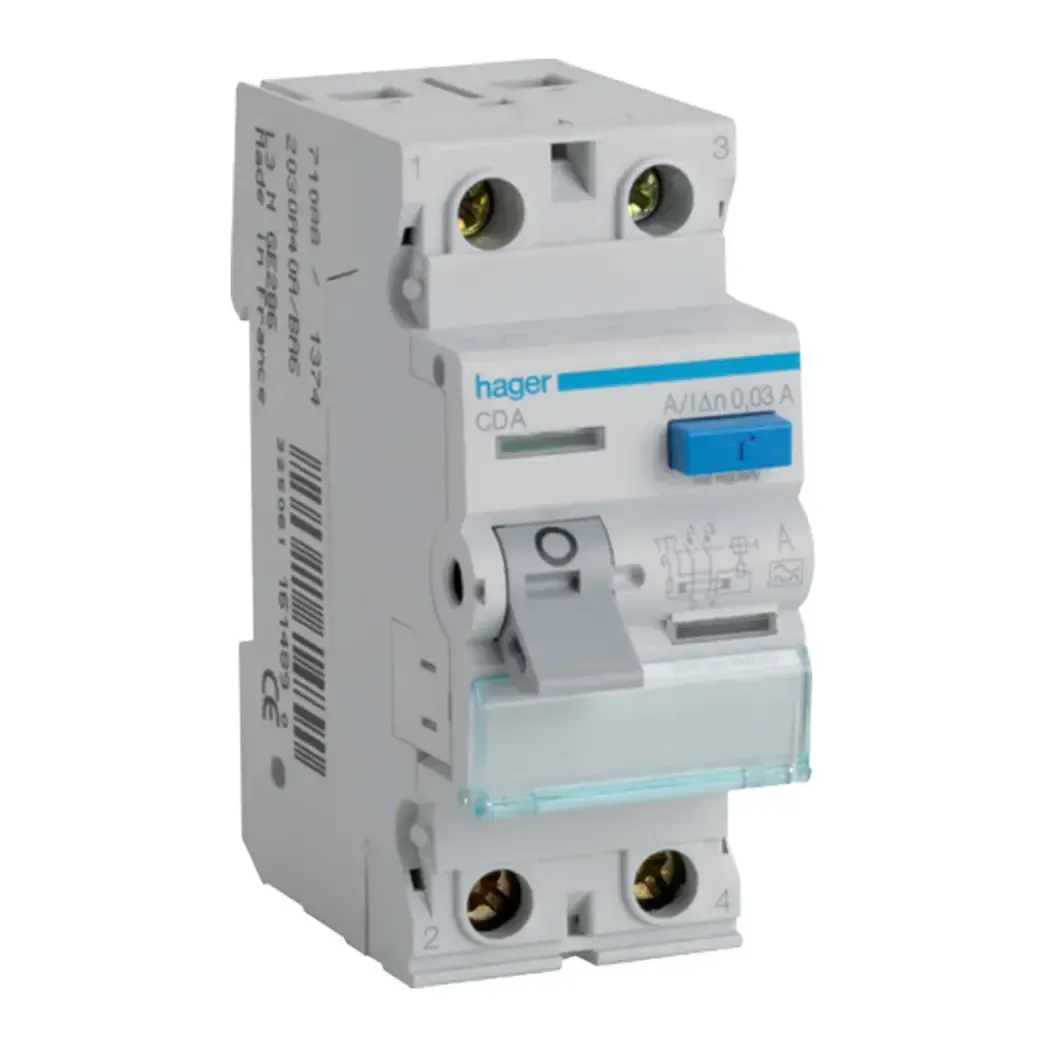

Hager 2 Pole 63 Amp 30mA A Class RCD / RCCB CDA263U

The Hager 2 Pole 63 Amp 30mA A Class RCD / RCCB CDA263U provides reliable protection with a rated current of 63A and a residual operating current of 30mA. It has a breaking capacity of 1.5 kA and is designed for easy installation with dimensions of 70mm depth, 83mm height, and 35mm width.

Stock Code CDA263U
In stock
Price 47.25 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • SKU

    CDA263U

  • Standard

    BS 61008-1 EN 61008-1

  • Frequency

    50 Hz

  • Rated Current

    63 A

  • Number of Poles

    2

  • Neutral Position

    Right

  • Number of Modules

    2

  • Operating Temperature

    -25°C to 40°C

  • Residual Current Type

    A

  • Total Power Loss Under IN

    8.1 W

  • Residual Current Trip Mode

    Undelayed

  • Residual Operating Current

    30 mA

  • Short-Time Delayed Tripping

    No

  • Breaking and Opening Capacity

    1.5 kA

  • Rated Conditional Short-Circuit Current

    6 kA

Brand

Hager
