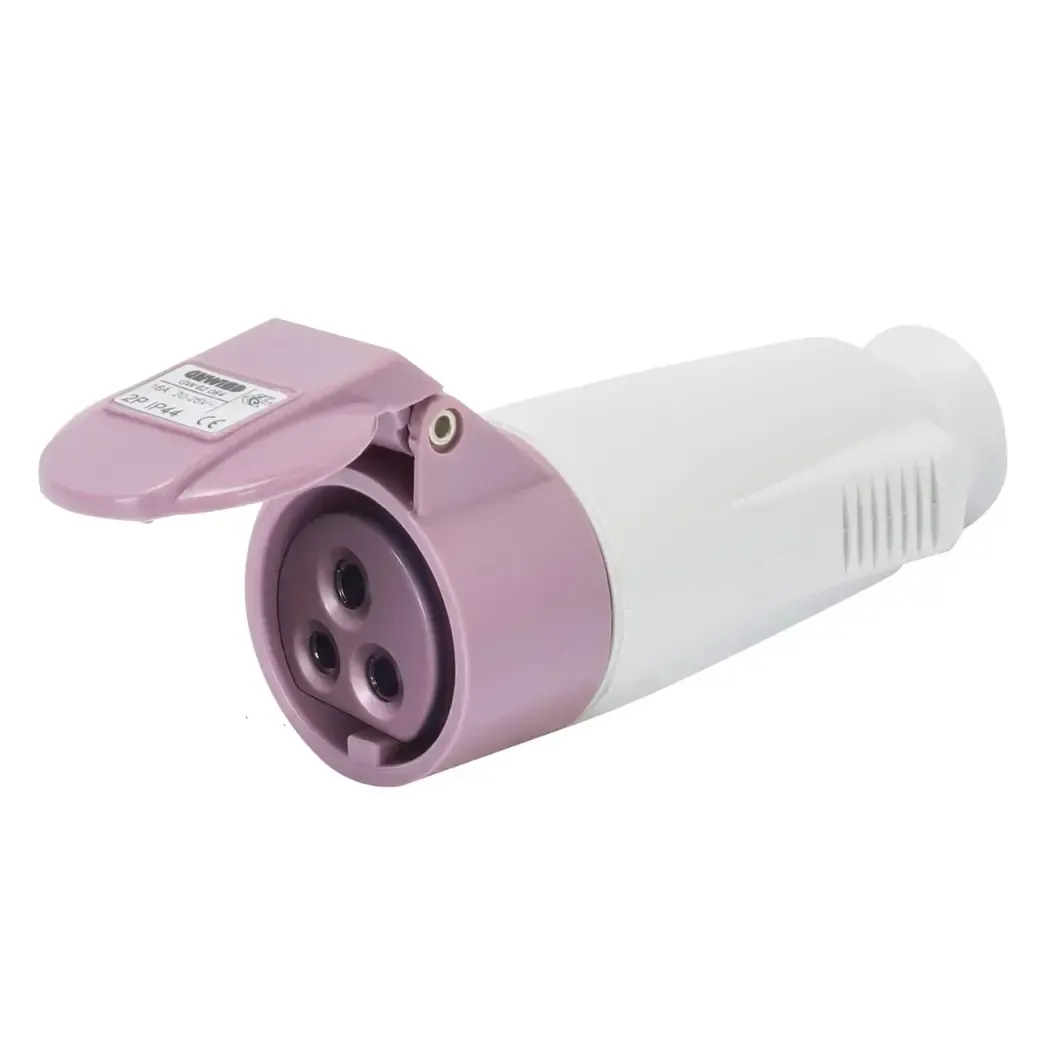

Photo is representative

Gewiss Coupler 3P 16A 24V IP44 GW62065

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GW62065
GTIN
Stock status: In stock

priced individually

Net price: £22.27

Gross price

£26.72

Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 30 day returns

The Gewiss Coupler 3P 16A 24V IP44 GW62065 is a straight connector with a 3-pin configuration, suitable for 16 Amp current rating and 24 Voltage rating. It is designed for industrial applications operating on voltages below 50 V and complies with international standards (IEC 60309, EN 60309, CEI 23-12). The coupler features anti-loosening terminals with unlosable screws, an anti-abrasion cable gland, and built-in cable clamp.

Specifications

Frequency

50-60 Hz

IP Degree

IP44

No. of Poles

3P

Rated Current

16 A

Rated Voltage

20-25 V

Type of Wiring

With screw

Permissible Overload

22 A

Insulation Resistance

> 10 M

Mechanical Resistance

IK08

Operating Temperature

-25 +40 C

Total Number of Operations

> 5000

Breaking Capacity at 1.1 Un

20 A

Terminal Tightening Capacity

1-2.5mm flexible cables, 1.5-4mm rigid cables
