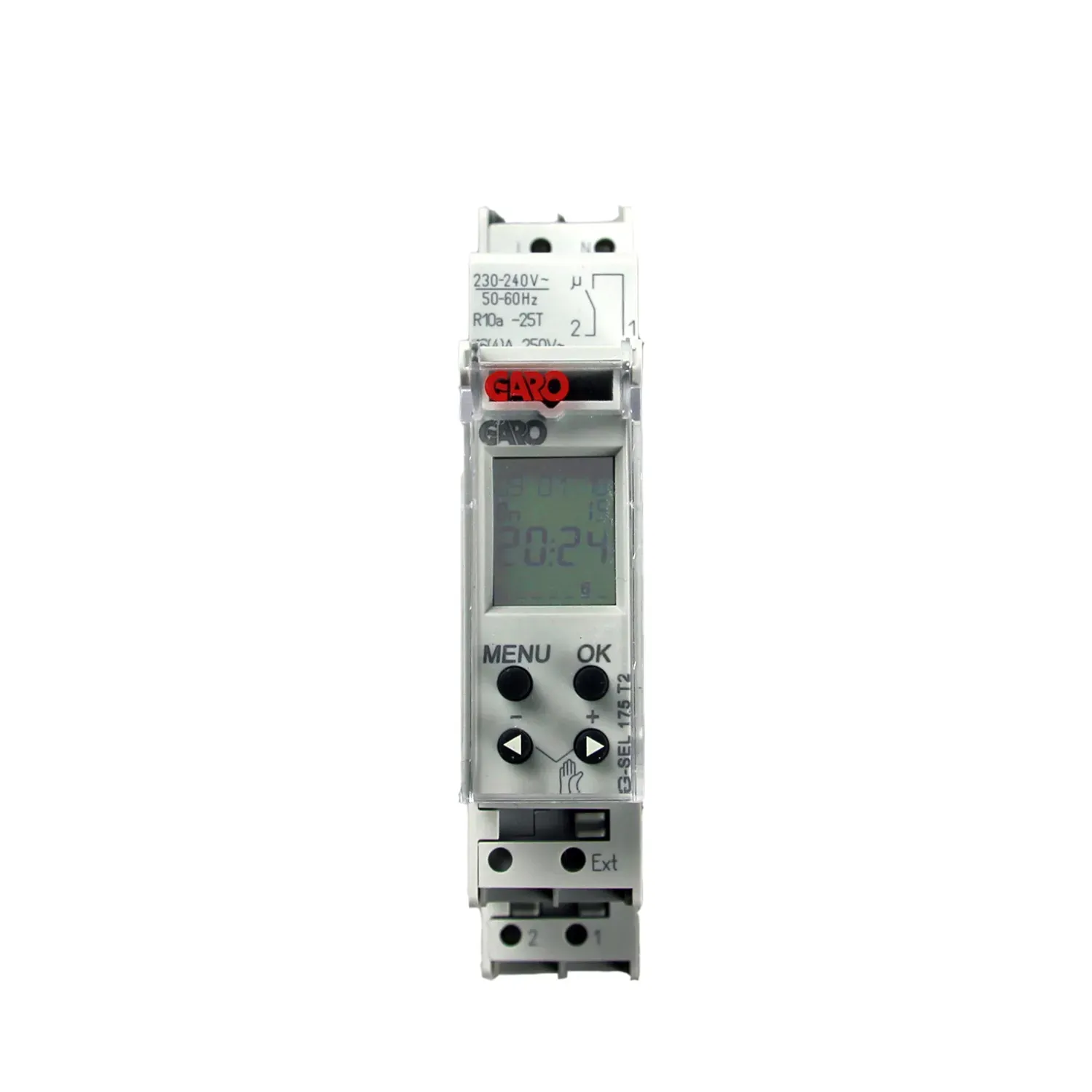

GARO 7 Day 1 Channel DIN Rail Time Clock 230-240V AC 16A

Photo is representative

GARO 7 Day 1 Channel DIN Rail Time Clock 230-240V AC 16A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code ASTROIKT3
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £57.80

Gross price

£69.36

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

GARO 7 day digital time clock with daily and weekly programming. Single channel output, DIN rail mount. Handles most loads from incandescent through to LED circuits within rated capacity.

  • 230-240V AC, 50-60 Hz
  • Max 16 A @ 250 V (cosϕ = 1)
  • 1 min minimum switching time
  • IP20, Class II protection
  • ±0.25 s/day time accuracy
Specifications

Operating Voltage

230–240 V AC +10% / –15%

Frequency

50–60 Hz

Power Consumption

max 0.4 W

Max Switching Capacity

16 A at 250 V (cosϕ = 1)

Switching Capacity (cosϕ = 0.6)

4 A at 250 V

Minimum Switching Capacity

10 mA / 230 V AC; 100 mA / 24 V AC/DC

Shortest Switching Time

1 min

IP Rating

IP 20 per EN 60529

Protection Class

II per EN 60730-1

Operating Temperature

–25 °C to +55 °C

Time Accuracy

±0.25 s/day at 25 °C

Rated Impulse Withstand Voltage

4 kV

Power Reserve

10 years at +20 °C

Contact Type

Two way switch

Documents

datasheet ASTROIKT3 Datasheet
