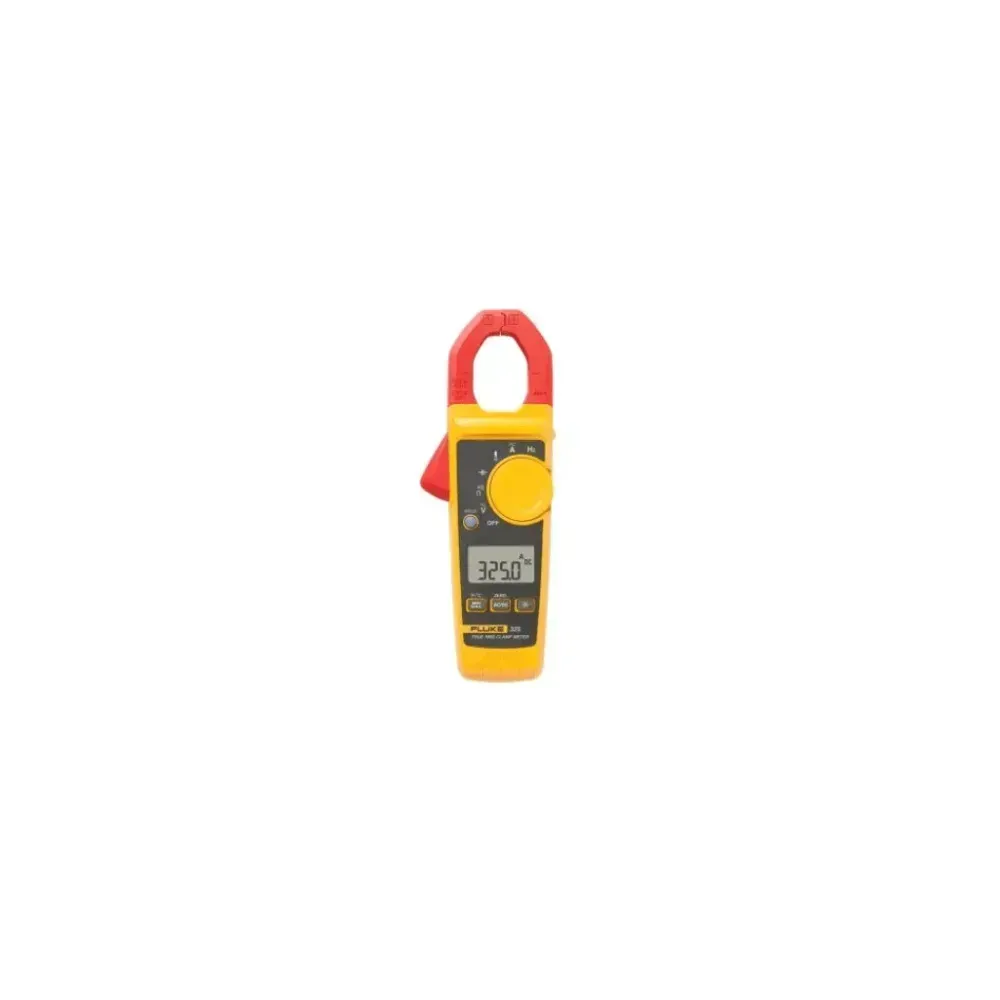

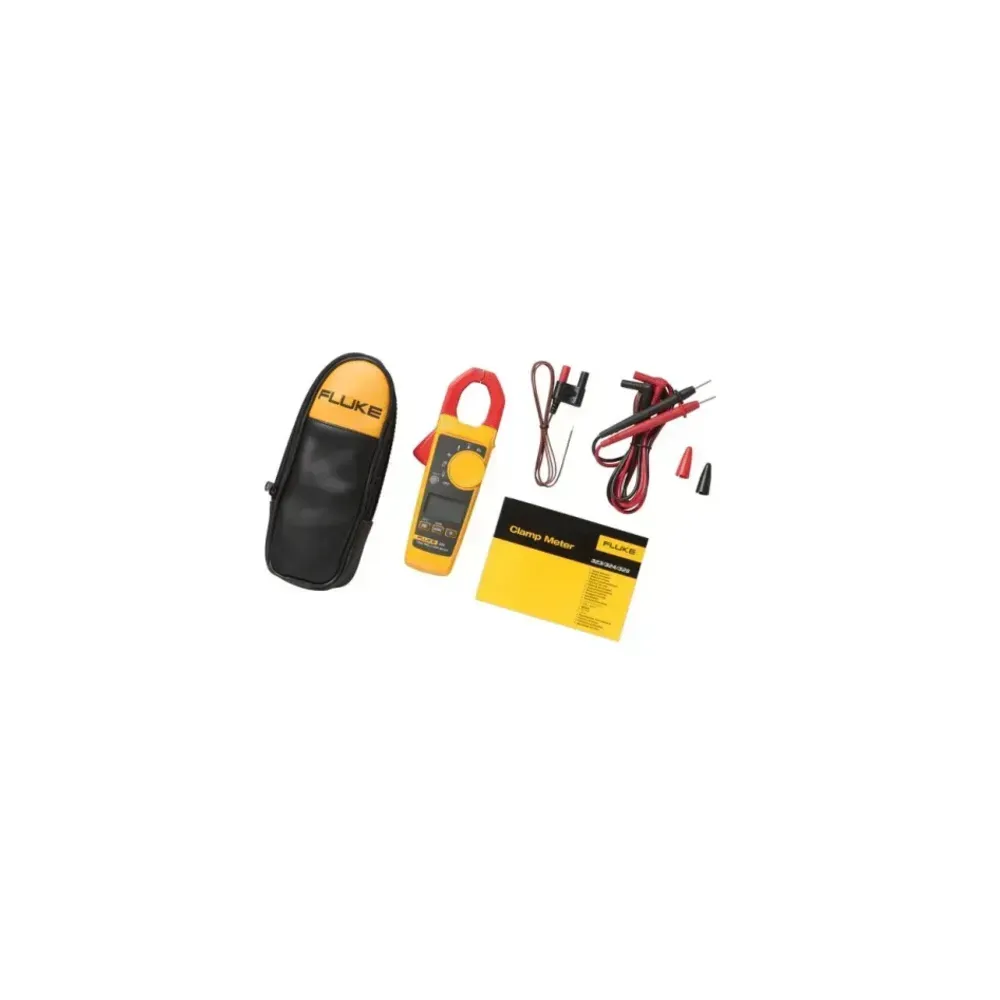

Fluke 325 True RMS AC/DC Clamp Meter
The Fluke 325 is a True RMS AC/DC Clamp Meter designed for accurate current and voltage measurements.
- Measures AC and DC current up to 400A.
- True RMS for accurate readings on non-sinusoidal waveforms.
- CAT III 600V / CAT IV 300V safety rating.
Stock Code
325
Few in stock
Price 280.38 £
incl. VAT, 20%
priced per set
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
Weight
283 g
-
Frequency
5.0 Hz to 500.0 Hz
-
Continuity
≤ 30 Ω
-
Dimensions
207 x 75 x 34 mm
-
AC Response
True RMS
-
Capacitance
0 to 100.0 μF / 100μF to 1000 μF
-
Safety Rating
CAT III 600 V / CAT IV 300 V
-
AC Current Range
40.00 A / 400.0 A
-
AC Voltage Range
600.0 V
-
DC Current Range
40.00 A / 400.0 A
-
DC Voltage Range
600.0 V
-
Resistance Range
400.0 Ω / 4000 Ω / 40.00 kΩ
-
Max Wire Diameter
30 mm (600 MCM)
-
AC Current Accuracy
2% ± 5 digits (45 Hz to 65 Hz), 2.5% ± 5 digits (65 Hz to 400 Hz)
-
AC Voltage Accuracy
1.5% ± 5 digits
-
DC Current Accuracy
2% ± 5 digits
-
DC Voltage Accuracy
1.0% ± 5 digits
-
Resistance Accuracy
1.0% ± 5 digits
-
Temperature Measurement
-10.0°C to 400.0°C (14.0°F to 752.0°F)
