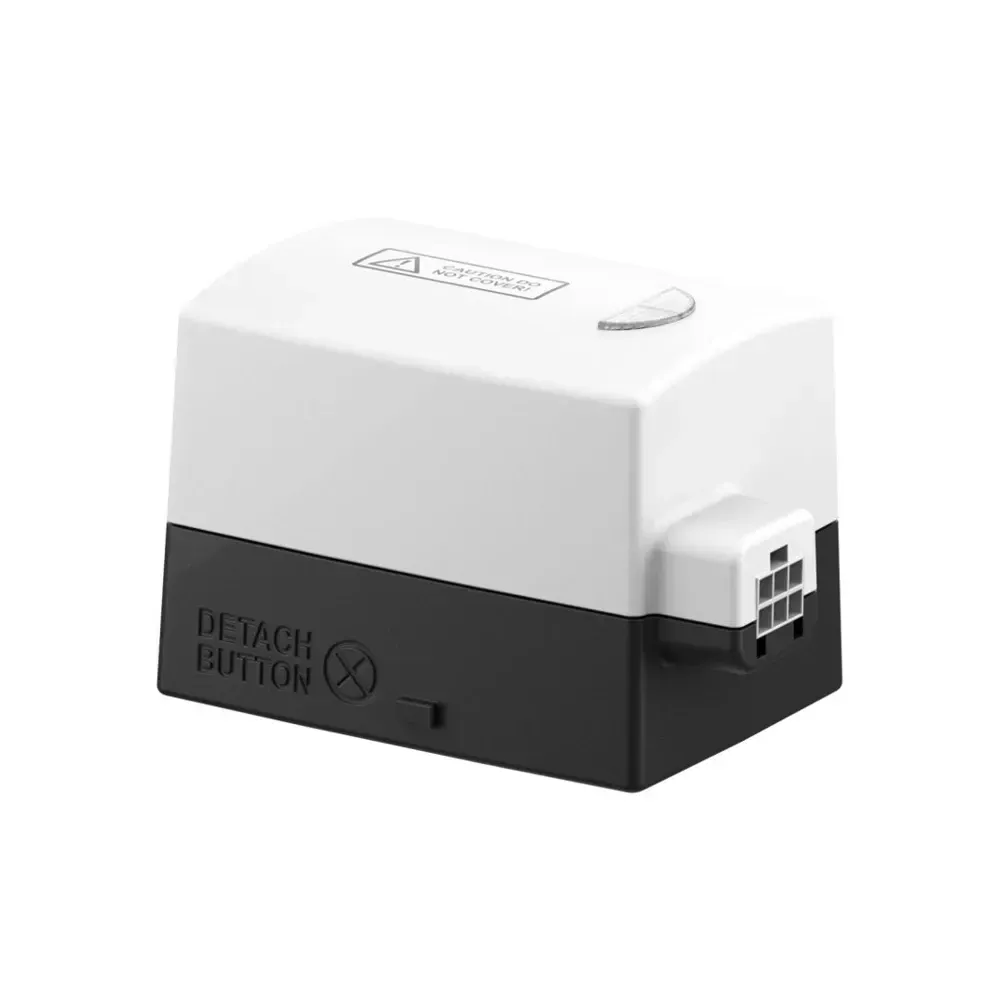

EPH Replacement Actuator - Side View

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

EPH Replacement Actuator

The EPH Replacement Actuator is a high-quality motorized device designed to control the flow of various systems. With a motor supply voltage of 230V and a power consumption of 5W, this actuator is suitable for a wide range of applications. It is compatible as a replacement for Danfoss(HP range), Sunvic(SZ, SZM, SM range), Potterton(PMV2 range), Landis and Gyr(SK2 range). The actuator features a rated impulse voltage of 2500V, a maximum ambient temperature of 50 deg C, and an auxiliary switch rating of 11(3)A. Its protection rating is IP20.

Stock Code DS1P
Few in stock
Price 65.77 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Replacement For

    Danfoss(HP range), Sunvic(SZ, SZM, SM range), Potterton(PMV2 range), Landis and Gyr(SK2 range)

  • Power Consumption

    5W

  • Protection Rating

    IP20

  • Motor Supply Voltage

    230V

  • Rated Impulse Voltage

    2500V

  • Auxiliary Switch Rating

    11(3)A

  • Max. Ambient Temperature

    50 deg C

  • mpn

    DS1P

Documents

Brand

EPH Controls
