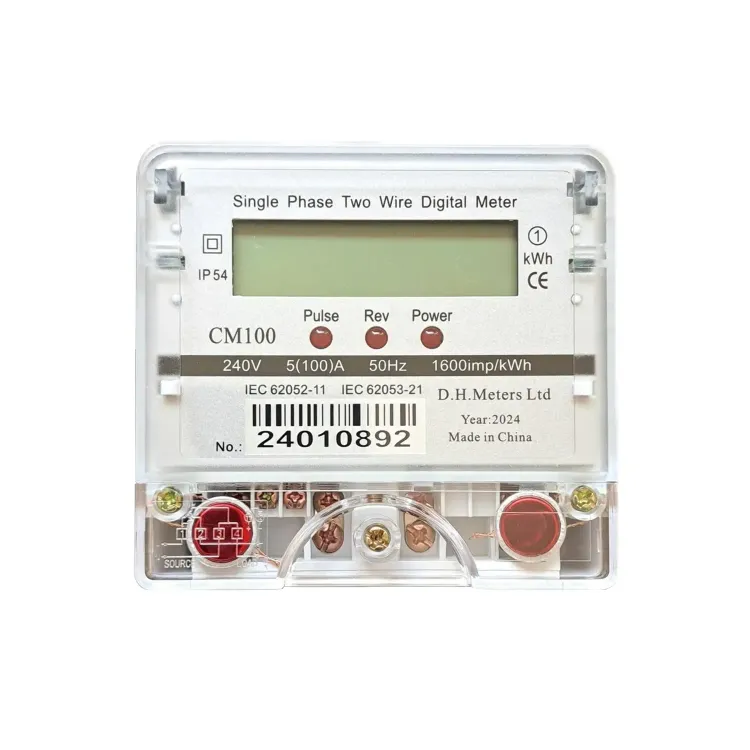

Photo is representative
Single Phase 100A Energy Meter, Bidirectional, IEC Certification, LCD Display
This Energy Meter is designed for single phase, 100A applications, offering precise bidirectional energy measurement and reverse energy calculation. Featuring Class 1 accuracy, IEC certification, and multiple display options, it supports various voltages. Engineered for professional installations, it’s suitable for demanding commercial and residential environments. Installation requires a protective, ventilated location and qualified personnel, ensuring safety and compliance for professional use
Product Information
Product Features
Installation Guidelines
Mounting Requirements
Install vertically on a fire-resistant wall, ensuring the meter does not exceed a 1° gradient. Maintain an installation height of around 1.8 meters for optimal performance.
Protection Measures
Use a protective enclosure in dusty locations or where mechanical damage may occur. Install only in ventilated, arid environments to ensure accurate operation and product longevity.
Standards & Compliance
- IEC62052-11 Guarantees general requirements, tests, and accuracy for electricity metering equipment, essential for professional installations.
- IEC62053-21 Specifies performance requirements for static meters for active energy, ensuring reliable and precise metering for billing and compliance.
Frequently Asked Questions
-
What is the maximum current supported by this energy meter?
This energy meter supports a maximum current of 100A, making it suitable for most residential and commercial single phase energy metering applications where higher current capacity is required.
-
Does this meter measure both forward and reverse energy flow?
Yes, the meter features true bidirectional measurement, accurately recording both forward and reverse energy consumption. Reverse energy is calculated into the forward value, ensuring comprehensive monitoring.
-
What installation conditions are required for this meter?
The meter must be installed vertically in a ventilated, dry environment on a fire-resistant wall, at approximately 1.8m height. It should be enclosed in a protective box if exposed to dust or mechanical impact.
-
Which communication protocols are supported?
The meter supports optional RS485, Infrared, and Optical port communications, allowing integration with energy management systems for remote monitoring and data collection.
-
What safety and compliance standards does this energy meter meet?
The meter complies with IEC62052-11 and IEC62053-21 standards, ensuring it meets rigorous accuracy, safety, and performance criteria required for professional electrical installations.
