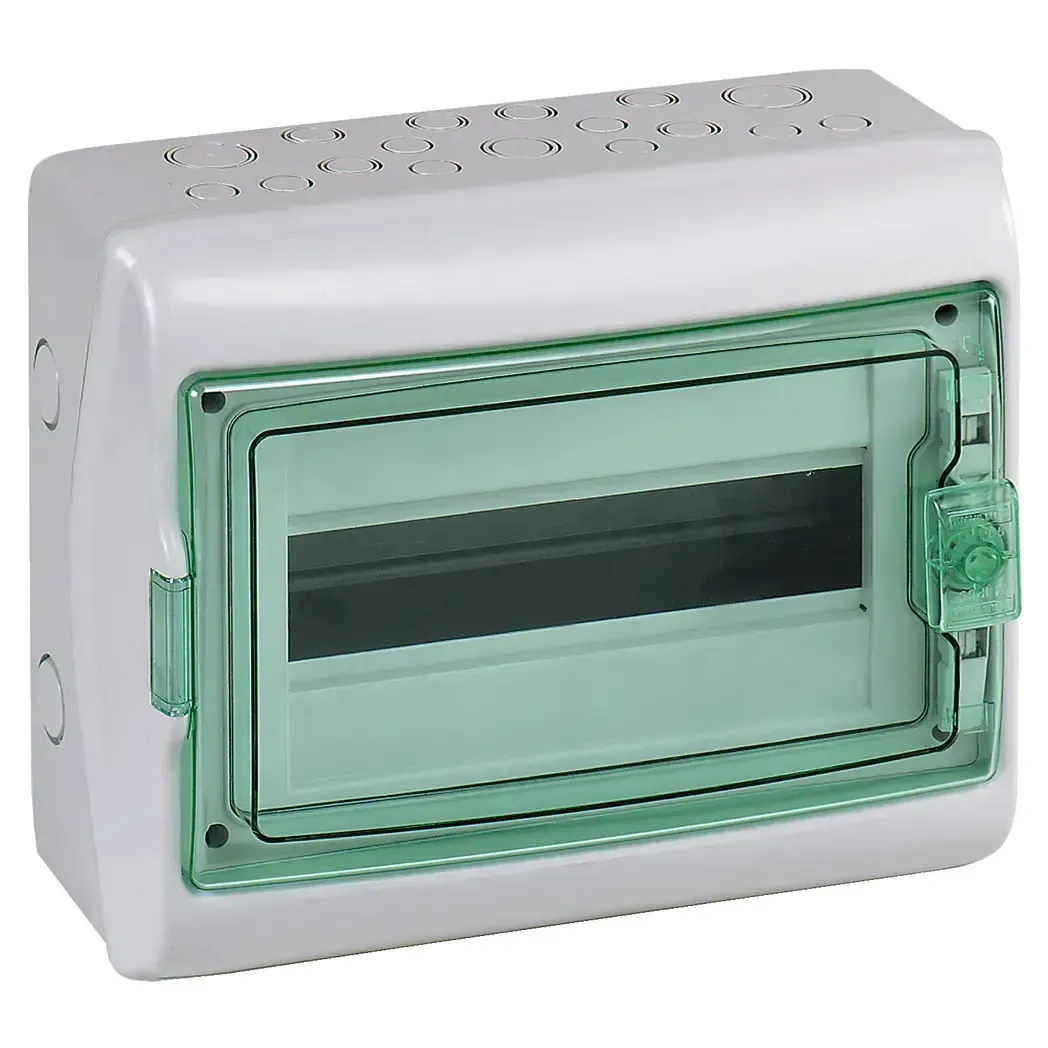

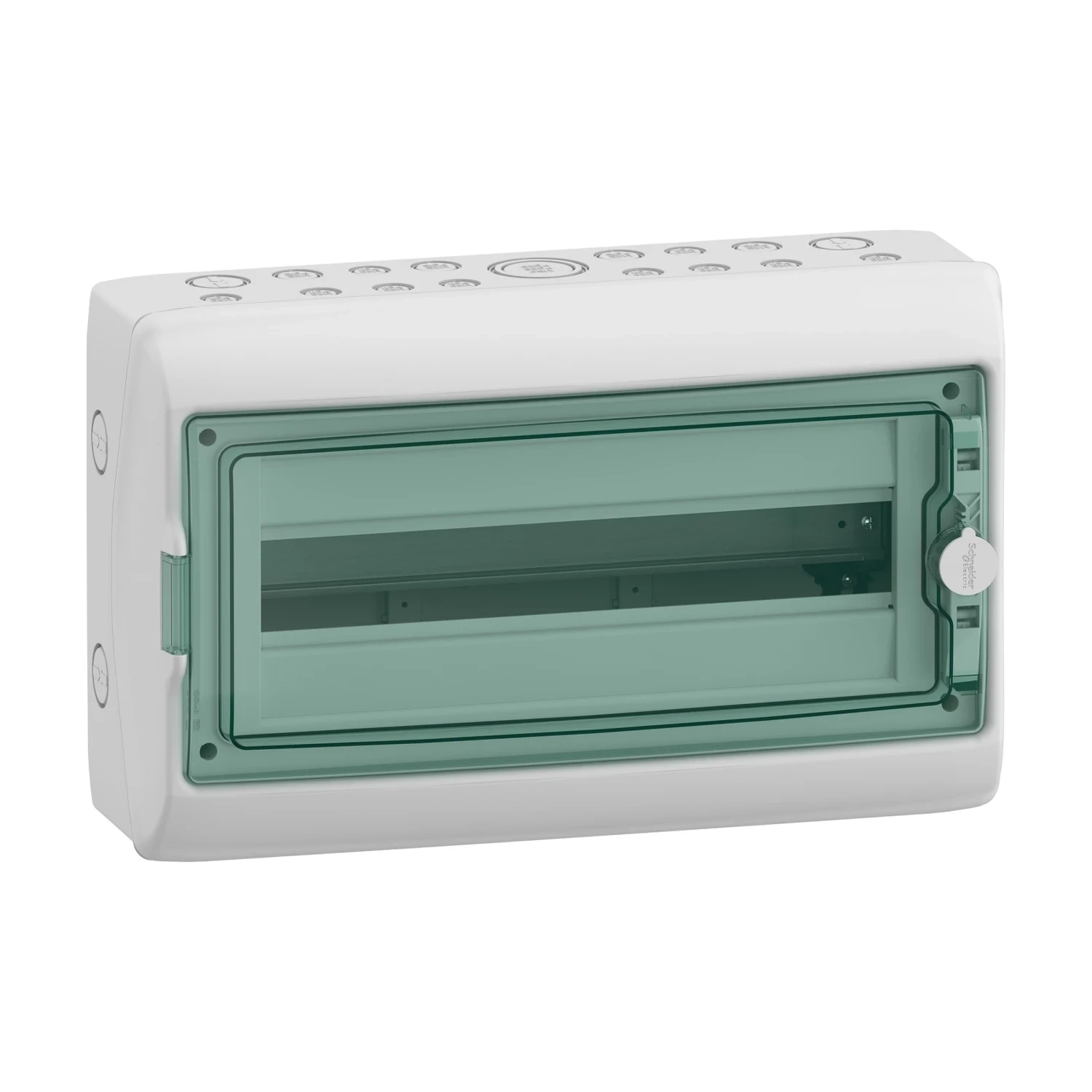

Schneider Kaedra Surface Enclosure 18 Way 1 Row IP65 Transparent Door

Photo is representative

Schneider Kaedra Surface Enclosure 18 Way 1 Row IP65 Transparent Door

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 13432
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £46.13

Gross price

£55.35

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Surface-mount weatherproof enclosure from the Schneider Mureva Kaedra range. Takes 18 x 18 mm modules on a single DIN rail row. Suits modular devices in exposed or outdoor locations — rated IP65 and IK09.

Class II double-insulated polymer enclosure. Ships with two terminal blocks (16 outgoers each, 10 mm² or 16 mm²), a marking kit, wiring strap, and terminal block support. Optional keylock available.

  • 18-way single row, DIN rail
  • IP65 / IK09, 63 A rated
  • Transparent reversible door, RAL 7035 grey body
  • 17 PG ISO pre-cutouts
  • Operating range: -25 to 60 °C
Specifications

Mounting Method

Surface

Rows

1

Ways (18 mm modules)

18

DIN Rail

Yes

Rated Current

63 A

Insulation Class

Class II

IP Rating

IP65 (IEC 60529)

IK Rating

IK09 (EN 50102)

Terminal Blocks

2 x 16 outgoers — 16 x 10 mm² / 16 x 16 mm²

Pre-cutouts

17 x PG ISO

Operating Temperature

-25 to 60 °C

Fire Resistance

650 °C (IEC 60695-2-1)

Width

448 mm

Height

280 mm

Depth

160 mm

Documents

datasheet Schneider Electric 13432 Datasheet
