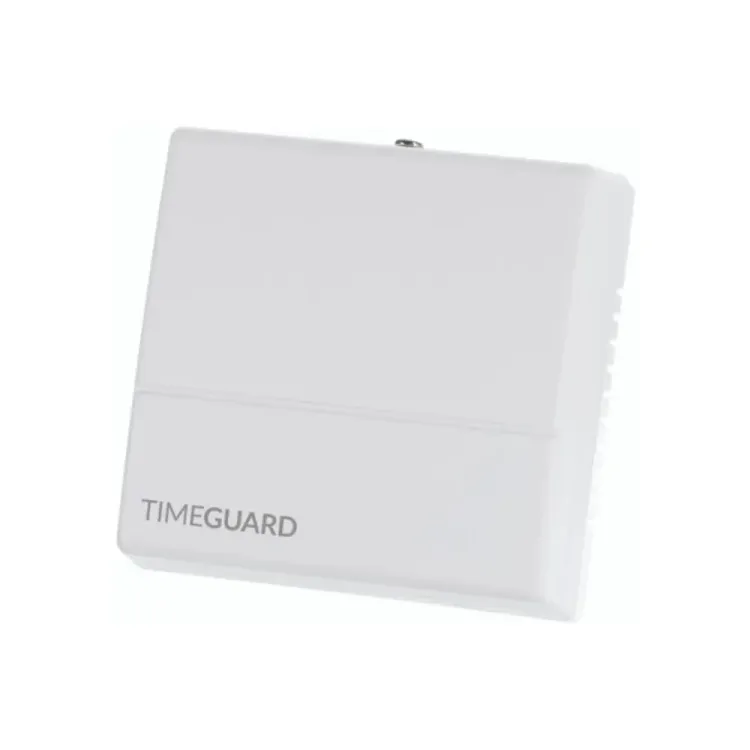

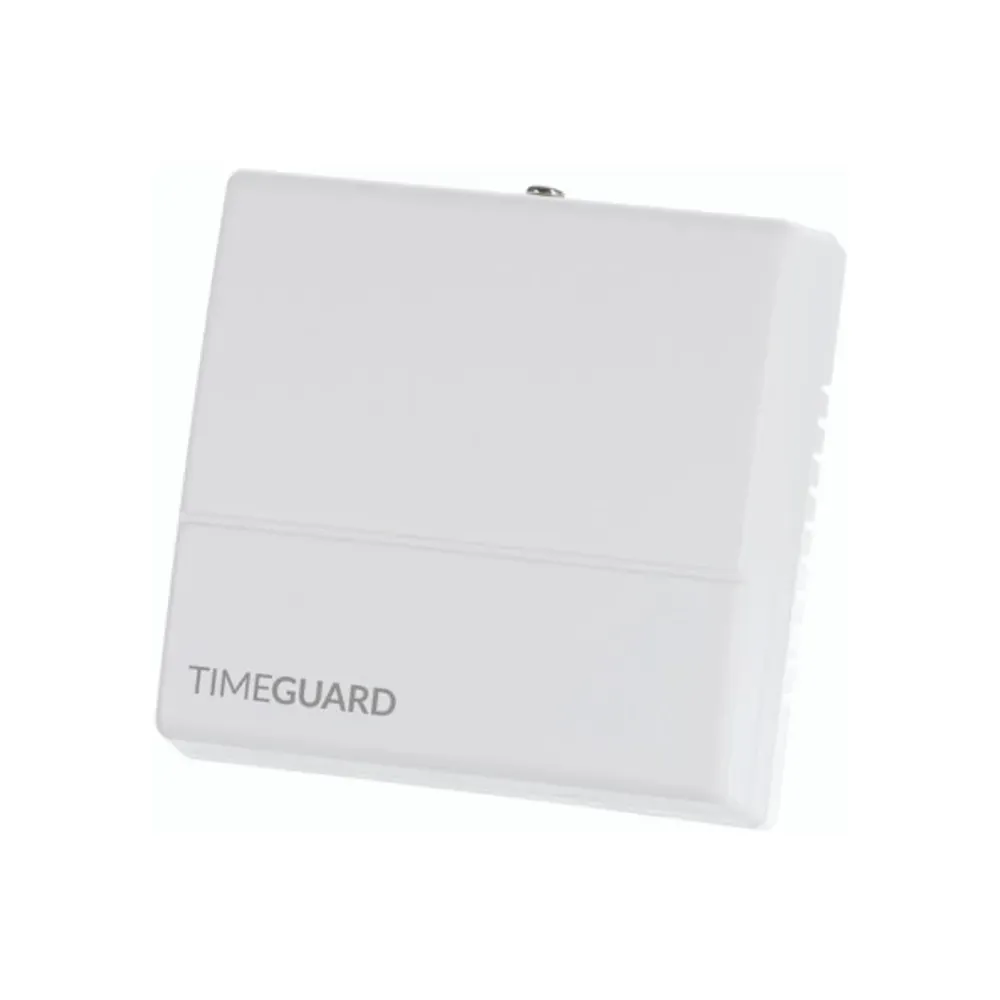

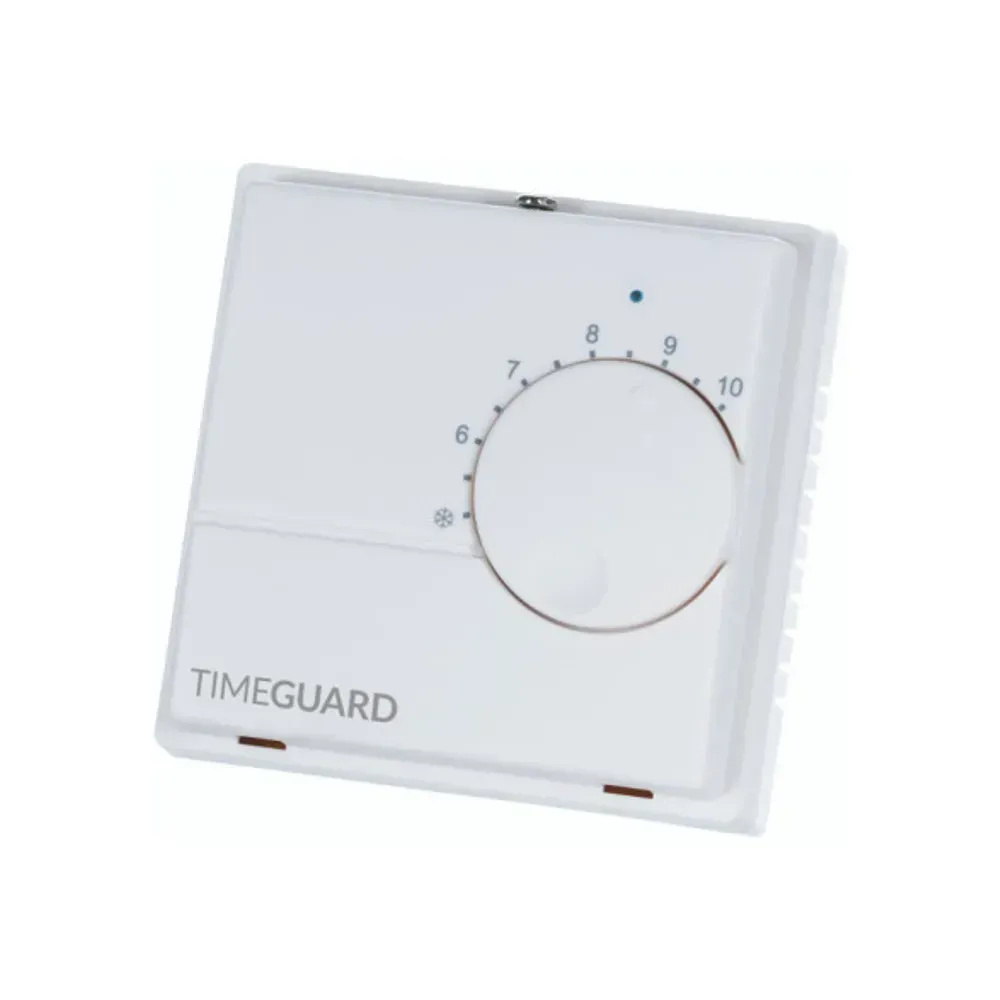

TimeGuard 230V Frost Thermostat with Tamper Proof Cover
The TRT031N electronic frost thermostat provides reliable frost protection for pipes by maintaining temperatures between 5°C and 10°C. It features an easily adjustable dial with a clear temperature scale and a tamper proof cover to safeguard settings. With PID control and selectable temperature swing of 0.5°C or 1°C, it ensures precise temperature regulation.
- Operating Voltage: 230V AC, 50Hz
- Mounting: Surface mount with wall plate included
- Switch Type: Single pole, single throw (SPST)
- Connection: 3-wire system
- Temperature Range: 5°C to 10°C, user adjustable
- Durable Construction: White polycarbonate body with tamperproof cover
- Safety Class: Class II Earth Rating

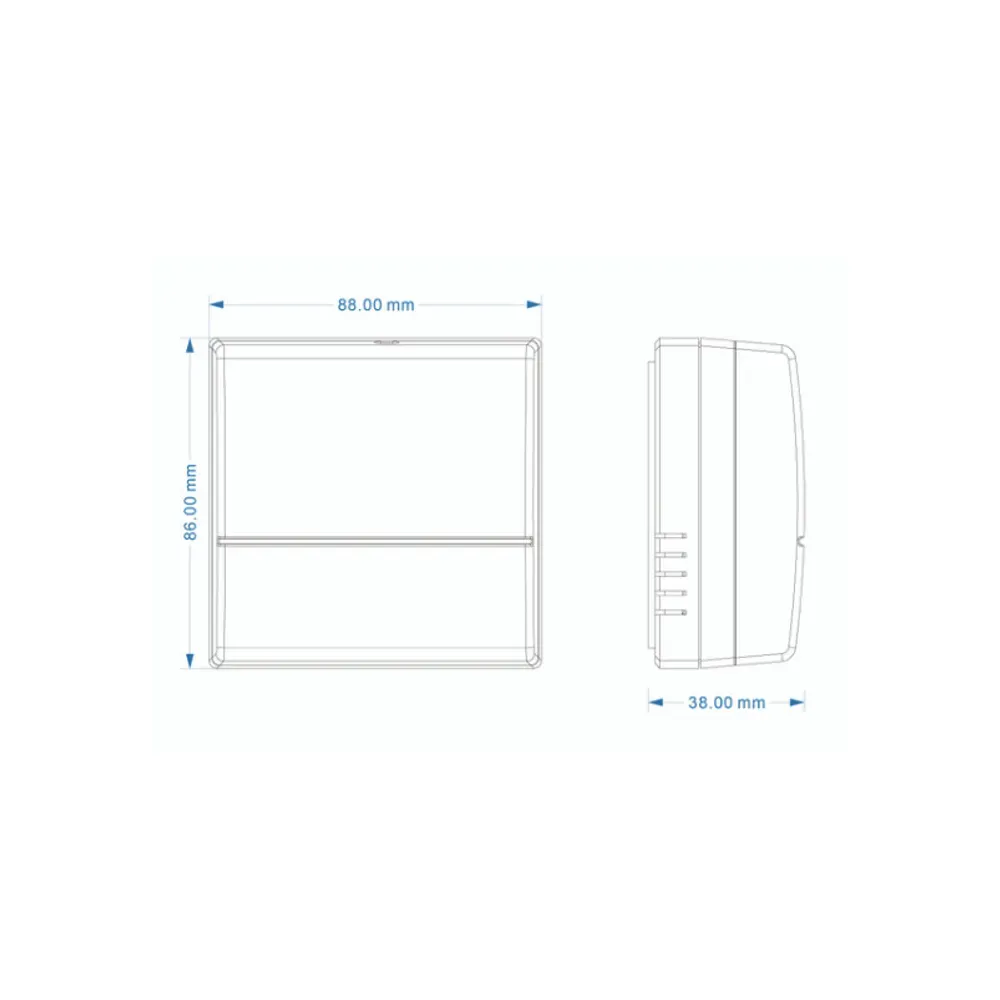

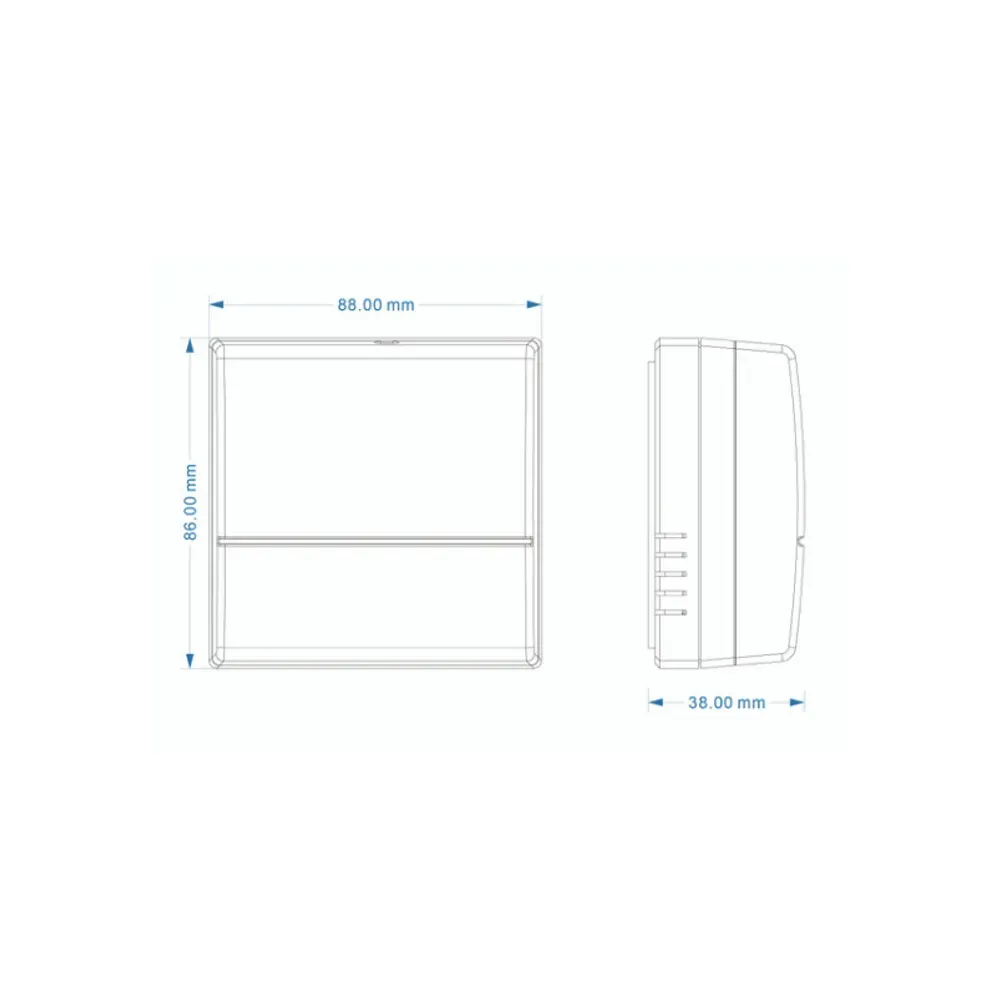

- Dimensions: 86mm (H) x 88mm (W) x 38mm (D)
- Suitable for Gas or Oil Boilers with configurable temperature swing
- Includes: Tamperproof cover
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
SKU
TRT031
-
Switch Type
Single Pole Single Throw (SPST)
-
Current Rating
6 (2) A
-
Dimensions (mm)
Height 95 Width 95 Depth 35
-
Operating Voltage
220-240V AC - 50HZ
-
Temperature Swing
1°C or 0.5°C
-
Micro Disconnection
Type 1.B
-
Set Temperature Range
5°C to 10°C
-
ErP Product Class Labelling
Class I
-
Operating Temperature Range
0°C to 50°C
-
Control Action EC Directives
Conforms to Latest Directives
