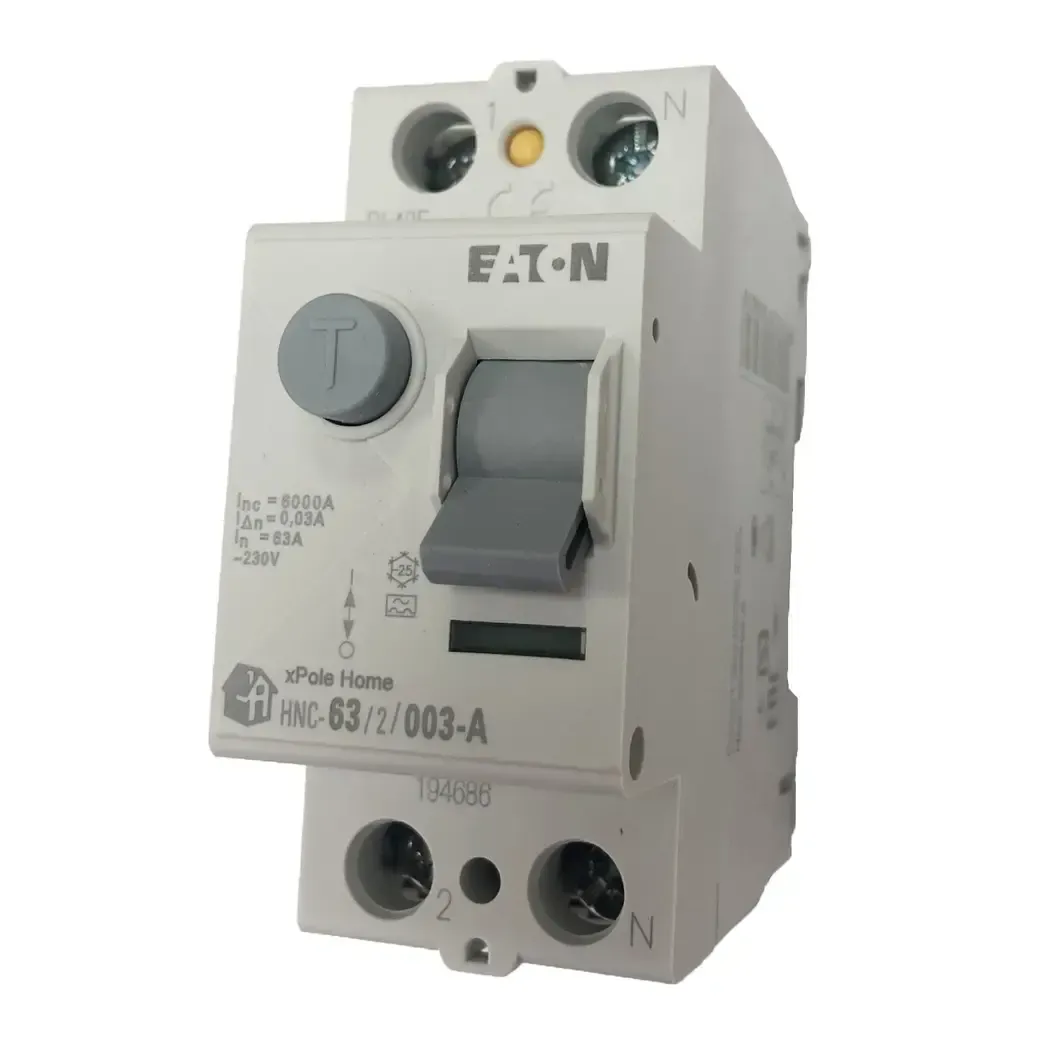

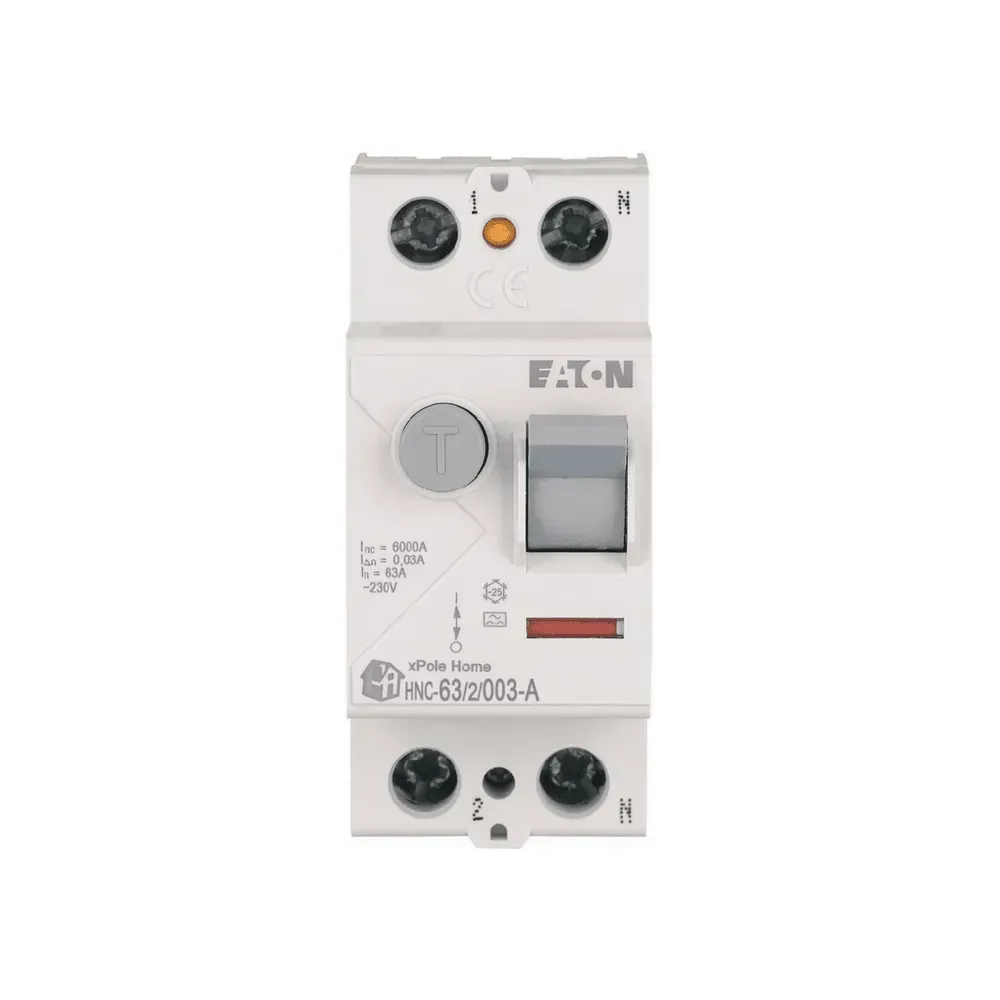

Eaton xPole Home RCD RCCB 2P 63A 30mA Type A
Protect residential and commercial installations with the Eaton xPole HNC RCCB. A 2-pole, 63A, 30mA Type A residual current device with a compact DIN rail design, ensuring high reliability and safety.
Features include:
- 2-Pole RCCB
- 63A rated current
- 6kA short-circuit strength
- 30mA fault current
- Pulse Current Sensitive Type A – Detects both AC and pulsating DC residual currents
- 35mm width and 80mm depth, perfect for DIN rail mounting
- IEC/EN 61008 certified and RoHS compliant.
- Operates between -25°C and +60°C.
- Partly surge-proof (250A) with a rated impulse withstand voltage of 4kV.
- Connectable conductor cross sections from 1.5mm² to 35mm² (solid) and up to 16mm² (multi-wired).
Stock Code
194686
In stock
Price 40.64 £
incl. VAT, 20%
priced individually
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
Type
HNC Residual current circuit breakers Type A
-
Compliances
RoHS conform
-
Product Width
35 mm
-
Certifications
IEC/EN 61008
-
Product Height
76 mm
-
Product Weight
0.207 kg
-
Voltage Rating
230 V AC
-
Amperage Rating
63 A
-
Mounting Method
DIN rail
-
Number of Poles
Two-pole
-
Frequency Rating
50 Hz
-
Pollution Degree
2
-
Special Features
Maximum operating temperature is 60 C
-
Degree of Protection
IP20
-
Product Length/Depth
80 mm
-
Short-Circuit Rating
63 A (max. admissible back-up fuse)
-
Busbar Material Thickness
0.8-2 mm
-
Ambient Operating Temperature Max
60 C
-
Ambient Operating Temperature Min
-25 C
-
Admissible Back-Up Fuse Overload Max
40 A gG/gL
-
Connectable Conductor Cross Section (Solid-Core) Max
35 mm
-
Connectable Conductor Cross Section (Solid-Core) Min
1.5 mm
