195130 - Eaton Rcbo 1p+N 6a 6ka 30ma B Curve Type a Xpolehome 195130

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

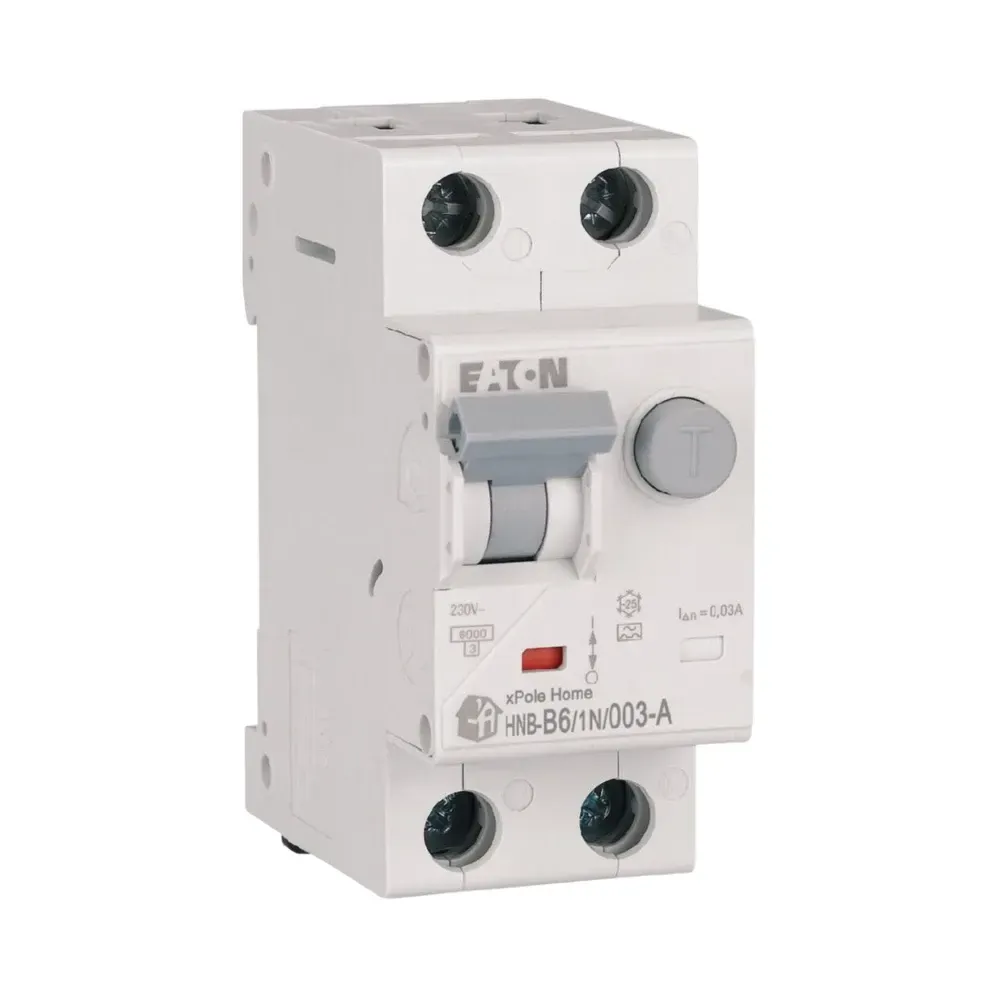

Eaton Rcbo 1p+N 6a 6ka 30ma B Curve Type a Xpolehome 195130

The Eaton Moeller series xPole - HNB RCBO is a residual-current circuit breaker with overcurrent protection of 6A, 6KA 30mA. It features a 1 Pole and Neutral design, suitable for up to 6 Amps and measures 80x73x35mm.

Stock Code 195130
In stock
Price 35.58 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • EAN

    9010238060937

  • Type

    RCBO

  • Model Code

    HNB-B6/1N/003-A

  • Compliances

    CE Marked, RoHS conform

  • Voltage Type

    AC

  • Catalog Number

    195130

  • Certifications

    CE

  • Voltage Rating

    230 V

  • Amperage Rating

    6 A

  • Frequency Rating

    50 Hz

  • Degree of Protection

    IP20

  • Fault Current Rating

    0.03 A

  • Leakage Current Type

    A

  • Overvoltage Category

    III

  • Release Characteristic

    B

  • Surge Current Capacity

    0.25 kA

  • Disconnection Characteristic

    Undelayed

  • Rated Insulation Voltage (UI)

    500 V

  • Operating Ambient Temperature Max

    40 C

  • Operating Ambient Temperature Min

    -25 C

  • Rated Operational Voltage (UE) Max

    230 V

  • Product Number Of Poles (Protected)

    1

  • Width in Number of Modular Spacings

    2

  • Rated Short-Circuit Breaking Capacity

    6 kA

  • Connectable Conductor Cross Section (Solid-Core) Min

    1 mm

Brand

Eaton
