142822 - Eaton Isolator 3P 63A 142822

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

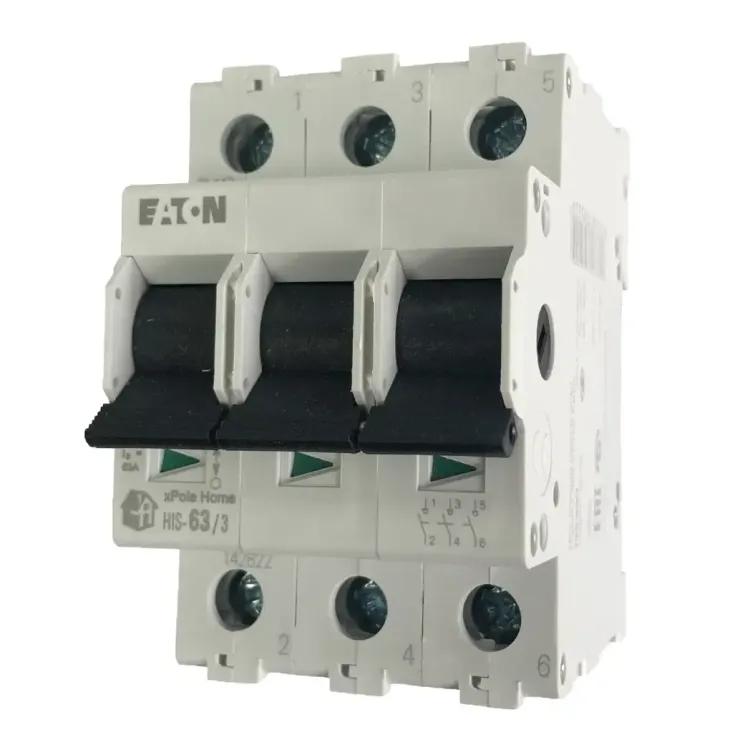

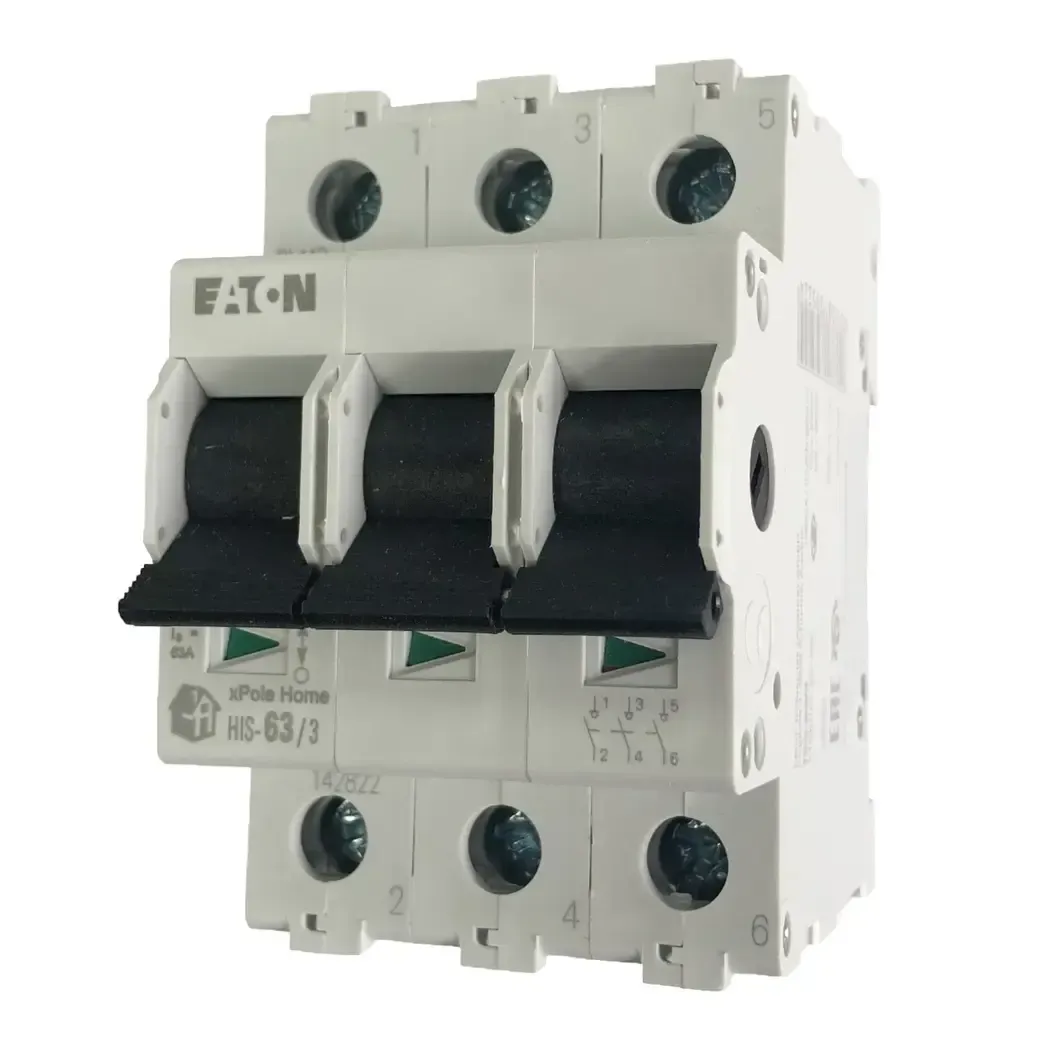

Eaton Isolator 3P 63A 142822

Eaton Isolator 3 Pole 63 Amps is a main switch with dimensions 80x76x52.5mm. It is designed for use in distribution parts.

Stock Code 142822
Out of stock

Product Features

  • SKU

    142822

  • Lamp Type

    Other

  • Compliances

    RoHS conform

  • Lamp Socket

    Other

  • Voltage Type

    AC

  • Product Width

    52.5 mm

  • Built-in Depth

    69.5 mm

  • Product Height

    76 mm

  • Product Length

    80 mm

  • Product Weight

    0.305 kg

  • Amperage Rating

    63 A

  • Number Of Poles

    Three-pole

  • Voltage Rating Min

    240 V

  • Product Switch Type

    Off switch

  • Degree of Protection

    IP20

  • Rated Switching Capacity

    0 kA

  • Rated Operational Voltage (UE) Max

    240 V

  • Rated Short-Time Withstand Current

    2 kA

  • Width in Number of Modular Spacings

    3

  • Number Of Contacts (Change-Over Contacts)

    0

  • Number Of Contacts (Normally Open Contacts)

    0

  • Number Of Contacts (Normally Closed Contacts)

    0

Brand

Eaton
