276278 - Eaton Isolator 1P 80A 276278

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

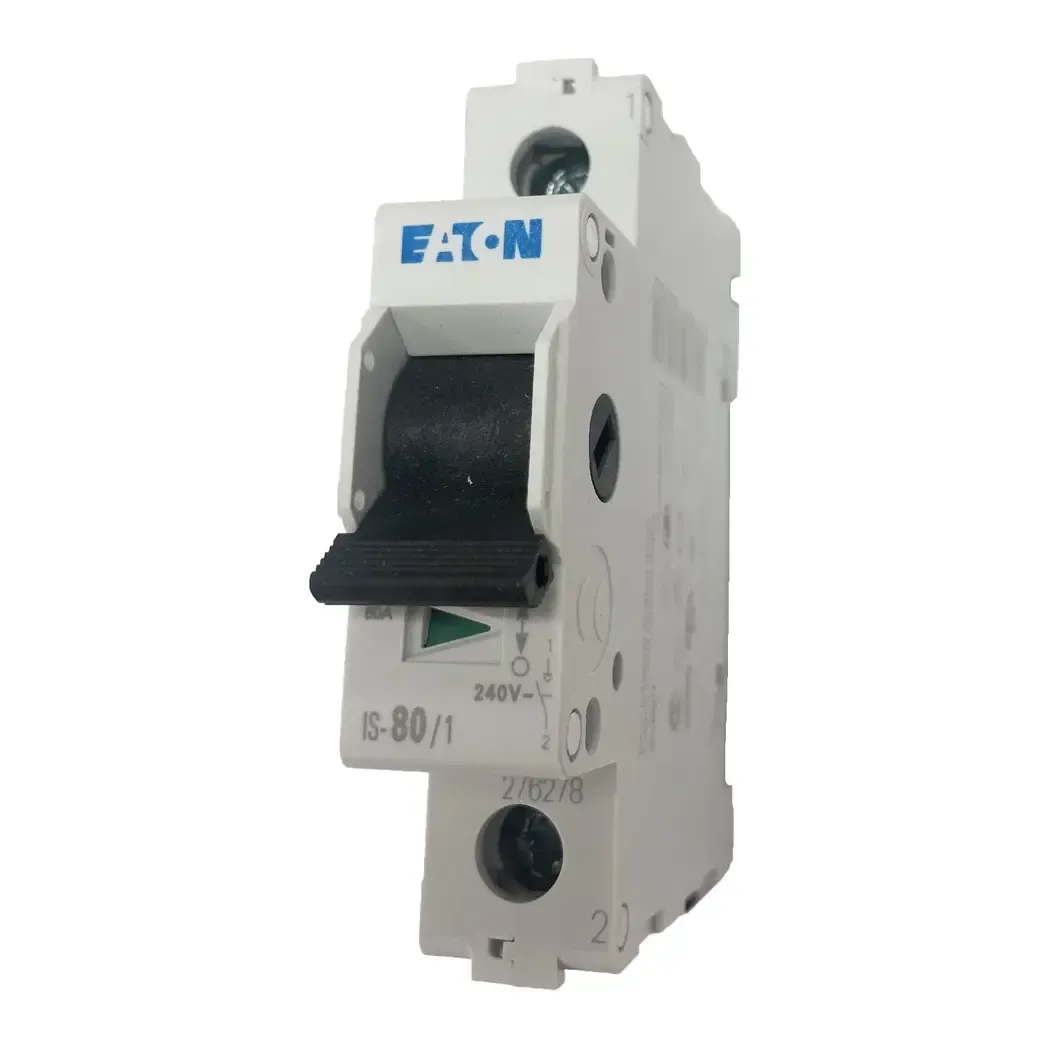

Eaton Isolator 1P 80A 276278

The Eaton Moeller IS Disconnector is a main switch with a capacity of up to 80 Amps. It is a single pole isolator measuring 80x76x17.5mm, designed for industrial and advanced commercial applications.

Stock Code 276278
Few in stock
Price 16.91 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • EAN

    4015082762780

  • SKU

    276278

  • Model Code

    IS-80/1

  • Application

    Switchgear for industrial and advanced commercial applications

  • Compliances

    RoHS conform

  • Switch Type

    Other

  • Built-in Depth

    69.5 mm

  • Certifications

    EN45545-2 IEC 61373

  • Product Weight

    0.101 kg

  • Amperage Rating

    80 A

  • Number of Poles

    Single-pole

  • Voltage Rating Min

    240 V

  • Degree of Protection

    IP40

  • Ambient Operating Temperature Max

    40 C

  • Rated Short-Time Withstand Current

    2 kA

Brand

Eaton
