120677 - Eaton 4 Pole 20A 30mA C-Curve RCBO 120677

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

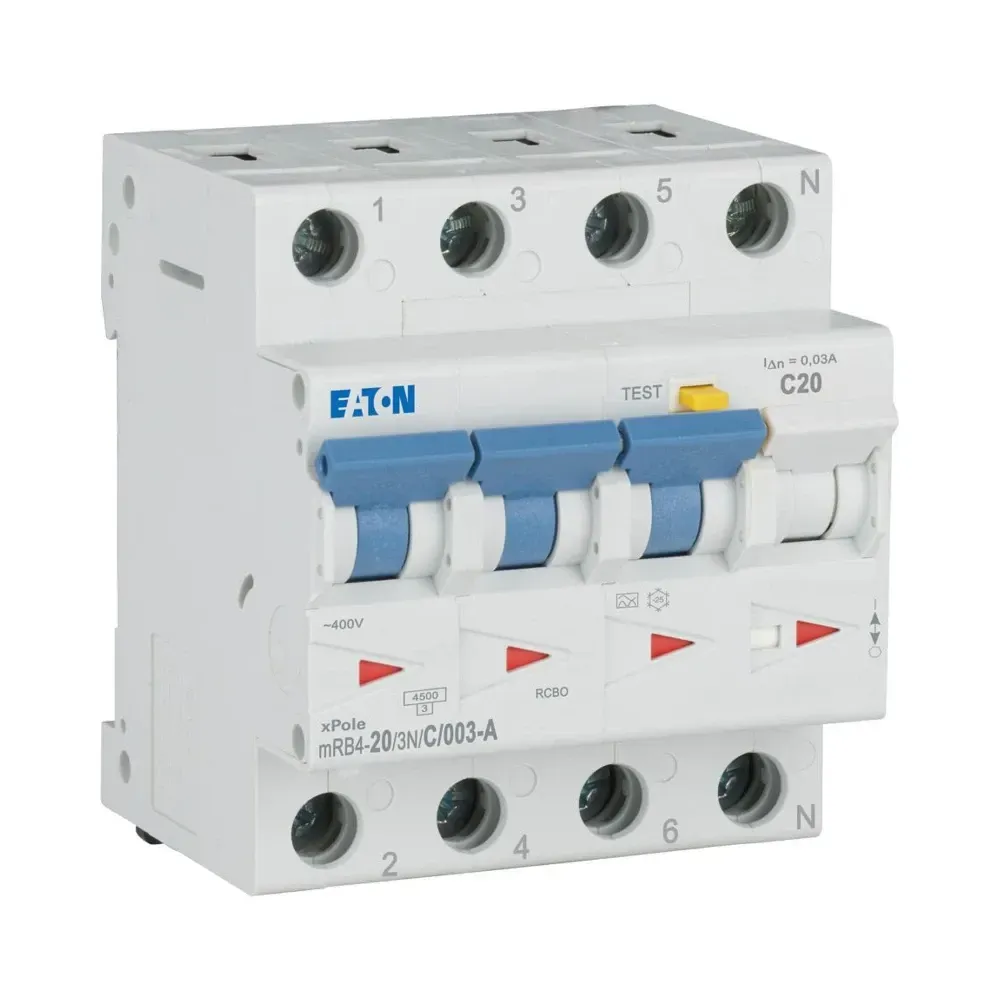

Eaton 4 Pole 20A 30mA C-Curve RCBO 120677

The Eaton 4 Pole 20A 30mA C-Curve RCBO 120677 is designed to protect electrical installations with a up to 20 Amps rating. It includes a test button for easy operation.

Stock Code 120677
Few in stock
Price 184.59 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • SKU

    120677

  • Lifespan

    S

  • Tripping

    Non-delayed

  • Standards

    IEC/EN 61009

  • Sensitivity

    DC and Pulses Current

  • Rated Current

    Ie A 20

  • Characteristic

    C

  • Rated Frequency

    f Hz 50

  • Selectivity Class

    3

  • Rated Fault Currents

    I n mA 30

  • Electrical Operations

    > 4000

  • Mechanical Operations

    > 20000

  • Rated Operating Voltage

    Ue V AC 230/400

  • Rated Switching Capacity

    Icn kA 4.5

  • Rated Non-Tripping Current

    I no 0.5 x I n

  • Rated Impulse Withstand Voltage

    Uimp kV 4 (1.2/50 s)

  • Maximum as Short-Circuit Protective Device

    A gL 100

Brand

Eaton
