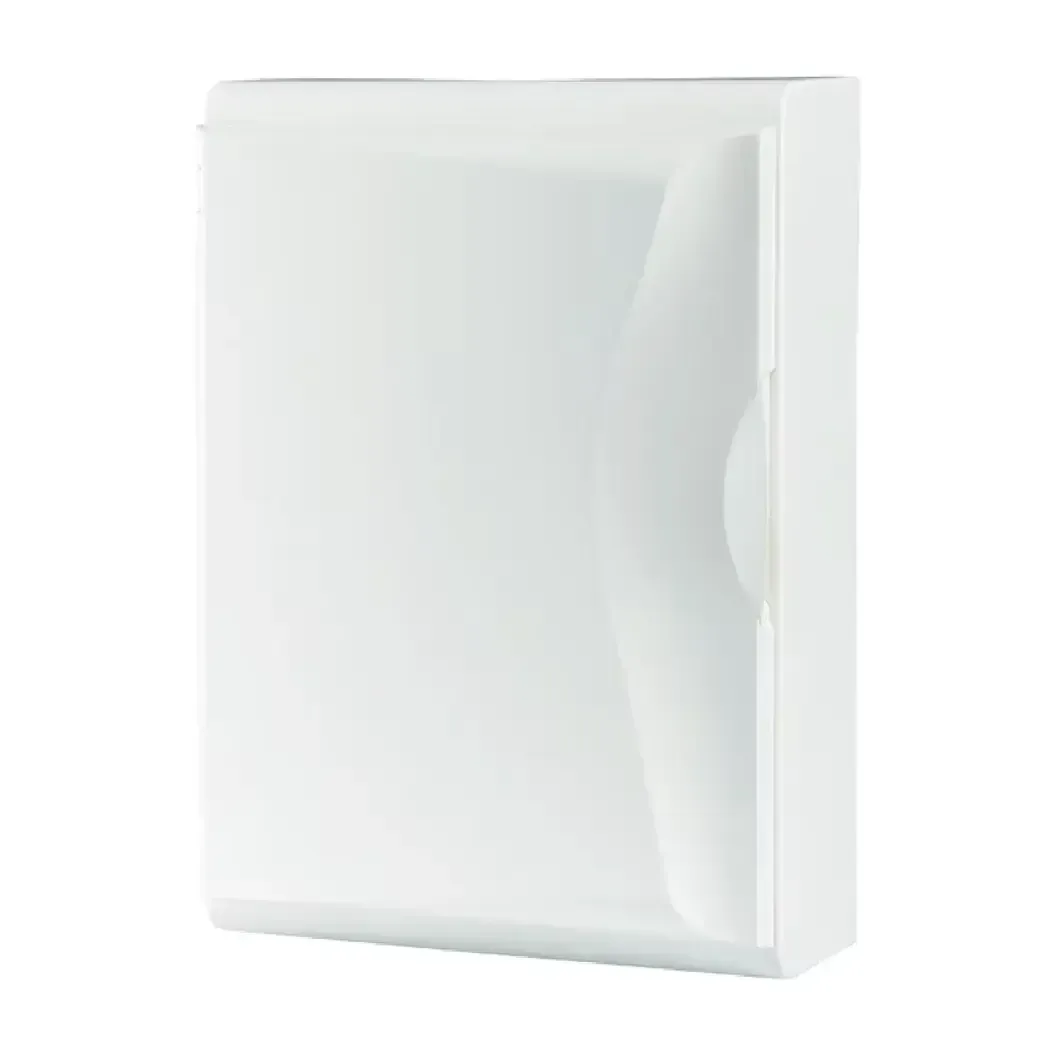

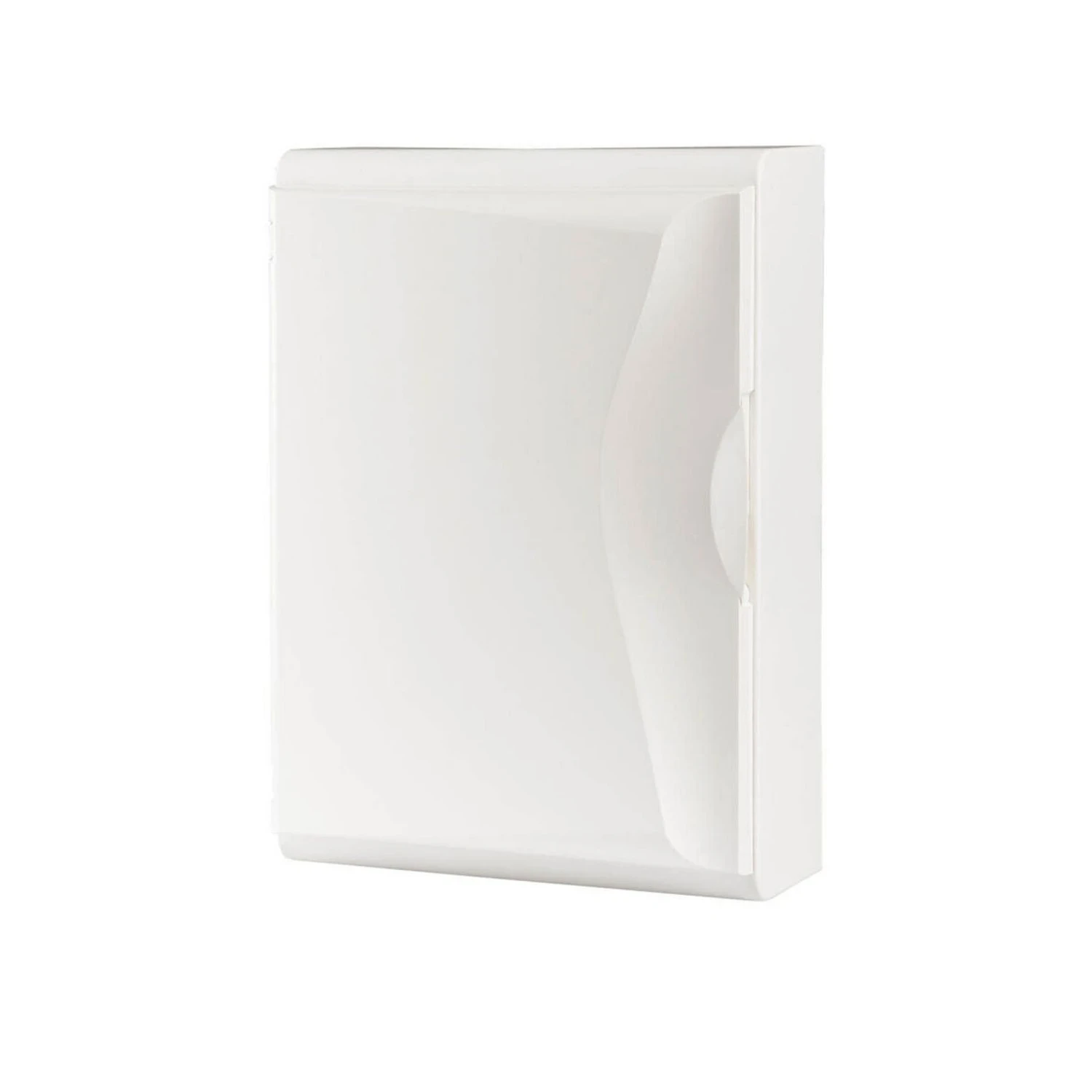

Eaton Distribution Board 2 Row 26 Module Surface Mount IP40

Photo is representative

Eaton Distribution Board 2 Row 26 Module Surface Mount IP40

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 101559
GTIN —
Stock status: 6 in stock

priced individually

More arriving soon

Net price: £61.51

Gross price

£73.81

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Eaton xComfort BC Version A (BC-A-2⁄26-TW) is a plastic surface-mount enclosure for residential and commercial electrical installations. Empty enclosure — no incomer or outgoing devices included.

Class 2 construction means no CPC connection to enclosure required. Door is sealable with single notched cover. Mounts on DIN rail or direct to plaster surface.

  • 2 rows, 26 modules total (13 modules per row)
  • IP40, IK07
  • Ui: 440 V AC, impulse withstand: 4 kV
  • External dims: 350 mm (D) × 260 mm (W) × 145 mm (H)
  • Colour: White RAL 9010
Specifications

Number of Rows

2

Number of Modules

26

Modules per Row

13

IP Rating

IP40

Impact Rating

IK07

Enclosure Material

Plastic

Colour

White RAL 9010

Mounting Method

Surface mounted (plaster), DIN-rail

Protection Class

Class 2

Rated Insulation Voltage (Ui)

440 V AC

Impulse Withstand Voltage

4 kV

External Depth

350 mm

External Width

260 mm

External Height

145 mm

Weight

1.4 kg

Certification

CE

Documents

datasheet Eaton 101559 Datasheet
