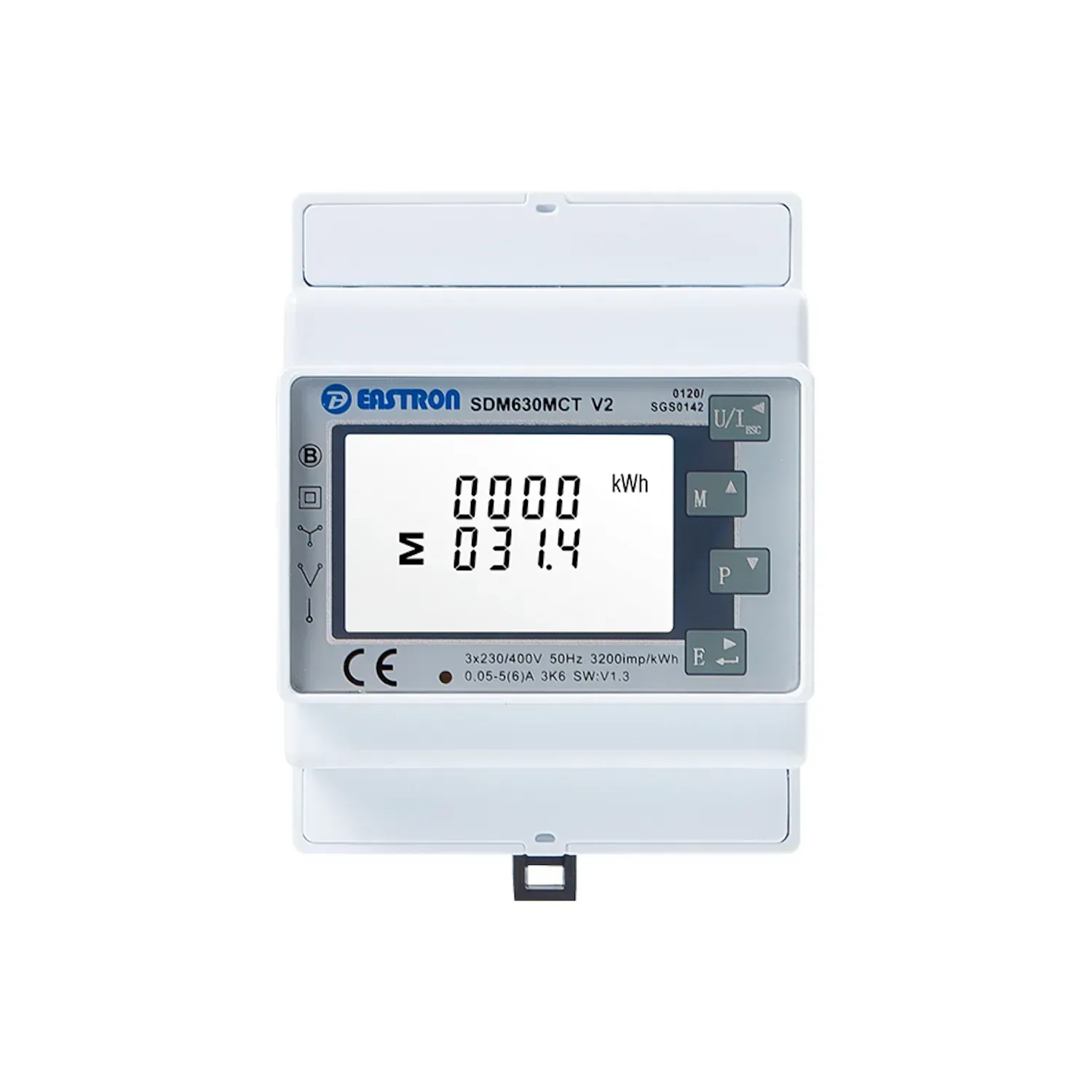

SDM630MCT V2 three phase CT type energy meter DIN rail mount with RS485 ports

Photo is representative

SDM630MCT V2 CT Type MID Three Phase Energy Meter | DIN Rail | Pulse & RS485

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code SDM630MCTMODMID
GTIN —
Stock status: 6 in stock

priced individually

Net price: £191.67

Gross price

£230.00

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

The SDM630MCT V2 is a CT type DIN rail three phase multi-function energy meter, certified MID/ETL, ideal for EV charging metering and advanced energy monitoring. With auxiliary power, it monitors active, reactive, and apparent power, and supports pulse and RS485 Modbus outputs for integration. Bi-directional measurement, wide CT range, and certified accuracy enhance reliability for professional installations in commercial and industrial settings.

Specifications

Mounting

DIN Rail, 4 Module (72mm wide)

Type

CT Type, MID & ETL Certified

Measurement

kWh, kVarh, W, Var, VA, PF, Hz, dmd, V (multi-measurement)

Phase

Three Phase (3P4W/3P3W/1P2W)

Input Current Range

CT Primary 1-9999A, Secondary 1A/5A

Input Voltage

230V L-N / 120V L-N (80%-120% Un)

Energy Accuracy

Class 0.5S IEC 62053-22, Class 1.0 IEC 62053-21

Communications

2 Pulse Outputs, RS485 Modbus, optional M-bus, LoRaWAN

Certifications

MID 2014/32/EU, EN50470-3:2022, ETL listed by Intertek

Bi-directional Measurement

Yes; suitable for import/export metering
