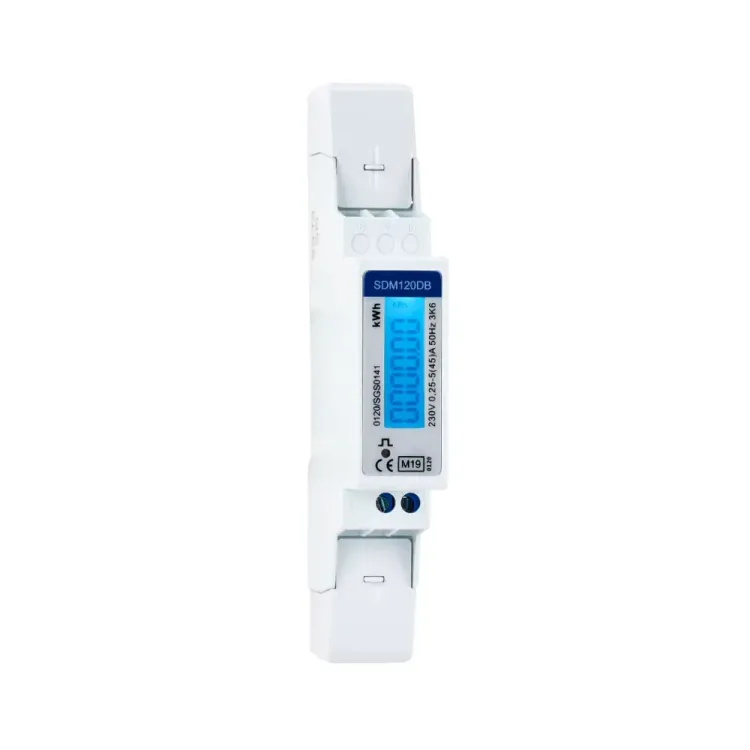

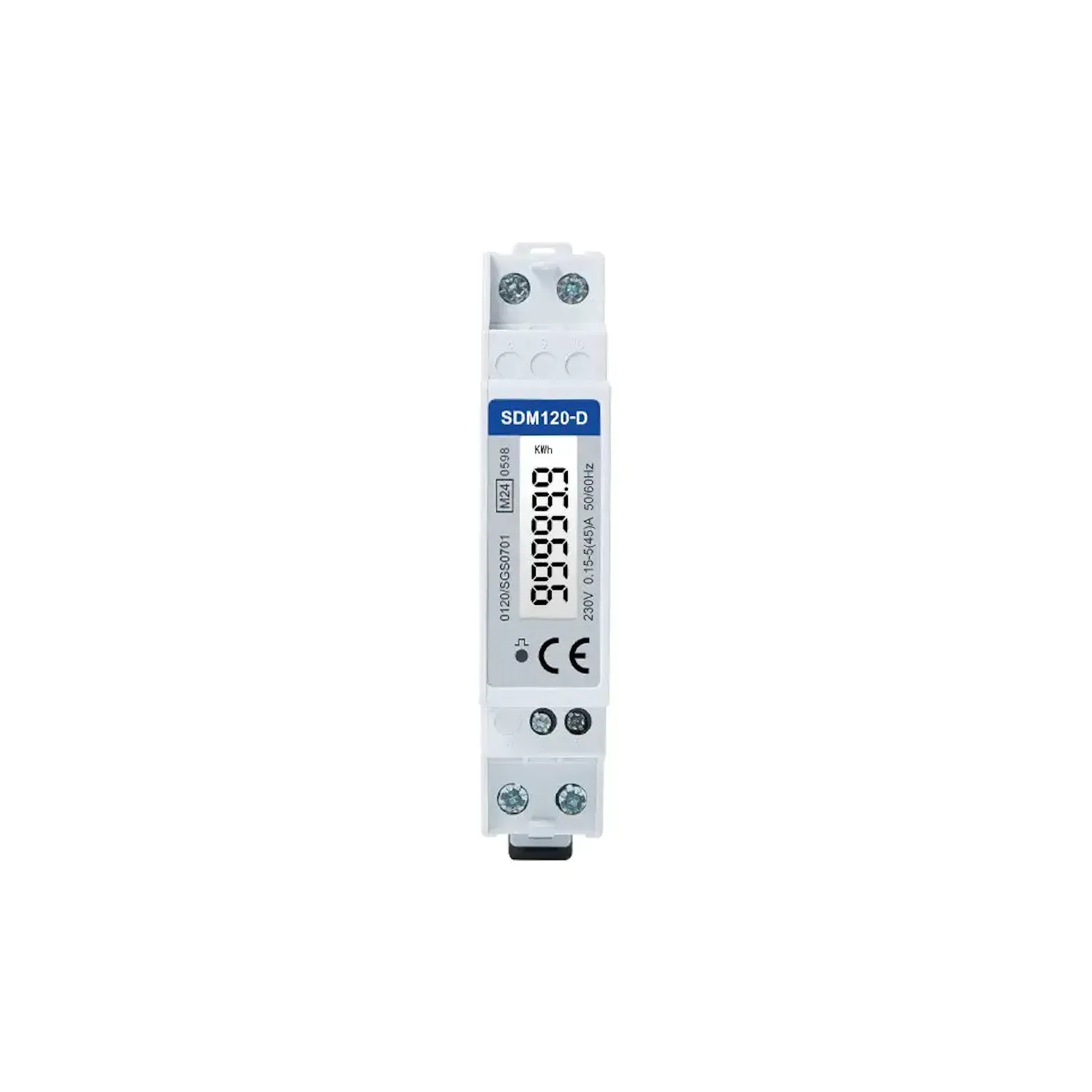

Eastron SDM120-D single phase 45A energy meter with digital LCD display

Photo is representative

Eastron Single Phase 45A Energy Meter, DIN Rail, Digital LCD Display

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code SDM120DB
GTIN
Stock status: In stock

priced individually

Net price: £32.51

Gross price

£39.02

Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 30 day returns

The Eastron SDM120-D is a highly accurate single phase energy meter supporting 45A direct connection and DIN rail mounting. Featuring a 5+1 digital LCD display, it offers precision kWh measurement and robust anti-tamper protection. Its compact 1-module width and MID B&D approval ensure reliable, compliant monitoring for professional installations.

Specifications

Maximum Current

45A Direct Connected AC

Phase Type

Single Phase (1P2W)

Display Type

Digital 5+1 LCD

Mounting

DIN Rail, 1-Module Width

Rated Voltage

230V AC

Energy Measurement

Import Active Energy (kWh)

Approval

MID B&D 0120/SGS0221

Standards

EN50470-1, EN50470-3 Class B

EMC Compliance

EN61326-1, EN61326-2-3

Dimensions

119mm (H) x 17.5mm (W) x 62mm (D)
