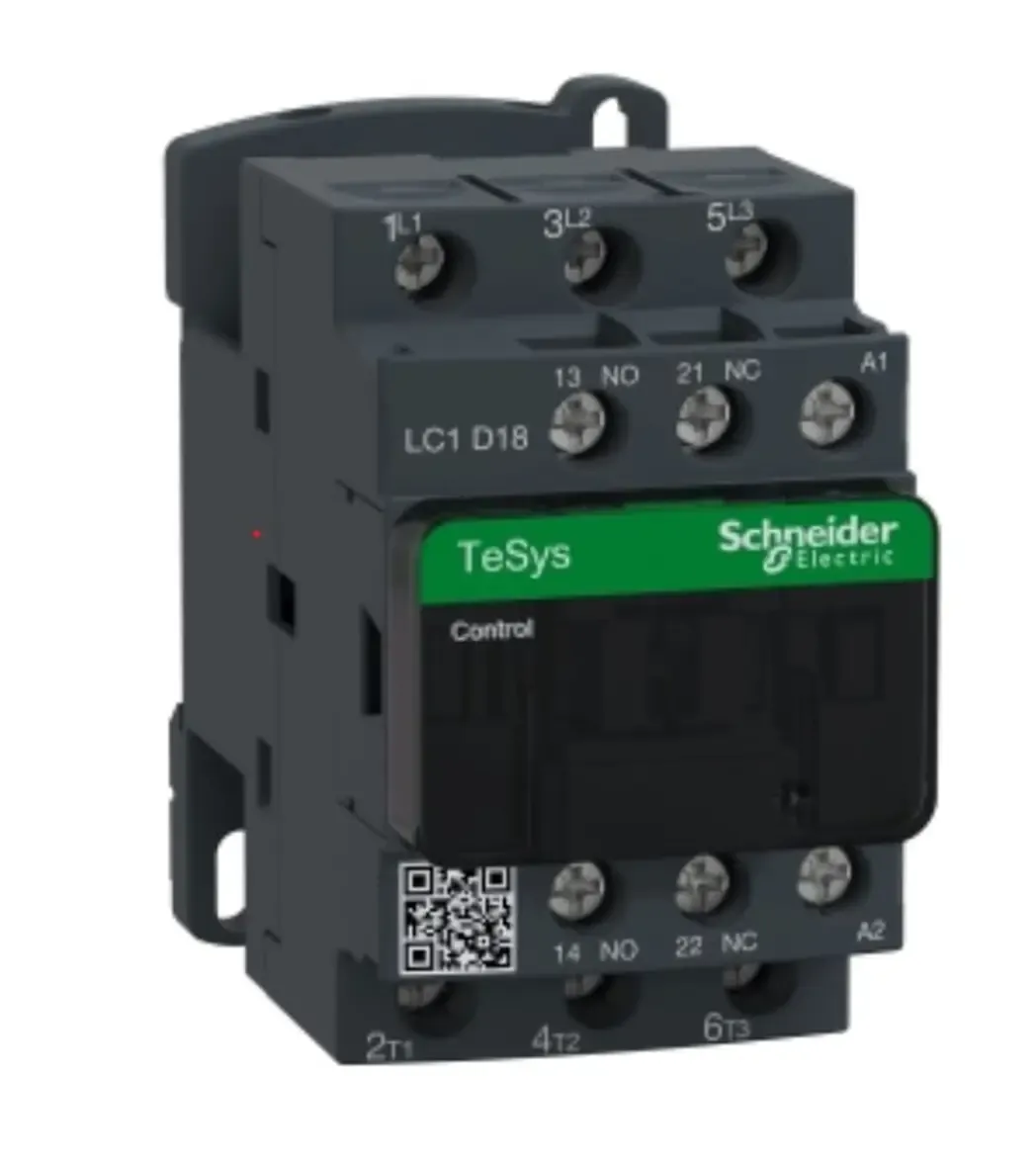

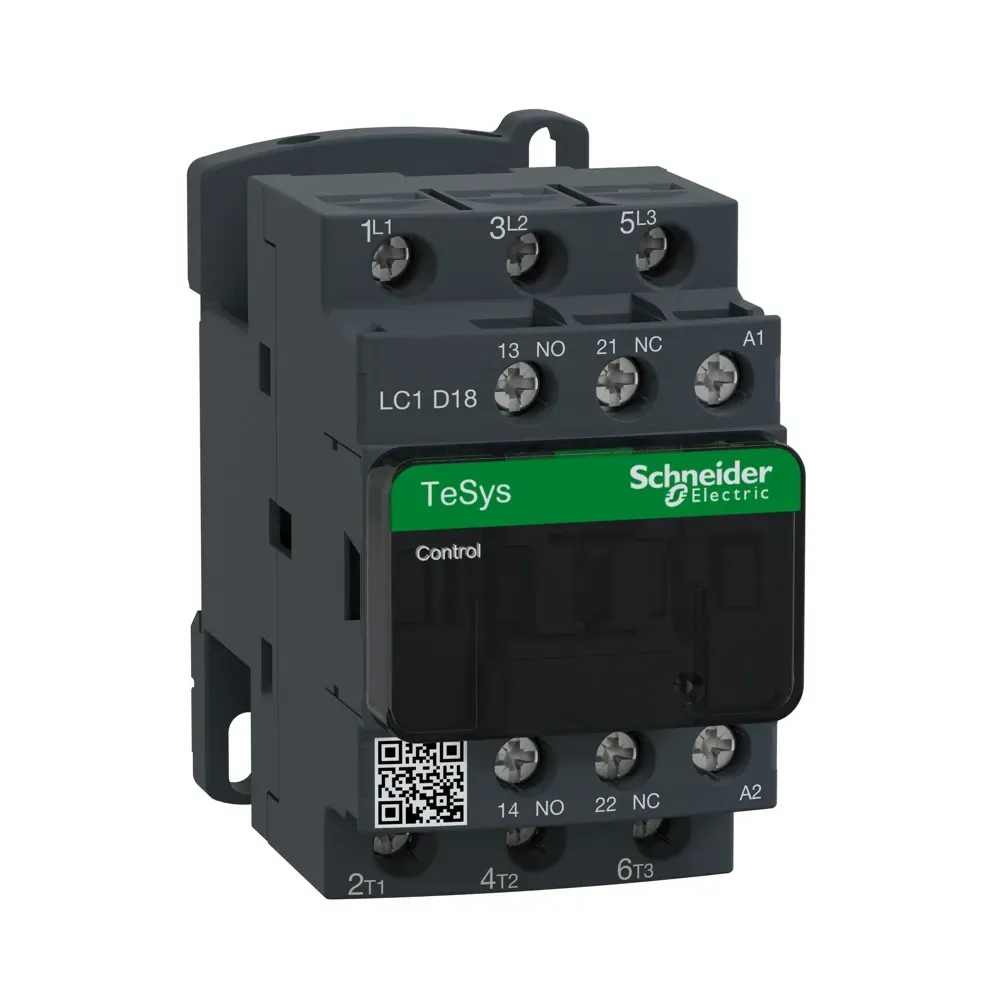

Front view of Schneider TeSys D 18A 3P contactor LC1D18V7

Photo is representative

Schneider TeSys D 18A 400V AC 3P Contactor - LC1D18V7

Schneider TeSys D 18A 400V Coil AC 3P contactor (LC1D18V7), suitable for DOL motor starting, reversing, and control of resistive loads. AC-3 rated 18A at up to 440V AC for motor loads up to 7.5kW at 400V. Equipped with a 400V AC 50/60Hz coil, screw clamp terminals, and a 3-pole (3NO) power contact configuration. DIN rail or panel mounting. Fully compliant to IEC 60947-4-1 with robust 15 million mechanical operations and integrated auxiliary contacts (1NO+1NC) for control signaling. Ideal for industrial motor control, automation systems, and panel building.

Product Information

Stock Code LC1D18V7
MPN LC1D18V7
GTIN 3389110349603
Stock status: In stock
Price: £64.65
incl. VAT, 20% priced individually

Original price: £71.84

10% off - Save £7.18

Product Features
Current Rating 18A AC-3, 32A AC-1
Control Coil 400V AC 50/60Hz
Contact Configuration 3P (3NO) + 1NO+1NC auxiliaries
Frame Size D-frame
Terminal Type Screw clamp terminals
Mounting Method 35mm DIN rail or panel mount
Auxiliary Capability Accepts up to 4 auxiliary blocks
Mechanical Life 15 million operations
Standards Compliance IEC 60947-4-1, IEC 60947-5-1, EN 60947, UL, CSA, UKCA

Brand

Schneider Electric
