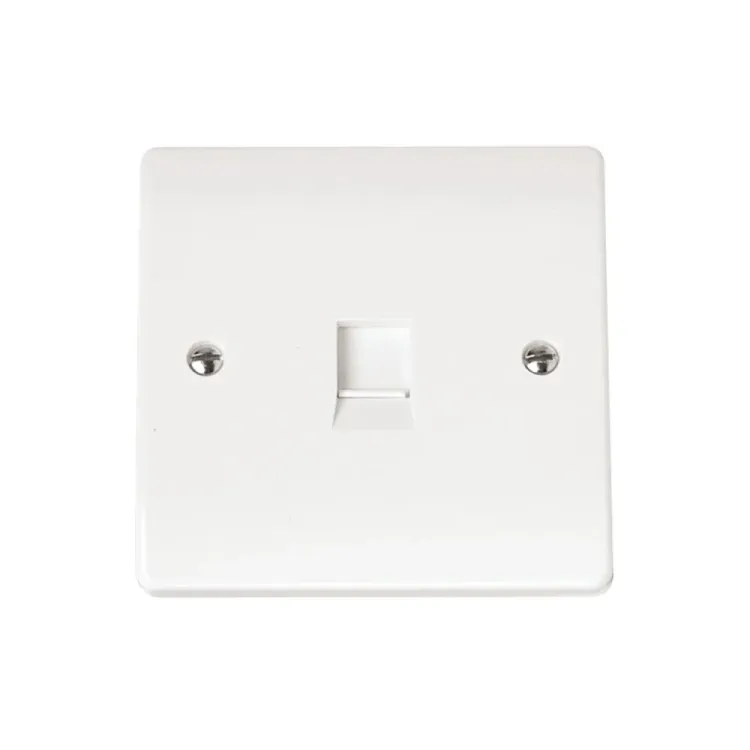

Photo is representative

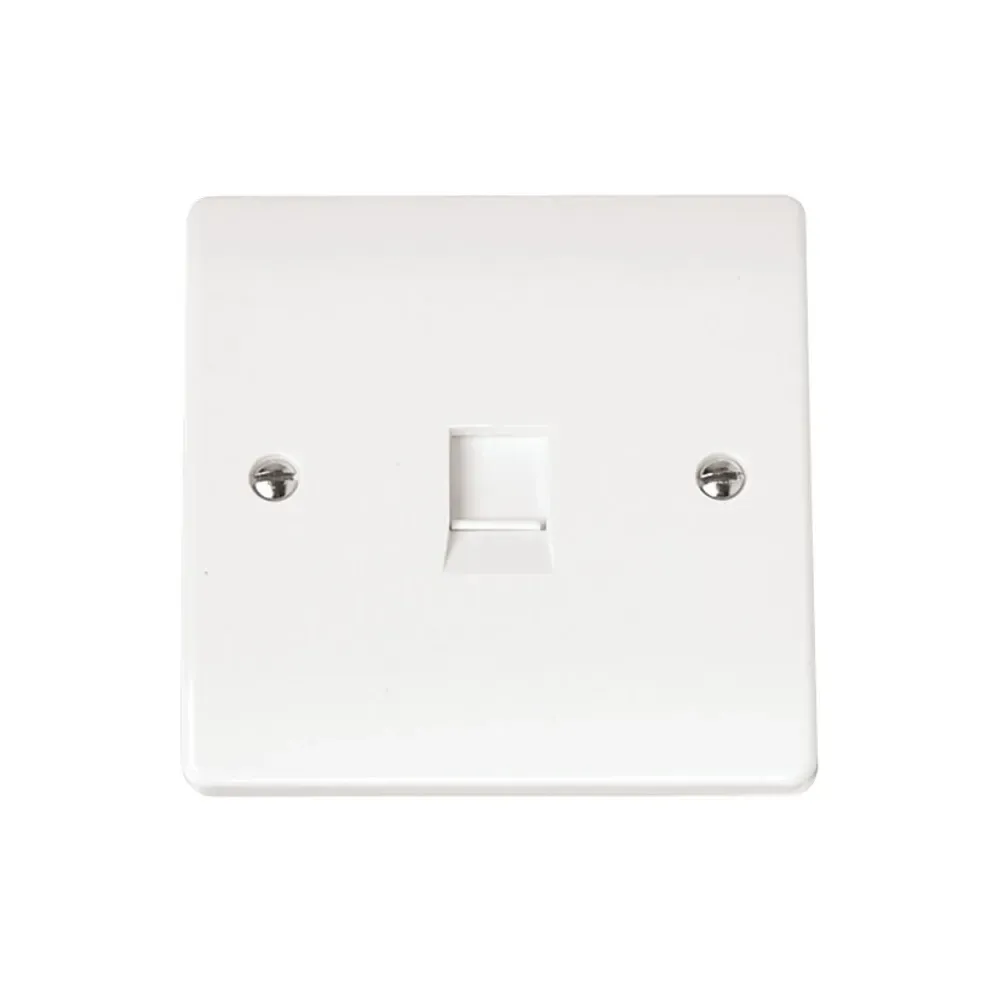

Click Mode Single Phone Point CMA115 RJ11 Socket - Polar White
Single gang RJ11 telephone socket outlet designed for professional telecommunications installations in domestic and commercial environments. Features antimicrobial silver ion technology with 99.9% kill rate against harmful bacteria within 24 hours, ensuring hygienic operation in high-touch applications. Compatible with 35mm backbox depth for standard flush mounting, with captive terminals accepting 0.5mm² solid core telephone cable. Meets BS EN 60669 switching standards and integrates seamlessly with structured cabling systems. Includes 25-year manufacturer warranty demonstrating long-term reliability for permanent installations. Suitable for connection to PSTN networks and private branch exchange systems requiring single-line telephone connectivity.
Online:
Product Features
| Connection Type | RJ11 6P4C telephone socket |
|---|---|
| Gang Configuration | Single gang 86x86mm faceplate |
| Mounting Requirements | 35mm minimum backbox depth |
| Terminal Configuration | IDC terminals for solid core cable |
| Cable Compatibility | 0.5mm² solid core telephone wire |
| Antimicrobial Protection | Silver ion coating - 99.9% bacterial kill rate |
| Standards Compliance | BS EN 60669 switching equipment |
| Installation Method | Flush mount with captive fixing screws |
| Finish Specification | Polar white impact-resistant polymer |
| Operating Temperature | -5°C to +40°C ambient range |
| Network Compatibility | PSTN and PBX system integration |
| Warranty Period | 25-year manufacturer guarantee |
Professional Installation Applications
Office Installations
Single phone points for desk-based workstations requiring direct line access. Ideal for reception areas, private offices, and customer service positions.
Residential Extensions
Additional telephone outlets in bedrooms, kitchens, and home offices. Supports independent handsets without requiring wireless DECT systems.
Commercial Properties
Point-of-sale terminals, security systems, and emergency communication devices requiring dedicated telephone line connectivity in retail environments.
Structured Cabling Integration
Network Topology
Integrates with Category 3 telephone cabling infrastructure. Supports star wiring configurations from central distribution frames to individual outlets.
Cable Management
35mm backbox accommodates cable entry from multiple angles. Sufficient space for service loops and connection maintenance without cable stress.
System Expandability
Compatible with telephone line sharing devices and PBX extension modules. Allows future integration with VoIP systems and digital telephone networks.
Technical Installation Specifications
Terminal Configuration
IDC (Insulation Displacement Connector) terminals eliminate wire stripping. Color-coded for standard telephone wiring pairs and polarity identification.
Mounting Compatibility
Standard 86x86mm faceplate dimensions match existing switch and socket infrastructure. Single-screw fixing system for rapid installation and maintenance.
Environmental Ratings
Operating temperature range -5°C to +40°C suitable for internal installations. Polar white finish maintains appearance under standard lighting conditions.
Frequently Asked Questions
-
What backbox depth required for CMA115 installation?
Requires minimum 35mm backbox depth for flush mounting. Standard 35mm metal backboxes provide adequate cable management space for telephone wiring connections.
-
Compatible with modern broadband telephone systems?
Yes, RJ11 6P4C configuration works with PSTN lines, VoIP adapters, and PBX systems. Compatible with both traditional and digital telephone installations.
-
What cable gauge needed for telephone connections?
Designed for 0.5mm² solid core telephone cable. IDC terminals provide secure connection without stripping, suitable for CW1308 specification wiring.
-
How effective is the antimicrobial coating?
Silver ion technology achieves 99.9% bacterial kill rate within 24 hours of contact. Continuously active coating maintains hygiene in high-touch environments.
-
Can socket support multiple telephone extensions?
Single RJ11 outlet supports one telephone device. For multiple extensions, requires additional sockets or telephone distribution system with splitter connections.
-
Does installation require Part P notification?
Telephone socket installation typically non-notifiable under Part P. However, verify local authority requirements for structured cabling additions to existing installations.
