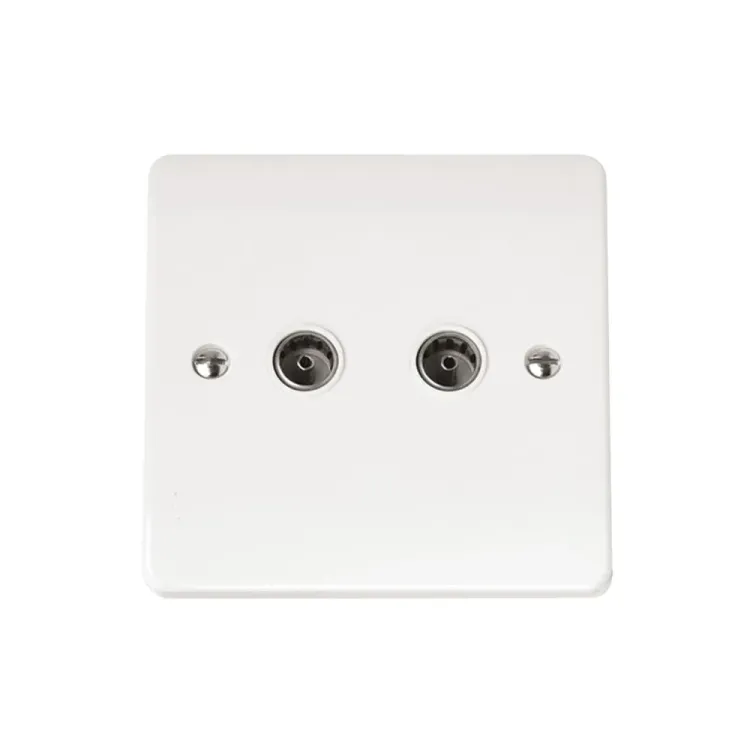

Photo is representative

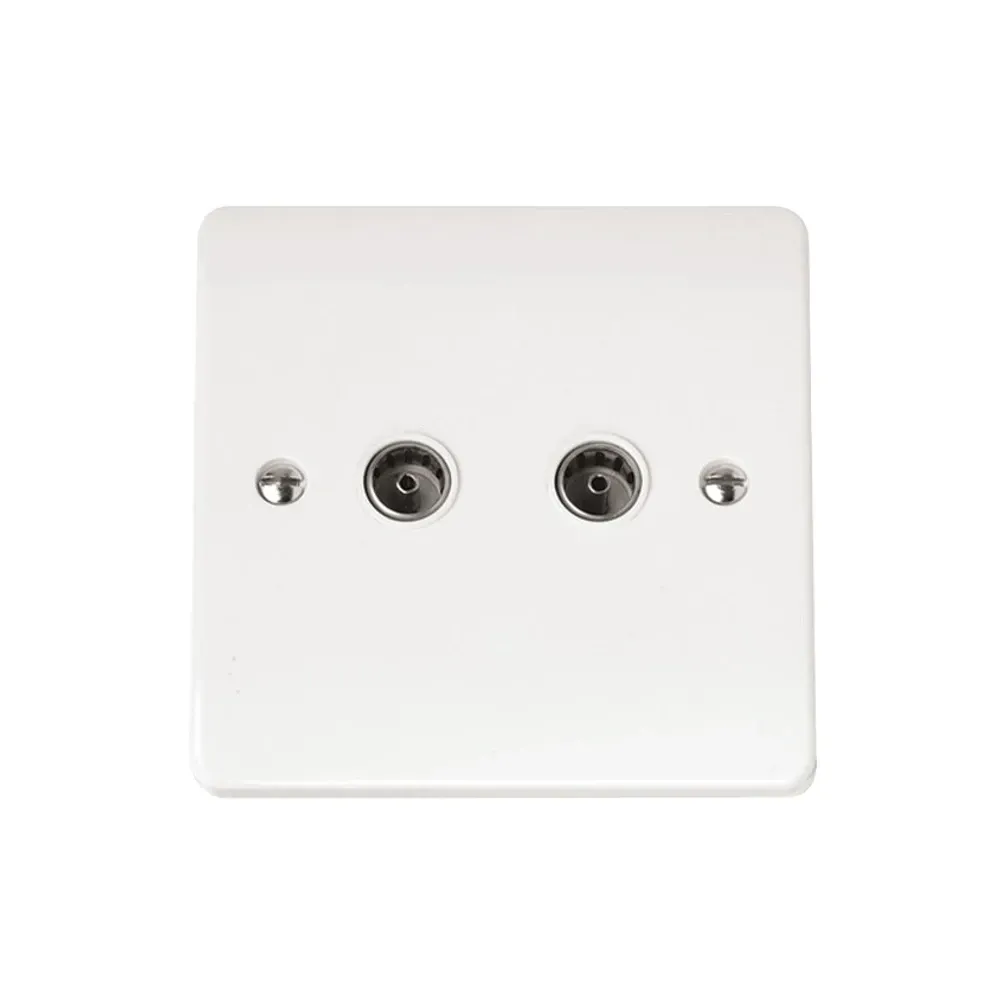

Click Mode Twin Coaxial Socket Non-Isolated CMA066 - White
Twin coaxial socket outlet non-isolated for TV and satellite signal distribution. 16mm minimal backbox depth compatible, antimicrobial certified with 99.99% kill rate. Professional installation for multi-room television systems. IP20 rated for domestic use. 25-year Click Mode warranty. Twin outlets enable separate TV/satellite feeds or signal splitting applications. White polar finish matches Mode range accessories.
Online:
Product Features
| Configuration | Twin coaxial outlets non-isolated |
|---|---|
| Signal Type | Two-way signal transmission TV/satellite |
| Backbox Compatibility | 16-47mm depth (minimum 16mm) |
| Dimensions | 86 x 86 x 9.5mm (H x W x D) |
| IP Rating | IP20 indoor use |
| Operating Temperature | -5°C to +40°C |
| Material Construction | Urea formaldehyde and nylon |
| Antimicrobial Rating | 99.99% kill rate certified |
| Compliance | BS EN 50083-2 coaxial distribution |
| Warranty Period | 25-year Click Mode guarantee |
| Finish | Polar white moulded plastic |
| Installation | Standard 86x86mm plate fixing |
Professional TV Distribution Applications
Multi-Room Systems
Twin outlets enable separate TV/satellite feeds to different rooms. Non-isolated design supports signal splitting for comprehensive distribution networks throughout properties.
Commercial Installations
Antimicrobial certification essential for hotels, care homes, and offices. 25-year warranty reduces maintenance costs for large-scale installations.
Signal Combining
Twin configuration allows terrestrial aerial and satellite dish connections at single wall point. Simplifies cabling for dual-source viewing systems.
Installation Specifications
Minimal Depth
16mm minimum backbox depth - shallowest in Click Mode range. Critical for solid walls with limited cavity depth or surface-mounted installations.
Standard Mounting
86x86mm faceplate fits standard UK electrical boxes. Single screw fixing secures plate - faster installation than competitor twin-screw systems.
Cable Management
Twin cable entries accommodate 6.5mm coaxial cables. Clear outlet labelling prevents installation errors in complex distribution systems.
Signal Distribution Benefits
Two-Way Capability
Non-isolated design supports interactive services and return path signals. Essential for Sky+ boxes and modern digital TV recording systems.
System Flexibility
Independent twin outlets allow different signal sources or loop-through configurations. Supports complex aerial distribution systems without signal degradation.
Future Compatibility
Frequency range supports current and emerging broadcast standards. Investment protection for evolving TV and satellite transmission technologies.
Frequently Asked Questions
-
What backbox depth needed for CMA066 twin coaxial socket?
Minimum 16mm backbox depth required. Compatible with 16-47mm depth backboxes. Standard 25mm backbox provides optimal installation clearance for twin coaxial connections.
-
Can CMA066 handle both TV and satellite signals simultaneously?
Yes, twin outlets support separate TV aerial and satellite feeds. Non-isolated design allows independent signal paths for multi-room distribution or combined terrestrial/satellite systems.
-
What's the difference between isolated and non-isolated coaxial sockets?
Non-isolated sockets like CMA066 allow two-way signal flow, suitable for signal splitting and distribution systems. Isolated versions block return signals, used for single-feed applications.
-
Does CMA066 require special coaxial cable connections?
Standard 75-ohm coaxial cable with F-connectors or push-fit coaxial plugs. Twin outlets accept separate cable feeds for independent TV/satellite signal distribution applications.
-
Why choose antimicrobial certified socket outlets?
99.99% kill rate against bacteria and viruses. Particularly important in healthcare, education, and high-traffic domestic areas where hygiene standards are critical.
-
Is CMA066 compatible with digital TV and 4K signals?
Yes, suitable for digital terrestrial, satellite, and cable TV signals including HD and 4K transmission. Operating frequency range supports modern broadcast standards.
