Photo is representative

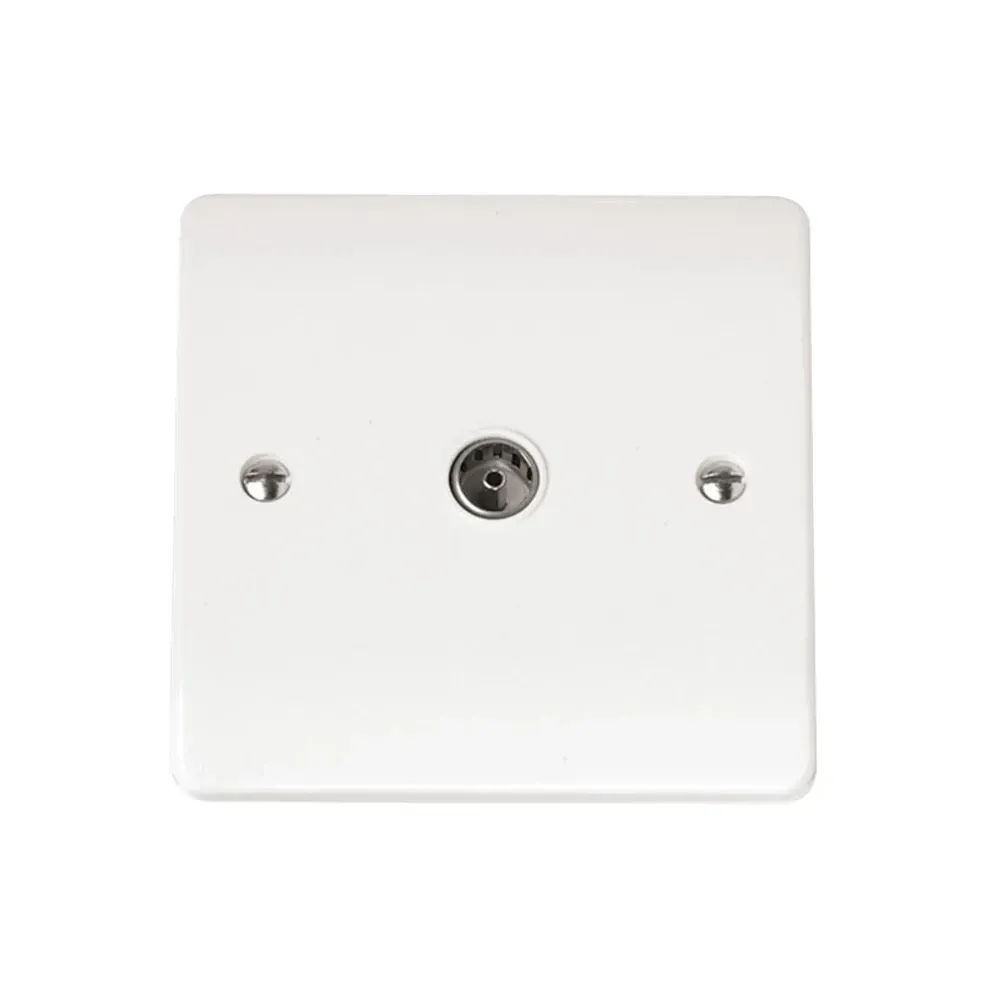

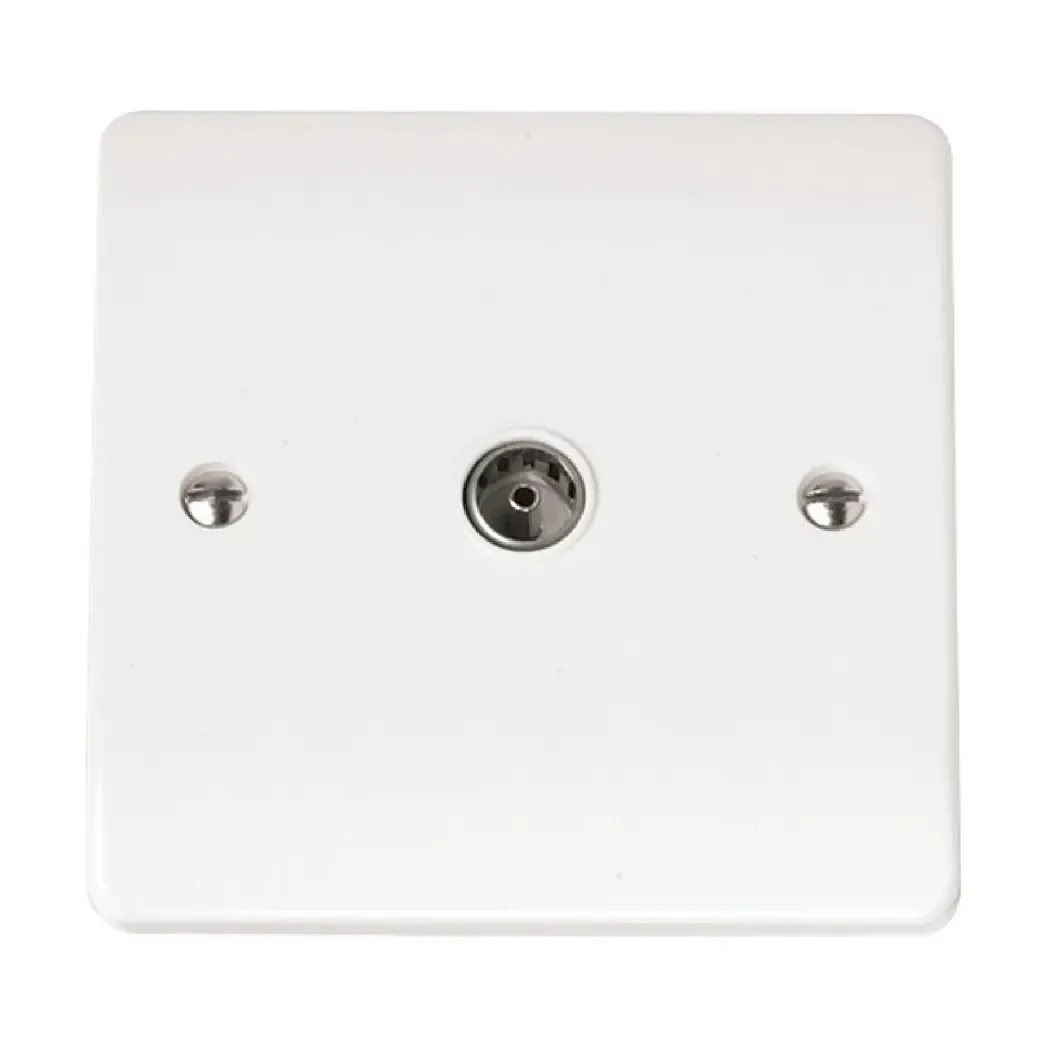

Click Mode CMA065 1G TV Socket Non Isolated - Polar White
1-gang TV socket non-isolated for multi-room distribution systems with 2-way signal transmission capability. 16mm minimal backbox depth requirement makes installation in shallow walls straightforward. Features antimicrobial silver ion coating with 99.9% kill rate within 24 hours. Designed for professional satellite and terrestrial TV installations where signal splitting between rooms is required. Accepts standard coaxial connections with secure captive terminals. 25-year manufacturer warranty provides long-term installation confidence. Complies with BS EN 60669 for domestic switching applications.
Online:
Product Features
| Signal Configuration | 1-gang TV socket non-isolated |
|---|---|
| Signal Transmission | 2-way bidirectional capability |
| Backbox Requirement | 16mm minimal depth |
| Frequency Range | 5-2400MHz terrestrial and satellite |
| Signal Loss | Low insertion loss for multi-room systems |
| Connection Type | Standard coaxial captive terminals |
| Antimicrobial Coating | Silver ion technology 99.9% kill rate |
| Mounting Type | Flush mount 86x86mm faceplate |
| Finish | Polar white UV-resistant |
| Compliance Standard | BS EN 60669 domestic switching |
| Warranty Period | 25-year manufacturer guarantee |
| Brand System | Click Mode professional range |
Professional TV Distribution
Multi-Room Systems
Non-isolated design enables signal distribution to secondary TV points in bedrooms, kitchens, and extensions without signal termination.
Satellite Compatibility
5-2400MHz range supports Sky, Freesat, and European satellite services with low insertion loss for premium picture quality.
Signal Splitting
2-way transmission allows upstream communication for interactive services and downstream signal distribution through building infrastructure.
Installation Specifications
Shallow Backbox
16mm minimal depth suits dry lining, metal stud partitions, and retrofit installations where standard 35mm boxes won't fit.
Captive Terminals
Secure coaxial connections with captive terminal design prevents loose connections and signal degradation over time in professional installations.
Standard Mounting
86x86mm faceplate dimensions compatible with existing switch plates and grid systems for consistent installation appearance.
System Integration
Distribution Networks
Integrates with communal aerial systems, individual satellite dishes, and hybrid terrestrial/satellite installations in residential and commercial properties.
Future Proofing
Wide frequency response accommodates current and future broadcasting standards including 4K, HDR, and next-generation terrestrial services.
Quality Assurance
25-year warranty reflects professional-grade construction and materials suitable for permanent building installations with minimal maintenance requirements.
Frequently Asked Questions
-
What backbox depth required for CMA065 TV socket?
16mm minimal backbox depth required, significantly shallower than standard 35mm sockets, ideal for dry lining installations and shallow wall cavities.
-
Can this socket work with Sky Q and Freesat systems?
Yes, 5-2400MHz frequency range covers terrestrial, satellite, and Sky Q signals. Non-isolated design allows signal splitting for multi-room distribution systems.
-
What's the difference between isolated and non-isolated TV sockets?
Non-isolated sockets allow 2-way signal transmission for distributing TV signals to multiple rooms. Isolated sockets terminate the signal at one point.
-
Does the antimicrobial coating affect signal quality?
No, silver ion antimicrobial coating is applied to faceplate only. Signal path remains unaffected while providing 99.9% bacterial kill rate within 24 hours.
-
Can I connect multiple CMA065 sockets in parallel?
Yes, non-isolated design allows daisy-chaining for multi-room installations. Use appropriate signal splitters to maintain signal strength across all outlets.
-
Does CMA065 meet current wiring regulations?
Yes, complies with BS EN 60669 for domestic switching applications. Suitable for Part P compliant installations when fitted by qualified electricians.
