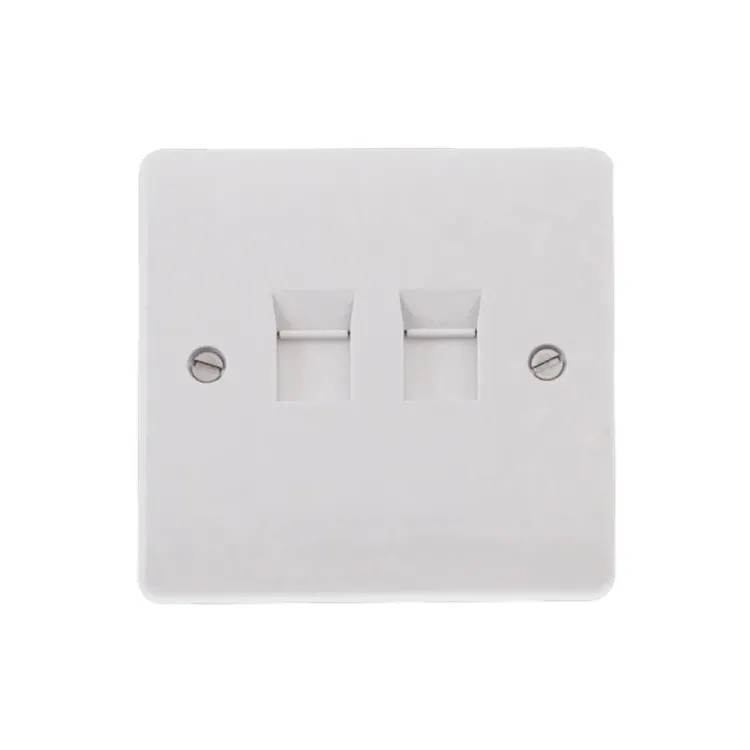

Photo is representative

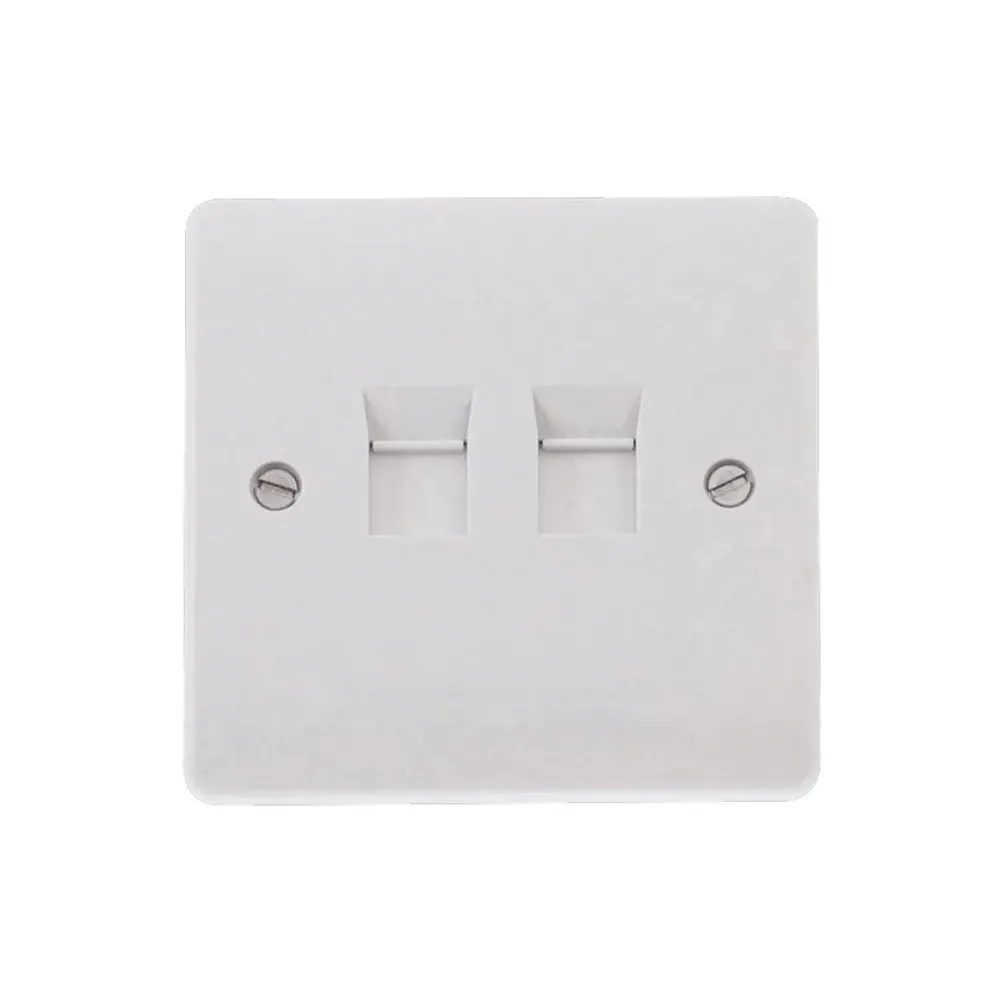

Click Mode CMA132 Cat5e Twin RJ45 Data Socket - White
Cat5e compliant twin RJ45 ethernet outlet for structured cabling installations. IDC punch-down termination system accepts Category 5e cables with unshielded configuration. Requires minimum 16mm backbox depth with standard 86x86mm faceplate mounting. Antimicrobial properties certified to 99.9% bacterial kill rate including MRSA, E-Coli and Salmonella. IP20 rated for internal use with operational temperature range -5°C to +40°C. UKCA marked with 25-year manufacturer warranty. Brass IDC terminals with 60.3mm horizontal fixing centres for reliable network connections in domestic and commercial applications.
Online:
Product Features
| Data Category | Cat5e compliant |
|---|---|
| Configuration | 2-Gang Twin RJ45 outlets |
| Termination Method | IDC punch-down system |
| Terminal Type | Brass IDC terminals |
| Shielding | Unshielded |
| Minimum Backbox Depth | 16mm |
| Plate Dimensions | 86mm x 86mm x 9.5mm |
| Fixing Centres | 60.3mm horizontal |
| IP Rating | IP20 |
| Operating Temperature | -5°C to +40°C |
| Antimicrobial Certification | 99.9% bacterial kill rate |
| Compliance | UKCA marked |
| Warranty | 25 years |
| Finish | Polar White |
Installation Requirements
Backbox Compatibility
Standard 86x86mm faceplate with 16mm minimum depth. Horizontal fixing centres 60.3mm for secure mounting in wall boxes.
Cable Termination
IDC punch-down system with brass terminals. Use standard punch-down tool for Category 5e cable termination maintaining performance standards.
Applications
Office Networks
Structured cabling for workstation connections. Cat5e performance supports 100Mbps ethernet for business networking requirements in commercial installations.
Home Networks
Domestic ethernet outlets for smart TVs, gaming consoles and home office equipment. Provides reliable wired connections for streaming devices.
Security Systems
IP camera and access control connections. Cat5e specification suitable for PoE devices requiring structured cabling in security installations.
Technical Standards
Category Compliance
Category 5e performance standards with unshielded configuration. Maintains data transmission integrity for ethernet networking applications up to specified frequency ranges.
Safety Certification
UKCA marked for UK compliance. Operating temperature -5°C to +40°C with IP20 protection rating for internal dry location installations.
Frequently Asked Questions
-
What backbox depth is required for the CMA132 data socket?
Minimum 16mm backbox depth required. Standard 86x86mm faceplate mounting with 60.3mm horizontal fixing centres for secure installation.
-
Is this socket compatible with Cat6 cabling systems?
Designed for Cat5e cables specifically. For Cat6 performance, use dedicated Cat6 rated outlets to maintain system compliance and performance specifications.
-
How do I terminate cables to the IDC connections?
Use IDC punch-down tool on brass terminals. Maintains Category 5e performance standards with insulation displacement connection system for reliable termination.
-
Can this be used in bathroom or kitchen installations?
IP20 rated for dry internal locations only. Not suitable for bathroom zones or areas with moisture exposure requiring higher IP ratings.
