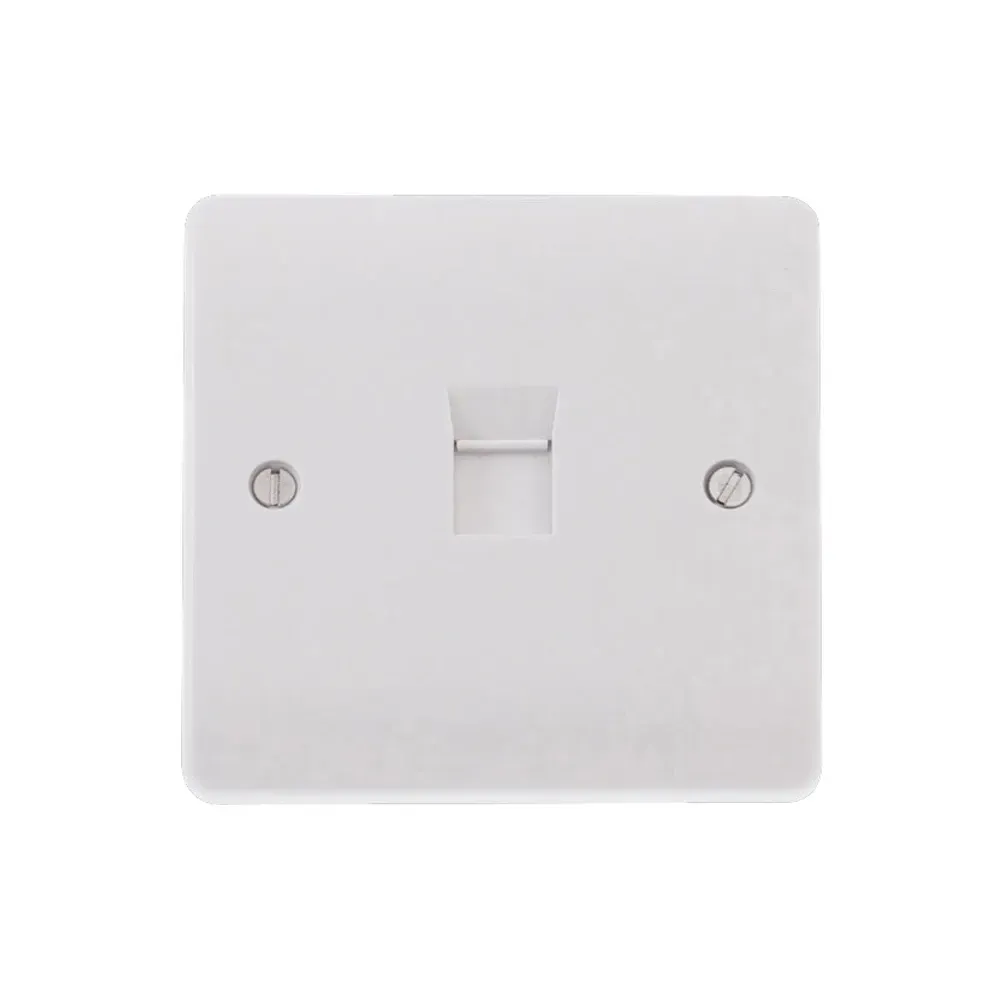

Click Mode 1G CAT5E Data Socket CMA131 - White
1-gang CAT5E data socket outlet with RJ45 connector for Ethernet network installations. Features IDC termination system for structured cabling applications and antimicrobial properties with 99.5% bacterial kill rate. Requires only 16mm backbox depth for flexible installation. Includes 25-year manufacturer warranty for professional confidence. White polar finish coordinates with Click Mode switch ranges. BS EN 50173 compliant for commercial data networks.
Online:
Product Features
| Socket Configuration | 1-gang RJ45 CAT5E data outlet |
|---|---|
| Connection Standard | RJ45 8P8C Ethernet connector |
| Cable Category | CAT5E unshielded twisted pair |
| Termination Method | IDC (Insulation Displacement Connection) |
| Backbox Depth | 16mm minimum requirement |
| Antimicrobial Properties | 99.5% bacterial kill rate within 24 hours |
| Compliance Standard | BS EN 50173 structured cabling |
| Face Plate Dimensions | 86x86mm standard UK format |
| Finish | Polar white thermoplastic |
| Cable Entry | Rear knockout for structured cabling |
| Warranty Period | 25 years manufacturer guarantee |
| Installation System | Click Mode compatible range |
Network Applications
Office Networks
Ethernet connectivity for desktop computers, VoIP phones, and network printers in commercial office environments requiring structured cabling solutions.
Residential Broadband
Fixed network connection points for home offices, media centers, and smart home hubs requiring dedicated Ethernet connections for optimal performance.
Educational Facilities
Classroom and laboratory network outlets with antimicrobial properties suitable for high-use educational environments with frequent user contact.
Installation Specifications
Shallow Mounting
16mm minimum backbox depth allows installation in stud walls, dry lining, and slim profile mounting boxes where standard sockets cannot fit.
IDC Termination
Insulation Displacement Connection system eliminates wire stripping, provides gas-tight connections, and reduces installation time compared to screw terminals.
Cable Management
Rear cable entry with strain relief accommodates standard UTP cables while maintaining bend radius requirements for CAT5E performance specifications.
System Integration
Click Mode Range
Coordinates with Click Mode switches and power outlets for consistent appearance across mixed installation requiring both power and data connectivity.
Patch Panel Connection
Designed for structured cabling systems connecting to 19-inch rack patch panels using T568B wiring standard for commercial network installations.
Future Compatibility
CAT5E specification provides upgrade path for higher speed applications while maintaining backward compatibility with existing 10/100 Mbps network equipment.
Frequently Asked Questions
-
What backbox depth is required for the CMA131 data socket?
The CMA131 requires only 16mm minimum backbox depth, significantly less than standard power sockets, allowing installation in shallow wall cavities and partition walls.
-
Is this socket compatible with CAT6 network cables?
The CMA131 is designed for CAT5E cables. While CAT6 cables may physically connect, optimal performance requires CAT6-rated outlets for guaranteed gigabit Ethernet speeds.
-
How do I terminate cables using the IDC system?
Strip cable outer sheath, separate pairs following T568B wiring standard, insert individual wires into IDC slots, and press down to pierce insulation and create connection.
-
What data transmission speeds does CAT5E support?
CAT5E specification supports 100MHz bandwidth with data rates up to 1000 Mbps (1 Gigabit) over distances up to 100 meters in structured cabling applications.
-
Does the antimicrobial coating affect network performance?
The antimicrobial silver ion treatment is applied to plastic surfaces only and does not contact electrical connections, ensuring no impact on signal integrity or data transmission quality.
-
Is this socket suitable for commercial data network installations?
Yes, the CMA131 meets BS EN 50173 structured cabling standards and carries 25-year warranty, making it appropriate for commercial network infrastructures requiring reliable data connectivity.
