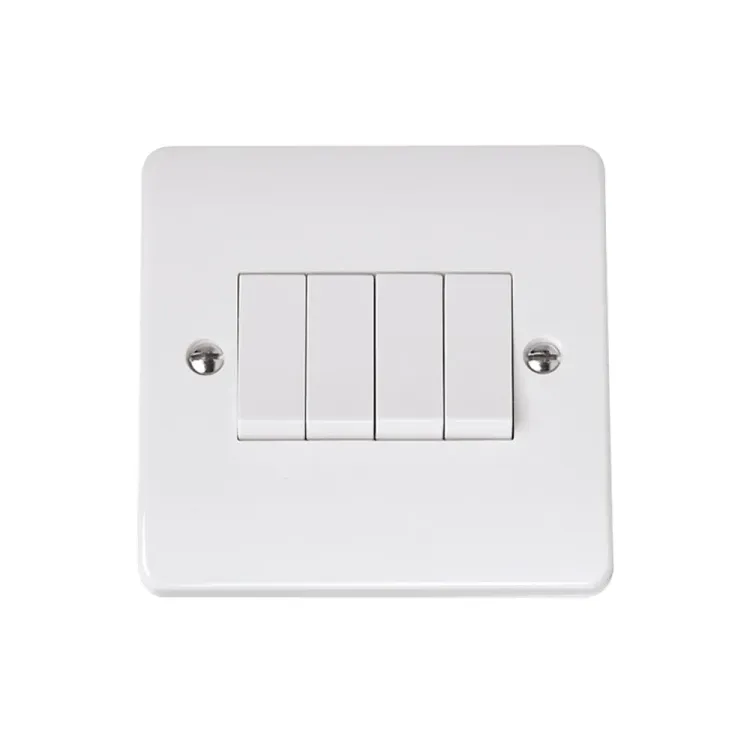

Photo is representative

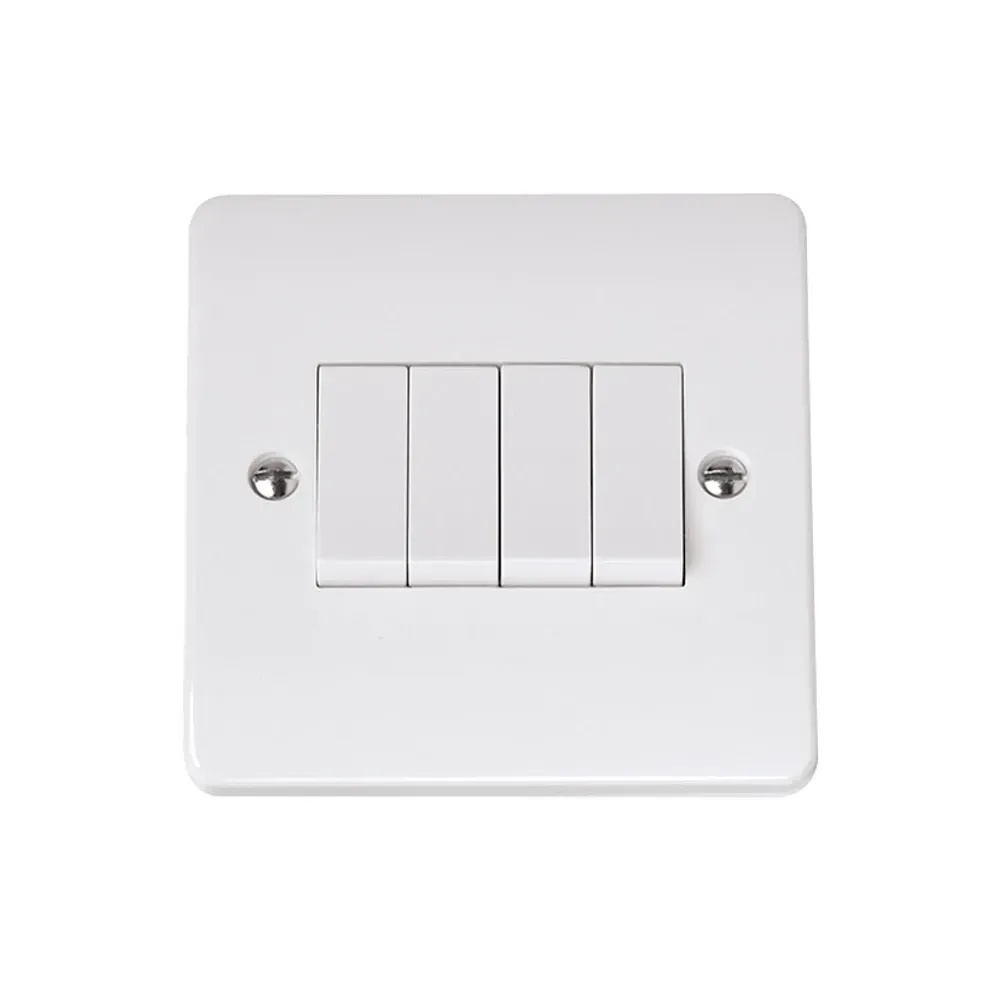

Click CMA9014 10AX 4-Gang 2-Way Switch - White
10AX 4-gang 2-way plate switch for fluorescent and inductive load applications up to 250V AC. Features individual rocker switches with silver overlay copper contacts for reliable switching performance. Screw terminals Ø3.5mm accept 2 x 1.5mm² conductors with 0.5Nm torque specification for secure connections. Requires only 16mm minimum backbox depth making it suitable for shallow installations. BS EN 60669-1 compliant with IP20 rating for standard indoor applications. Antimicrobial silver ion coating provides 99.9% kill rate against MRSA, E-Coli, Salmonella and Klebsiella Pneumoniae for hygiene-critical environments. 25-year warranty demonstrates commercial grade reliability for professional installations. Compact 86x86mm single plate design optimizes wall space while controlling four separate lighting circuits.
Online:
Product Features
| Inductive Load Rating | 10AX suitable for fluorescent circuits |
|---|---|
| Gang Configuration | 4-Gang individual rocker switches |
| Switching Type | 2-Way intermediate switching capability |
| Terminal Type | Screw terminals Ø3.5mm, 0.5Nm torque |
| Cable Capacity | 2 x 1.5mm² solid conductors per terminal |
| Backbox Compatibility | 16mm minimum depth shallow mounting |
| Plate Dimensions | 86mm x 86mm x 9.5mm single plate |
| Contact Type | Silver overlay copper contacts |
| Operating Voltage | 250V AC, 50Hz |
| Compliance Standards | BS EN 60669-1 |
| IP Rating | IP20 indoor applications |
| Antimicrobial Coating | 99.9% bacterial kill rate certified |
| Temperature Range | -5°C to +40°C operational |
| Warranty Period | 25 years commercial grade |
Installation Requirements
Terminal Specifications
Screw terminals Ø3.5mm accept 2 x 1.5mm² solid conductors per switching position. 0.5Nm torque specification ensures secure connections for lighting circuits.
Mounting Compatibility
16mm minimum backbox depth required for shallow installations. 86mm x 86mm x 9.5mm plate dimensions with 60.3mm horizontal fixing centres.
Electrical Connection
Operating voltage 250V AC 50Hz with -5°C to +40°C temperature range. Silver overlay copper contacts provide reliable switching for inductive loads.
Professional Applications
Commercial Lighting
10AX inductive load rating ideal for fluorescent lighting circuits in offices, retail spaces and commercial buildings requiring reliable switching performance.
Multi-Zone Control
4-gang configuration provides independent switching control for different lighting zones from single wall position, optimizing space utilization.
Hygiene-Critical Areas
Antimicrobial coating with 99.9% kill rate against MRSA, E-Coli, Salmonella makes it suitable for healthcare, food service and cleanroom applications.
Frequently Asked Questions
-
What minimum backbox depth is required for the CMA9014 installation?
Requires only 16mm minimum backbox depth, making it suitable for shallow wall installations where space is limited. Standard 25-35mm backboxes provide additional cable management space.
-
Can this switch handle fluorescent lighting loads?
Yes, 10AX inductive load rating specifically designed for fluorescent and other inductive loads up to 250V AC. Silver overlay copper contacts ensure reliable switching of reactive loads.
-
What torque setting should be used for terminal connections?
Terminal screws require 0.5Nm torque for secure connections. Screw terminals Ø3.5mm accept 2 x 1.5mm² solid conductors per switching position.
-
How many lighting circuits can this switch control?
Controls four separate lighting circuits with individual 2-way switching capability. Each gang operates independently allowing different switching combinations.
-
Does the CMA9014 meet commercial installation requirements?
Yes, BS EN 60669-1 compliant with 25-year warranty. Antimicrobial coating provides 99.9% kill rate against bacteria for hygiene-critical commercial applications.
