MD028AB

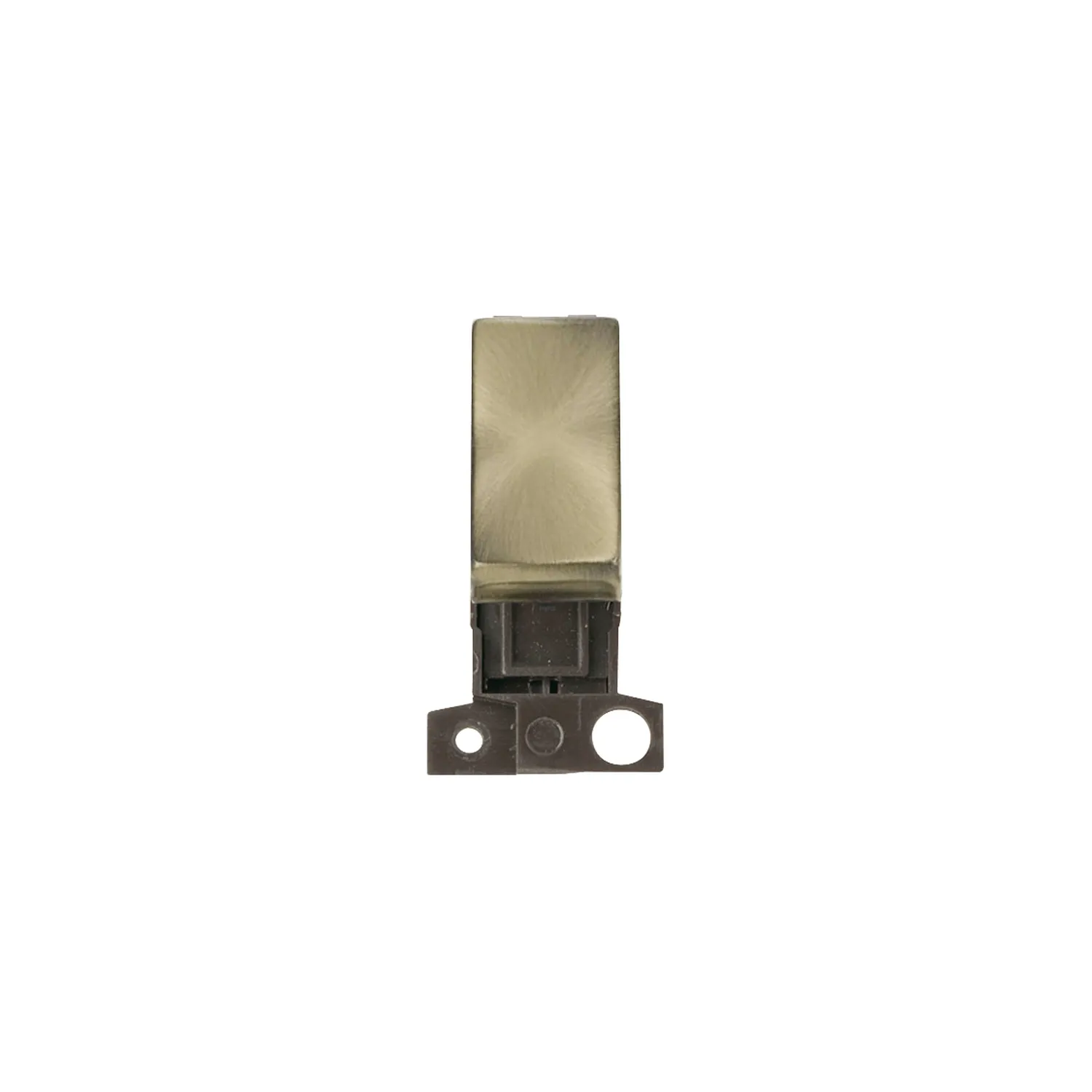

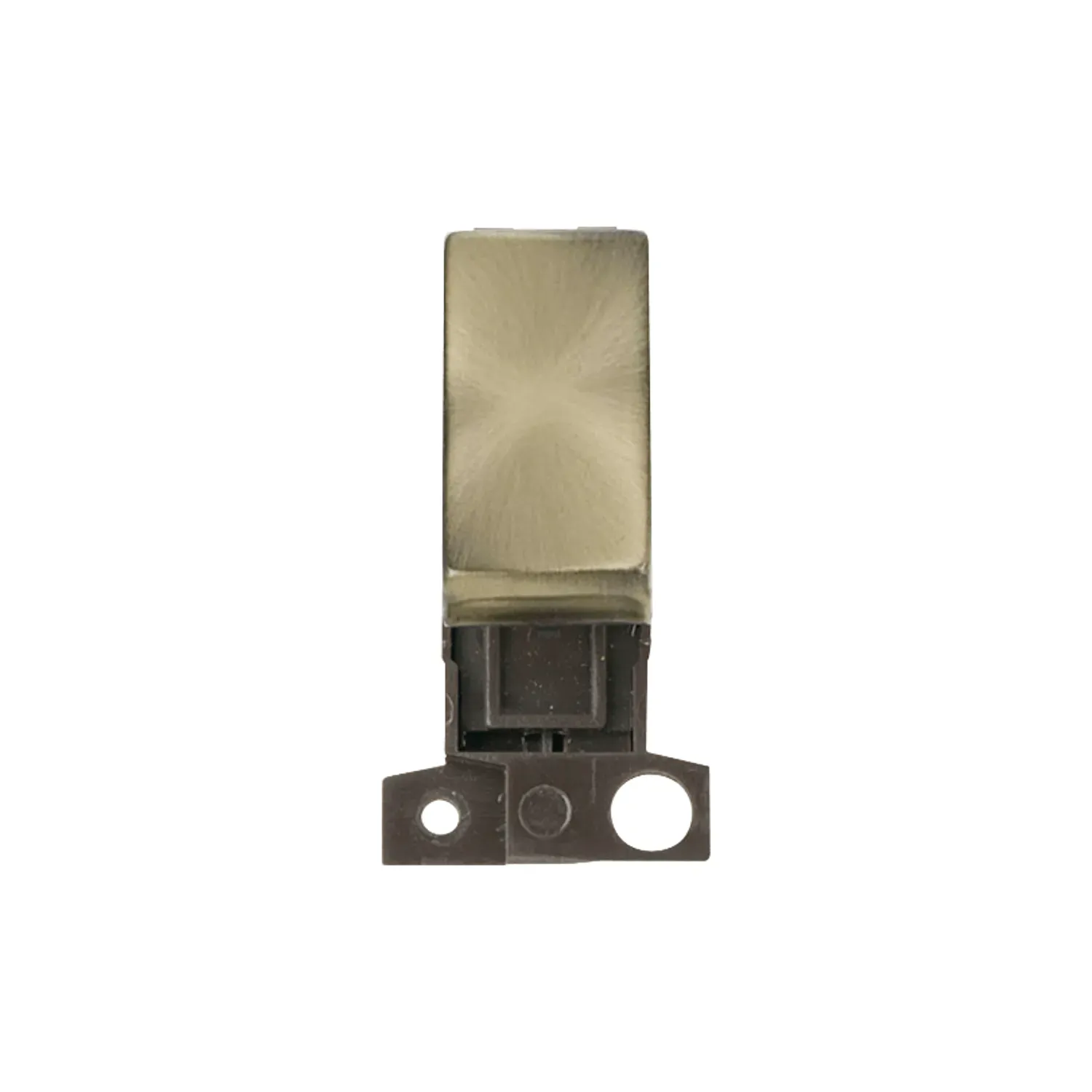

Click MiniGrid 10AX Intermediate Switch Module Antique Brass

Photo is representative

MD028AB
Click MiniGrid 10AX Intermediate Switch Module Antique Brass

Click MiniGrid 10AX Intermediate Switch Module Antique Brass

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MD028AB
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £3.51

Gross price

£4.21

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

10AX intermediate switch module for the Click MiniGrid range. Antique brass finish with stainless steel cover plate.

  • 10AX rated, suitable for fluorescent or inductive loads
  • Screw terminals: 4 × 1.5 mm² or 2 × 2.5 mm² capacity
  • Operating voltage 250V AC, 50 Hz
  • Dimensions: 25 (W) × 53 (H) × 20 (D) mm
Specifications

Product Code

MD028AB

Range

Click MiniGrid

Switch Type

Intermediate Switch

Current Rating

10AX

Operating Voltage

250V AC

Frequency

50 Hz

Load Rating

Suitable for fluorescent or inductive loads

Termination Type

Screw Terminal

Terminal Size

Ø3.5 mm

Terminal Capacity

4 × 1.5 mm² or 2 × 2.5 mm² (solid)

Terminal Torque

0.5 Nm

Operating Temperature

-5 to +40°C

Dimensions

25 (W) × 53 (H) × 20 (D) mm

Minimum Back Box Depth

16 mm (25 mm for flat plate)

Finish

Antique Brass

Standards

BS EN 60669-1

Documents

datasheet MD028AB Datasheet

Frequently asked questions

Will this fit other brand euro plates?

Yes, euro modules follow a standardized 25x50mm format and are interchangeable across all manufacturers including BG, MK, Knightsbridge, and others.

What depth back box do I need?

Minimum 16mm back box depth when using grid plates. If installing with flat plates, you need minimum 25mm depth as specified in the technical data.

What is an intermediate switch used for?

Intermediate switches are used for three-way or multi-point lighting control. Install one intermediate switch between two 2-way switches to control a light from three locations. Use multiple intermediate switches for four or more control points.

What does the 10AX rating mean?

10AX indicates the module is rated for 10 amps on inductive or fluorescent loads at 250V AC. This makes it suitable for switching lighting circuits including fluorescent fittings and LED drivers with inductive components.
