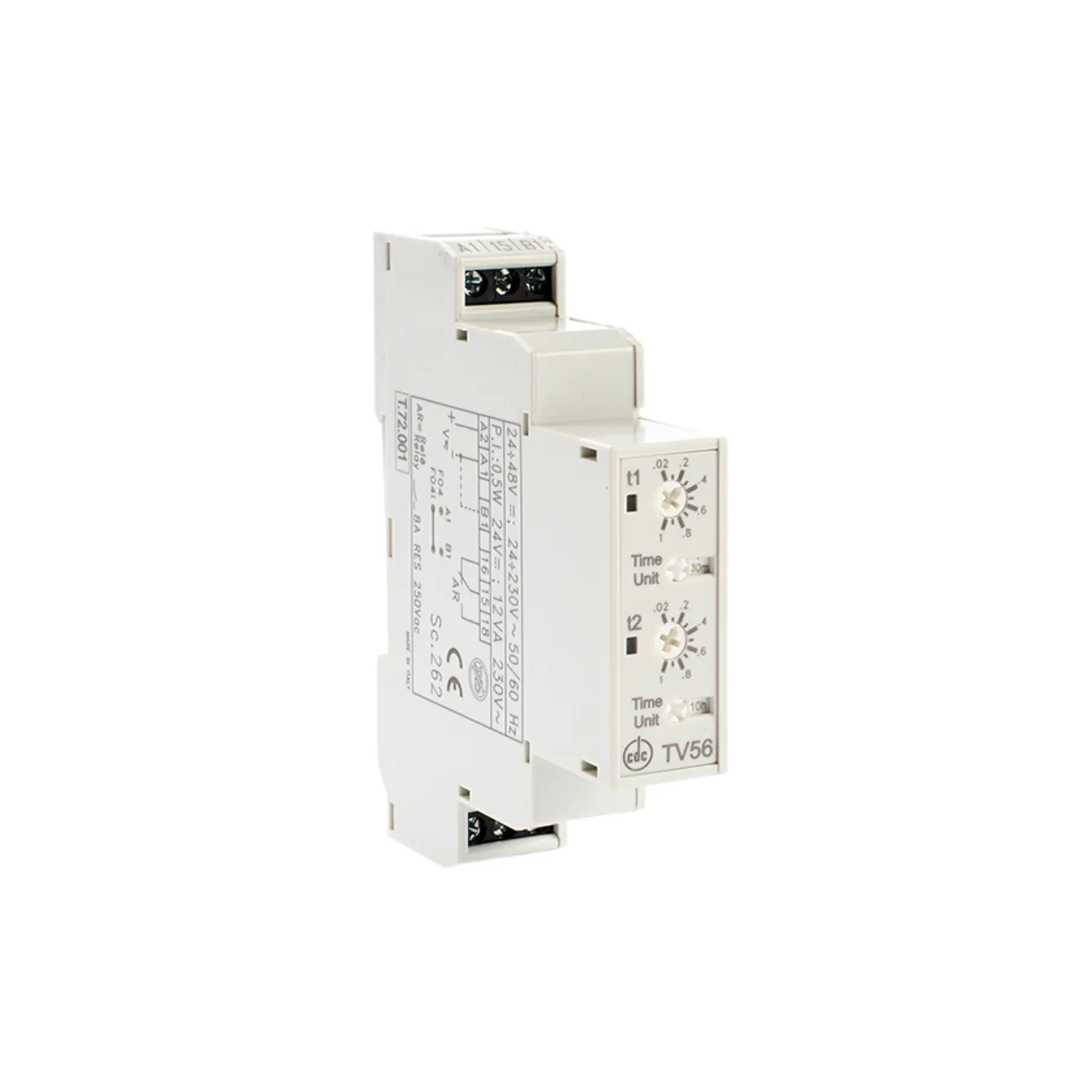

CDC Electronic Timer TV56 Cycle Timer

Photo is representative

CDC TV56 Multirange Multivoltage Cycle Timer 8A AC1 - DIN Rail

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code TV56
GTIN —
Stock status: 7 in stock

priced individually

More arriving soon

Net price: £38.59

Gross price

£46.30

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

CDC TV56 electronic cycle timer provides multirange timing control for industrial applications.

  • Multivoltage supply: 24-48Vdc / 24-230Vac (code 65) or 12Vac/dc (code 12)
  • Two independent time settings via 4 rotary selectors with 10 time ranges from 1s to 10h
  • 8A AC1 relay output at 250Vac with 100,000 electrical operations
  • DIN rail mount (22.5mm width, 90mm height, 71.5mm depth)
  • Operating temperature -10 to +55°C, CE marked
Specifications

Product Type

Electronic Cycle Timer

Supply Voltage

24-48Vdc / 24-230Vac (code 65) or 12Vac/dc (code 12)

Time Ranges

1s, 5s, 10s, 30s, 1min, 5min, 10min, 30min, 1h, 10h

Time Settings

Two independent settings

Relay Output

8A AC1 at 250Vac

Electrical Life

100,000 operations

Mounting

DIN rail

Dimensions

22.5mm width × 90mm height × 71.5mm depth

Operating Temperature

-10 to +55°C

Certification

CE marked

Minimum Time Setting

1/50 full scale

Minimum Reset Time

25ms

Full Scale Error

±1%

Input Power

0.5W @ 24Vdc / 12VA @ 230Vac

Storage Temperature

-25 to +65°C

Functions

Cycle timer (04), Cycle timer inverted (04i)

Documents

datasheet CDC TV56 Cycle Timer Datasheet
