Cat6 4-Pair UTP LSZH Network Cable Purple 305m Reel Eca

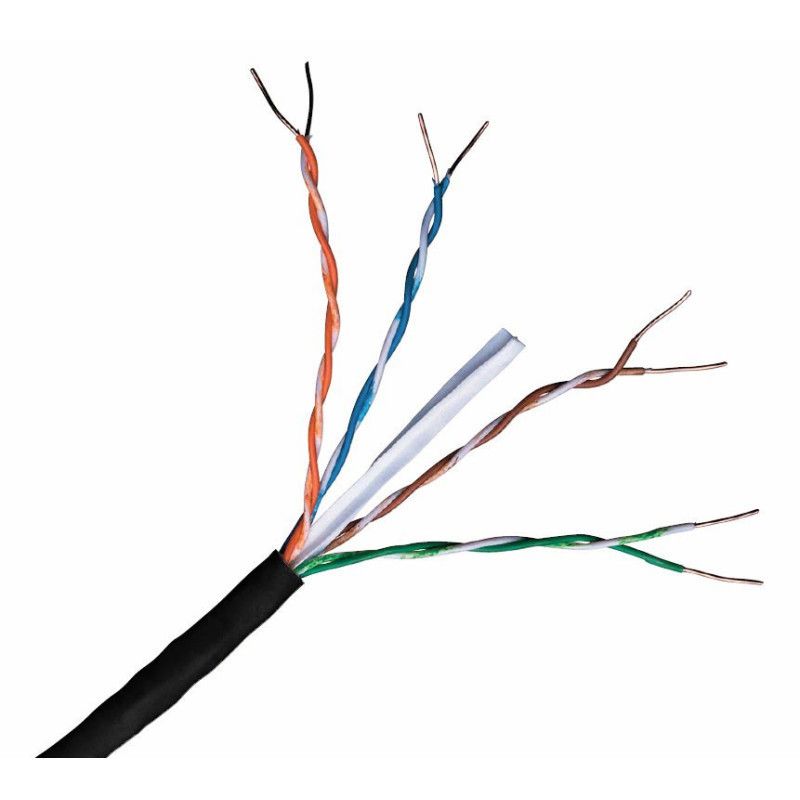

Photo is representative

Cat6 4-Pair UTP LSZH Network Cable Purple 305m Reel Eca

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code CAT6UTP
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £0.49

Gross price

£0.59

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

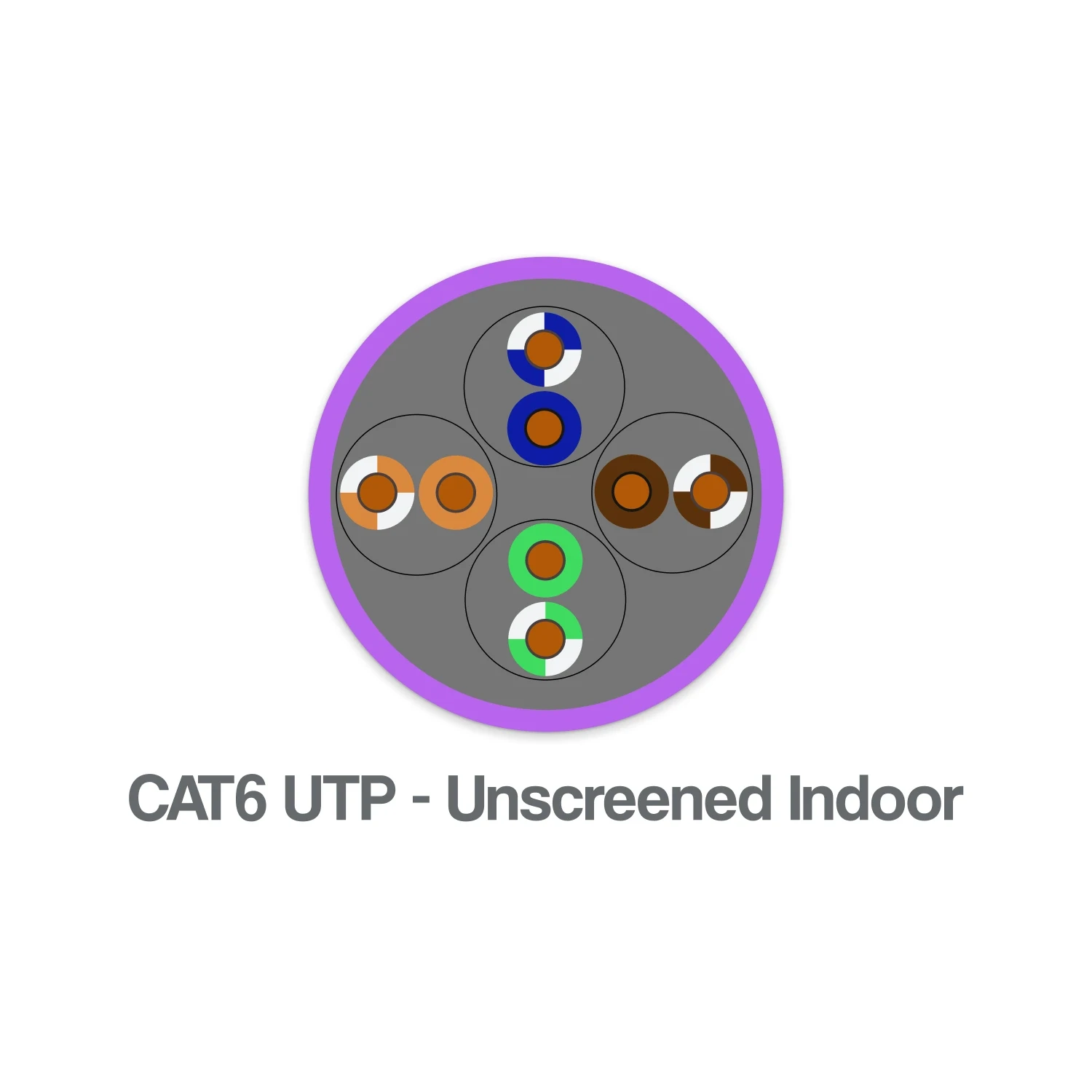

Cat6 UTP solid core on a 305m reel with a purple LSZH jacket (RAL 4005). Suited to building LANs and telecoms installs where LSZH is required. HDBaseT certified and CPR Eca rated.

Max link length is 90m at 1 Gbps. Bare copper conductors with HDPE insulation and a white 210D nylon rip-cord for clean termination.

  • 250 MHz bandwidth, 1 Gbps max transfer
  • CPR Eca, HDBaseT certified
  • LSZH outer jacket, purple RAL 4005
  • Solid core, unscreened (UTP)
  • Rated -40°C to 70°C
Specifications

Cable Type

Cat6 4-pair UTP

Construction

Solid core, unscreened

Max Frequency

250 MHz

Max Transfer Speed

1000 Mbps

Max Distance

90 m

CPR Classification

Eca

Certification

HDBaseT Certified

Conductor Material

Bare Copper

Conductor Diameter

0.53 ±0.01 mm

DC Resistance

<95 Ω/km @ 20°C

Insulation Material

HDPE

Insulation Thickness

0.18 mm

Outer Jacket Material

LSZH

Outer Jacket Colour

Purple RAL 4005

Overall Cable Diameter

6.10 ±0.03 mm

Jacket Thickness

0.55 ±0.03 mm

Temperature Range

-40°C to 70°C

Reel Length

305 m
