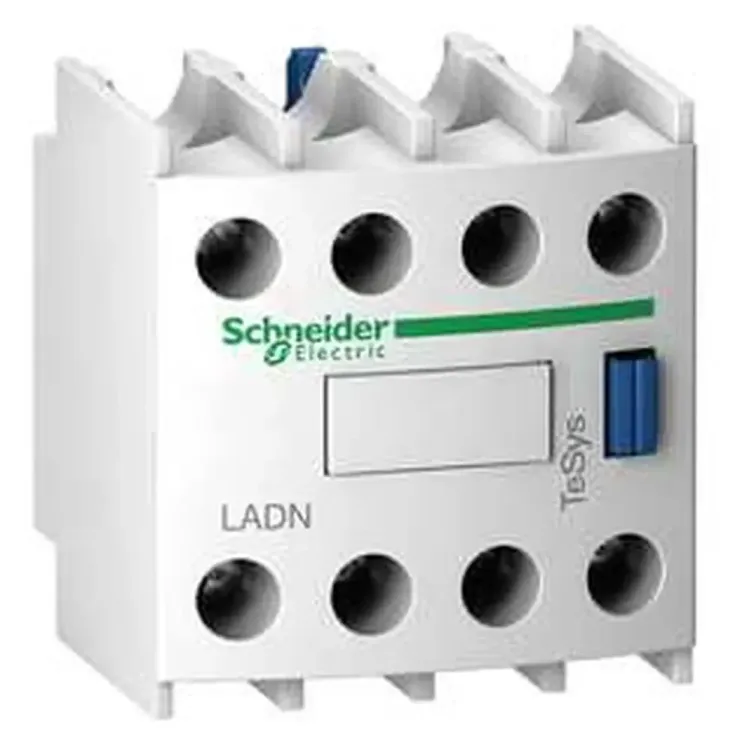

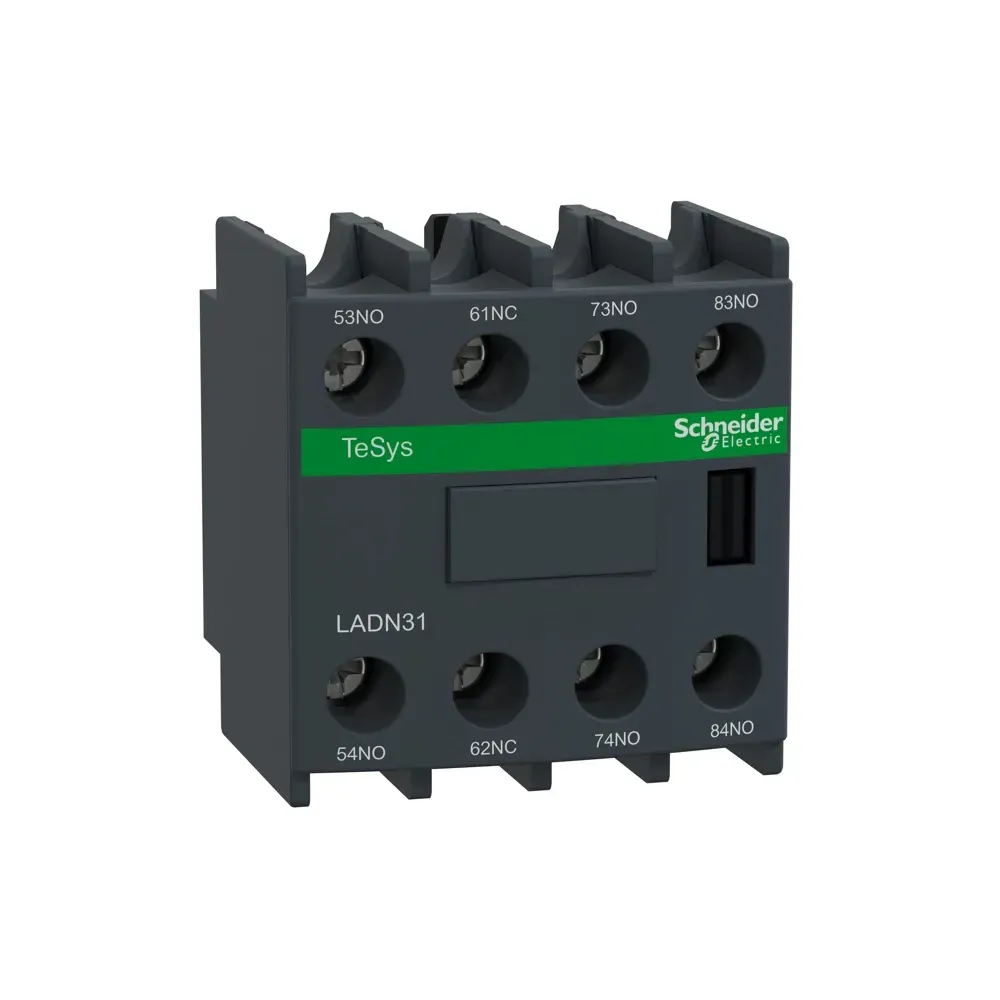

Schneider LADN31 auxiliary contact block 3NO+1NC front view

Photo is representative

Schneider 3NO+1NC Auxiliary Contact Block - LADN31

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LADN31
GTIN —
Stock status: In stock

priced individually

Net price: £19.05

Gross price

£22.86

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Schneider LADN31 is a TeSys Deca auxiliary contact block providing 3 NO + 1 NC instantaneous contacts for auxiliary signaling in control circuits. Designed for front mounting on TeSys D (LC1D, CAD), TeSys F, and compatible contactors, it uses robust screw clamp terminals for secure connections. With a rated operational voltage up to 690V AC, 10A thermal current, and rapid non-overlap switching, LADN31 is ideal for extending control and indication in industrial motor control, panel building, and automation systems. Fully compliant with IEC 60947-5-1 and suitable for PLC inputs.

Specifications

Contact Configuration

3NO + 1NC contacts

Current Rating

10A at 400V AC, 6A at 120V AC-15, 1.04A at 690V AC-15, 0.55A at 125V DC-13

Mounting Method

Front contactor mounting

Terminal Access

Screw clamp terminals, front access

Mechanical Life

30 million operations

Standards Compliance

IEC 60947-5-1, UL, CSA, GB/T 14048.5, EN 50012

Rated Operational Voltage

Up to 690V AC 25...400Hz

Non-overlap Time

1.5 ms on energisation/de-energisation (instantaneous contacts)

Ambient Temperature Range

-5°C to +60°C (operation)

Schneider Electric
