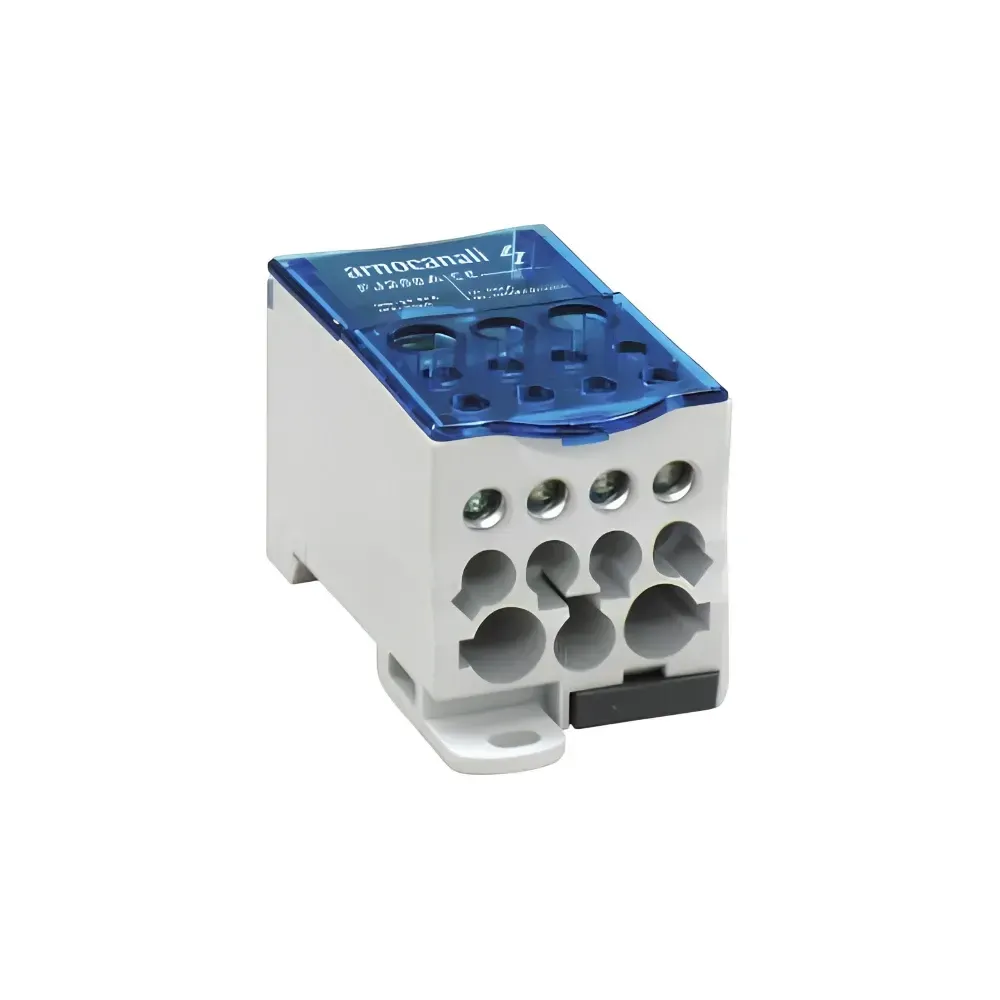

250A DIN-Rail Mounted Distribution Block

Photo is representative

Distribution Block 1 Pole 250A 12 Way DIN Rail Mounted

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code BKB25012
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £26.06

Gross price

£31.27

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single pole distribution block rated at 250A continuous. 12 connection points per pole — one 120mm² input plus a mix of smaller outputs down to 10mm². Suits panel builds where you need to split a main feed into multiple sub-circuits from a single termination point.

Mounts on DIN rail (Omega 3) or fixes direct to plate with screws.

  • Rated current: 250A
  • Ipk: 51kA / Icw: 24.5kA
  • Input: 1 × 120mm², outputs down to 4 × 10mm²
  • Working temp: -5°C to +85°C
  • CE and RoHS compliant, EN 60998-1:2004
Specifications

Rated Current

250 A

Number of Poles

1

Number of Ways

12

Hole Dimensions

1 × Ø15 mm, 2 × Ø9 mm, 5 × Ø7 mm, 4 × Ø6 mm

Max Conductor Size

1 × 120 mm², 2 × 35 mm², 5 × 16 mm², 4 × 10 mm²

Ipk

51 kA

Icw

24.5 kA

Mounting

DIN Omega 3 rail or direct plate fix

Bar Material

Brass

Shell Material

Polyamide/Polycarbonate

Working Temperature

-5°C to +85°C

Heat Resistance

130°C

Dimensions (A × B × C)

46 × 96 × 50 mm

Standards

EN 60998-1:2004, CE, RoHS 2015/863/UE
